Introduction to reports based on SQL
- Install the iReport tool.
- Execute the iReport tool.
OpenKM comes with a specific JasperReports Library engine that supports older versions but not newer ones. In the Application version compatibility table you have a correspondence list between OpenKM and JasperReports Library engine versions.
You can set a specific output version in the iReport tool:
- Click on Tools menu > Options.
- From iReport > General tab, click on Compatibility tab.
- Set the Jasper version compatibility.
- Click on OK button.
Create data source
- Click on the Report data sources button.
- Click on the New button.

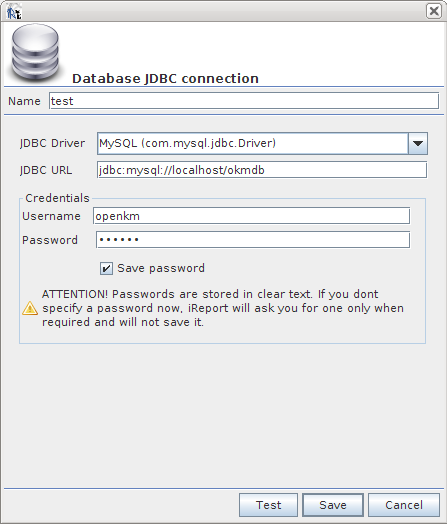

- Choose the "Database JDBC connection" option.
- Click on the Next button.
- Set the name.
- Choose the JDBC driver.
- Click on the Test button to check the connection parameters.
- Click on the Save button.
- Check the Set as default checkbox.
- Click on the Close button.
Testing the SQL sample report
For testing the SQL report sample, you must have OpenKM running.

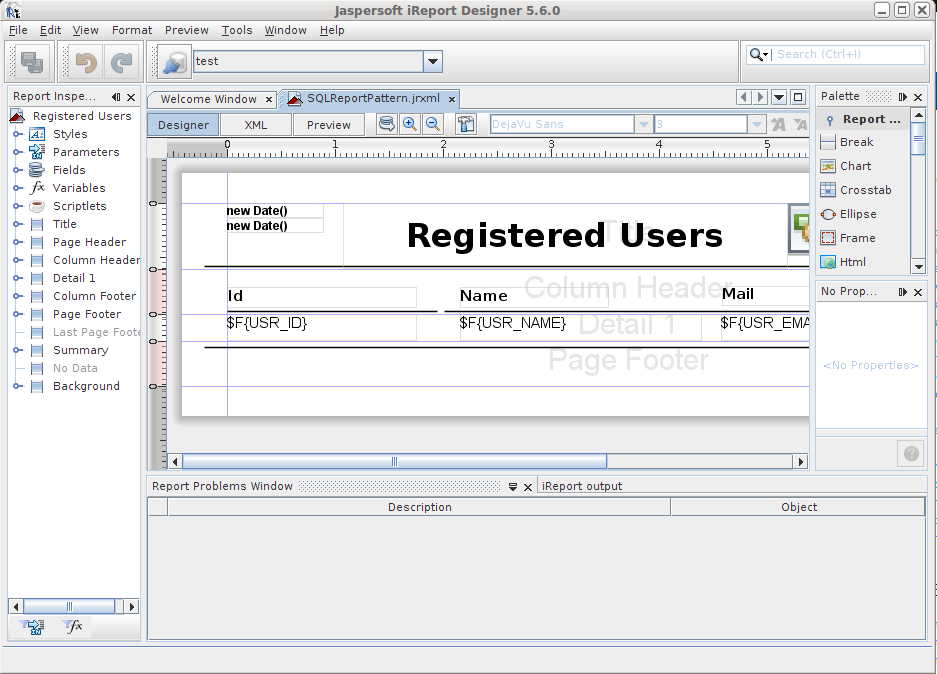

- Download the SQLReportPattern.jrxml file.
- Open the file.
- Click on the Preview tab.
- Set the host value (for example http://localhost:8080/OpenKM).
- Click on the Designer tab.

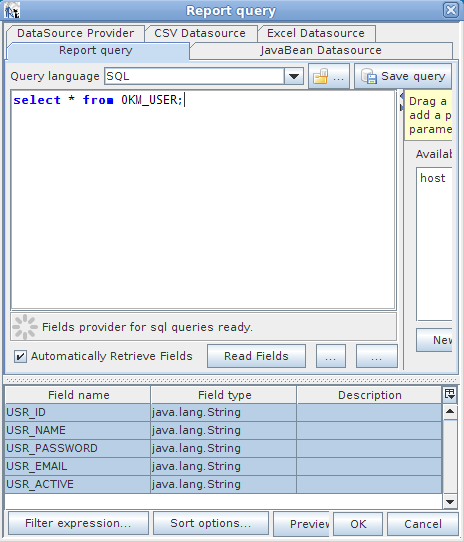

- Click on
the Report query button.
From this point you can add your jrxml file and register it in your OpenKM at Administration > Reports.
A closer look at the JRXML file
The iReport tool creates the Jasper report file in XML format for you.
Although the iReport tool does all the work for you in a friendly user interface, it is a good idea to take a look - at least out of curiosity - at the kind of file being created.
Query section
<queryString>
<![CDATA[select * from OKM_USER;]]>
</queryString>Fields section
<field name="USR_ID" class="java.lang.String"/>
<field name="USR_NAME" class="java.lang.String"/>
<field name="USR_PASSWORD" class="java.lang.String"/>
<field name="USR_EMAIL" class="java.lang.String"/>
<field name="USR_ACTIVE" class="java.lang.String"/>Remote image section
<imageExpression><![CDATA[$P{host}+"/logo/report"]]></imageExpression>Using fields in report
<textField isBlankWhenNull="false">
<reportElement key="textField" x="329" y="0" width="206" height="18" uuid="5e3e2df8-a99b-4ce2-aab9-9adb97bc4dc9"/>
<textElement>
<font fontName="Arial"/>
</textElement>
<textFieldExpression><![CDATA[$F{USR_EMAIL}]]></textFieldExpression>
</textField>
