Creating LibreOffice templates
Advantages of using LibreOffice templates:
- Can produce an ODT file.
- Less time is required to create the document.
Disadvantages in comparison with Text templates:
- They produce larger documents.
- More difficulty maintaining the templates over time.
Preliminaries
Register the Metadata group definition at Administration > Metadata.
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE property-groups PUBLIC "-//OpenKM//DTD Property Groups 3.10//EN"
"http://www.openkm.com/dtd/property-groups-3.10.dtd">
<property-groups>
<property-group label="Sample Template" name="okg:tpl">
<input label="Name" name="okp:tpl.name"/>
<input label="Birth Date" name="okp:tpl.birth_date" type="date" />
<select label="Language" name="okp:tpl.language" type="simple">
<option label="Java" value="java"/>
<option label="Python" value="python"/>
<option label="PHP" value="php" />
</select>
</property-group>
</property-groups>In order to make a relation between the template form field and the property group, you have to name them following a naming convention: replace ":" and "." with "_". Here you can see the matching between the two fields:
| Metadata field name | Template field name | Template field value |
|---|---|---|
|
okp:tpl.name |
okp_tpl_name |
${okp_tpl_name!} |
|
okp:tpl.birth_date |
okp_tpl_birth_date |
${okp_tpl_birth_date!} |
|
okp:tpl.language |
okp_tpl_language |
${okp_tpl_language!} |
Creating the template
The field that will be replaced with the value of a variable passed can be specified using the standard FreeMarker expression notation by typing the variable name into the document as plain text as follows:

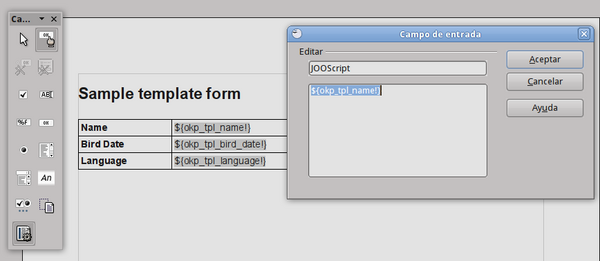

Hi ${name}!However, mixing processing instructions and normal text into the document may become confusing and clutter the layout. So JODReports provides an alternative way of inserting fields. You can insert a visual field in LibreOffice Writer from the menu Insert / Fields / Other... (or just press Ctrl+F2), then click on the Functions tab and select Input field. Change the field Reference to JOOScript. In the Content field, enter the variable name (e.g. "$name"). This field will typically be displayed by Writer as a grayed rectangle with the variable name, and moving the mouse over it will reveal the field reference.
Do not use View > Toolbars > Form Controls to add the fields (Text Box, Check Box, etc.). Those insert real ODF form controls, which JODReports does not read or fill ? the field will remain empty in the generated document regardless of the metadata group values provided. Only plain FreeMarker ${...} text or JODReports Input fields (Reference JOOScript) are substituted.
This is the LibreOffice document used in this sample tpl.odt.
Read about LibreOffice templates at JODReports.
Date format
JODReports uses FreeMarker internally, so you can take advantage of FreeMarker's formatting flexibility. For example, you can set date formats in this way:
${okp_tpl_birth_date?string("yyyy-MM-dd")}If the date may be null, then you need to check this (in the case of ODT templates you should use #if between "[" and "]"):
[#if okp_tpl_birth_date??]${okp_tpl_birth_date?string("yyyy-MM-dd")}[/#if]Learn more about FreeMarker formatting at Built-in Reference.
A bare placeholder for a date field (e.g. ${okp_tpl_birth_date}, with no ?string/?date/?datetime) fails with Can't convert the date-like value to string because it isn't known if it's a date (no time part), time or date-time value, since OpenKM passes date properties to the template as a plain, untyped java.util.Date. Always use ?string(...) for formatted output, or append ?date if you just need the raw value with no formatting (e.g. ${okp_tpl_birth_date?date}).
Dynamic tables
You can even use the template feature to generate dynamic tables. Let's see an example.

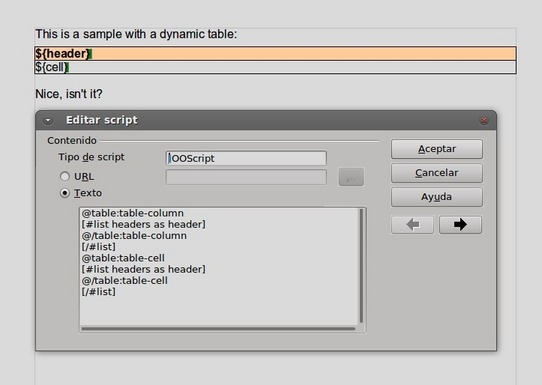

In the screenshot you can see a document with a table. The header has a colored background and is also bold. The script shows the options to generate the table headers.
This is the LibreOffice document used in this sample: dynamic_table.odt
Learn more about this feature at:
