Database description

Overview

The OKMFlow workflow engine uses a relational database to store all workflow-related information. The database schema is organized into two distinct sections:

• Definition Tables: Store the structure and configuration of workflow processes, including nodes, transitions, and their properties
• Execution Tables: Store runtime information about workflow instances, task assignments, process variables, and execution history

This document focuses on the definition tables that describe workflow structure. These tables define the blueprints for workflows that will be executed by the engine.

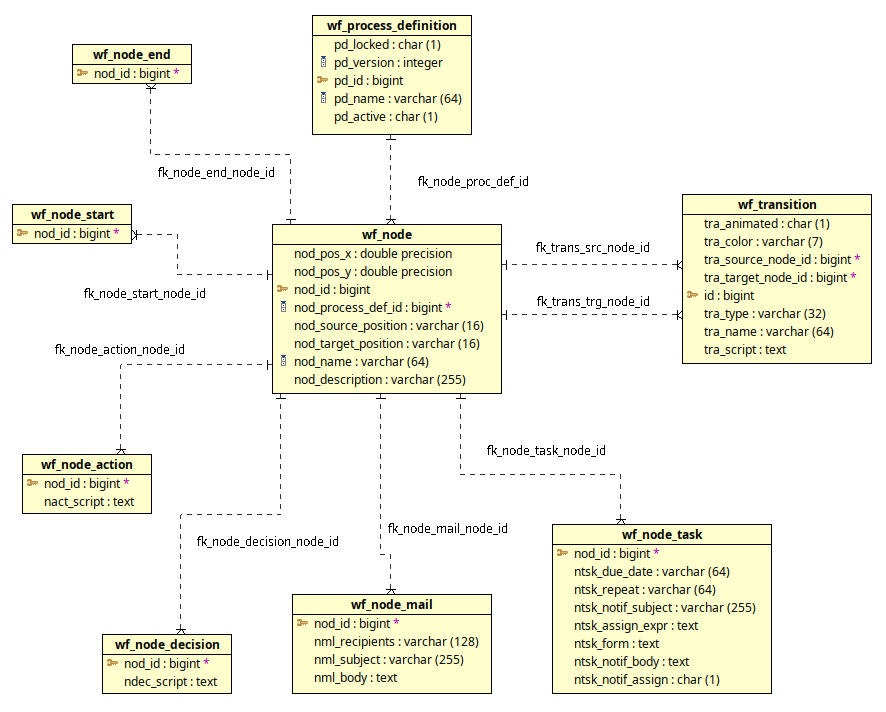

Database Process Definition Schema Structure

The definition tables are organized hierarchically with WF_PROCESS_DEFINITION as the root entity. Each process definition contains multiple nodes (WF_NODE) and transitions (WF_TRANSITION) that define the workflow structure. Nodes use inheritance to specialize behavior, while transitions connect nodes to create the workflow execution path.

Definition Tables Overview

The following tables store workflow definition information:

 Database Relationships

The definition tables form a hierarchical structure with the following key relationships:

• WF_PROCESS_DEFINITION → WF_NODE: One-to-many relationship. Each process definition contains multiple nodes that define the workflow structure.
• WF_NODE → Specialized Node Tables: JOINED inheritance relationship. Each node type (Start, End, Action, Decision, Mail, Task) extends the base WF_NODE table through a foreign key join.
• WF_NODE → WF_TRANSITION (source): One-to-many relationship. A node can have multiple outgoing transitions.
• WF_NODE → WF_TRANSITION (target): One-to-many relationship. A node can have multiple incoming transitions.

Querying Definition Tables

List All Active Process Definitions

SELECT PD_ID, PD_NAME, PD_VERSION, PD_ACTIVE FROM WF_PROCESS_DEFINITION WHERE PD_ACTIVE = 'T' ORDER BY PD_NAME, PD_VERSION;

Find All Nodes in a Specific Process

SELECT n.NOD_ID, n.NOD_NAME, n.NOD_POS_X, n.NOD_POS_Y FROM WF_NODE n INNER JOIN WF_PROCESS_DEFINITION p ON n.NOD_PROCESS_DEF_ID = p.PD_ID WHERE p.PD_NAME = 'document_approval' ORDER BY n.NOD_NAME;

List All Task Nodes with Notification Settings

SELECT n.NOD_ID, n.NOD_NAME, t.NTSK_NOTIF_ASSIGN, t.NTSK_NOTIF_SUBJECT FROM WF_NODE n INNER JOIN WF_NODE_TASK t ON n.NOD_ID = t.NOD_ID WHERE t.NTSK_NOTIF_ASSIGN = 'T';

Find Transitions Between Specific Nodes

SELECT t.ID, t.TRA_NAME, t.TRA_TYPE, ns.NOD_NAME AS SOURCE_NODE, nt.NOD_NAME AS TARGET_NODE FROM WF_TRANSITION t INNER JOIN WF_NODE ns ON t.TRA_SOURCE_NODE_ID = ns.NOD_ID INNER JOIN WF_NODE nt ON t.TRA_TARGET_NODE_ID = nt.NOD_ID;

Count Nodes by Type in a Process

-- Count Start nodes
SELECT COUNT(*) AS START_NODES FROM WF_NODE n INNER JOIN WF_NODE_START s ON n.NOD_ID = s.NOD_ID WHERE n.NOD_PROCESS_DEF_ID = 1;

-- Count Task nodes
SELECT COUNT(*) AS TASK_NODES FROM WF_NODE n INNER JOIN WF_NODE_TASK t ON n.NOD_ID = t.NOD_ID WHERE n.NOD_PROCESS_DEF_ID = 1;

-- Count Decision nodes
SELECT COUNT(*) AS DECISION_NODES FROM WF_NODE n INNER JOIN WF_NODE_DECISION d ON n.NOD_ID = d.NOD_ID WHERE n.NOD_PROCESS_DEF_ID = 1

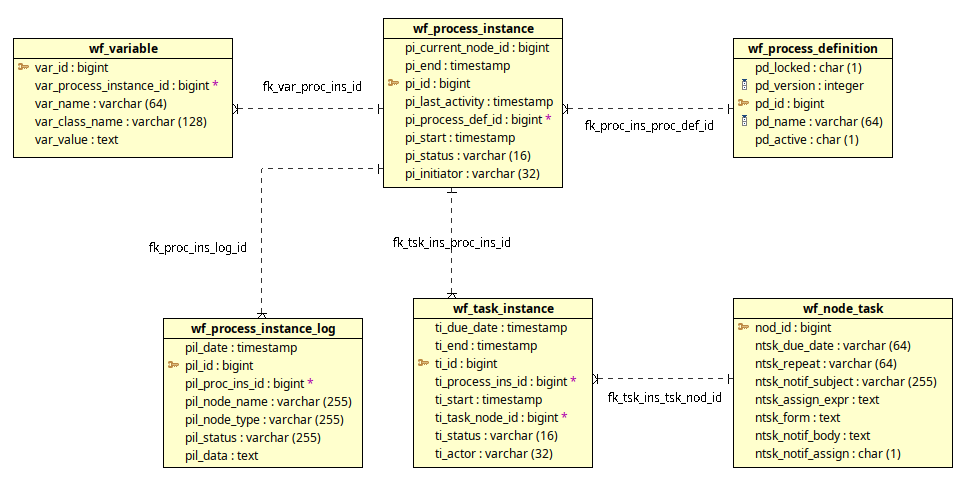

Database Process Execution Schema Structure

The execution tables track the runtime state of workflow instances as they execute. These tables capture process instances, task assignments, variables, and execution history, forming a complete audit trail of workflow execution.

Execution Tables Overview

The following tables store workflow execution information:

 Database Relationships

The execution tables form a runtime structure centered around process instances:

• WF_PROCESS_INSTANCE → WF_PROCESS_DEFINITION: Many-to-one relationship. Each process instance is created from a specific process definition version.
• WF_PROCESS_INSTANCE → WF_NODE: Many-to-one relationship. Tracks the current node where the workflow execution is positioned.
• WF_PROCESS_INSTANCE → WF_TASK_INSTANCE: One-to-many relationship. A process instance generates multiple task instances as it executes.
• WF_PROCESS_INSTANCE → WF_VARIABLE: One-to-many relationship. Each process instance maintains its own set of variables.
• WF_PROCESS_INSTANCE → WF_PROCESS_INSTANCE_LOG: One-to-many relationship. Process execution generates multiple log entries tracking its history.
• WF_TASK_INSTANCE → WF_NODE_TASK: Many-to-one relationship. Each task instance is created from a task node definition.

Querying Execution Tables

Find Running Process Instances

SELECT pi.PI_ID, pd.PD_NAME, pi.PI_STATUS, pi.PI_INITIATOR, pi.PI_START FROM WF_PROCESS_INSTANCE pi INNER JOIN WF_PROCESS_DEFINITION pd ON pi.PI_PROCESS_DEF_ID = pd.PD_ID WHERE pi.PI_STATUS = 'running' ORDER BY pi.PI_START DESC;

Find All Tasks Assigned to a User

SELECT ti.TI_ID, ti.TI_STATUS, ti.TI_DUE_DATE, pi.PI_ID AS PROCESS_ID, pd.PD_NAME AS PROCESS_NAME FROM WF_TASK_INSTANCE ti INNER JOIN WF_PROCESS_INSTANCE pi ON ti.TI_PROCESS_INS_ID = pi.PI_ID INNER JOIN WF_PROCESS_DEFINITION pd ON pi.PI_PROCESS_DEF_ID = pd.PD_ID WHERE ti.TI_ACTOR = 'jsmith' AND ti.TI_STATUS IN ('open', 'assigned') ORDER BY ti.TI_DUE_DATE;

List Process Variables for an Instance

SELECT VAR_NAME, VAR_CLASS_NAME, VAR_VALUE FROM WF_VARIABLE WHERE VAR_PROCESS_INSTANCE_ID = 123 ORDER BY VAR_NAME;

View Execution History for a Process Instance

SELECT PIL_DATE, PIL_NODE_TYPE, PIL_NODE_NAME, PIL_STATUS, PIL_DATA FROM WF_PROCESS_INSTANCE_LOG WHERE PIL_PROC_INS_ID = 123 ORDER BY PIL_DATE ASC;
