Bonita Workflow connector 1.0

Compatibility

Bonita Workflow connector 1.0 should be used from OpenKM version 6.2.x Professional & 6.3.x community.

Download

Download Bonita-OpenKM-Connectors-1.0.zip.

Samples

The connector can be tested

with some samples available at Bonita-OpenKM-Connectors-Samples-1.0.zip.

  • openkm-diagram-cancelCheckoutDocument-1.0.bos
  • openkm-diagram-checkinDocument-1.0.bos
  • openkm-diagram-checkoutDocument-1.0.bos
  • openkm-diagram-createFolder-1.0.bos
  • openkm-diagram-deleteDocument-1.0.bos
  • openkm-diagram-deleteFolder-1.0.bos
  • openkm-diagram-downloadDocument-1.0.bos
  • openkm-diagram-downloadDocumentByVersion-1.0.bos
  • openkm-diagram-uploadDocument-1.0.bos

Source code

Source code available at github bonita-connector-openkm.

How to configure OpenKM Connectors

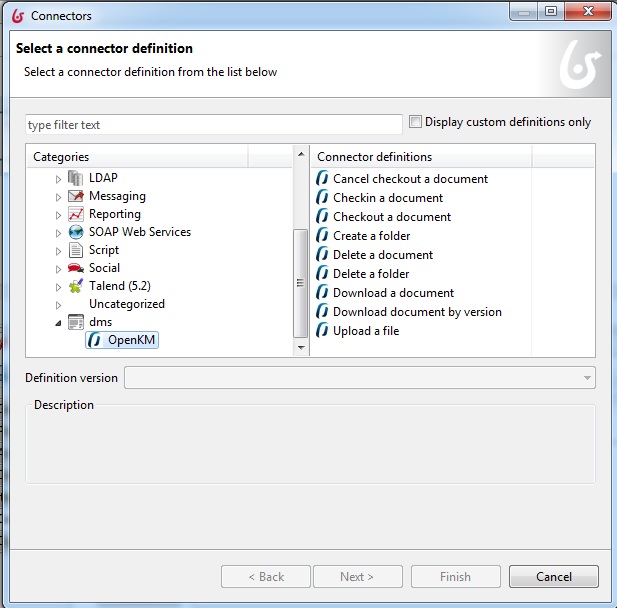

Go to OpenKM in the connectors list. Select a connector. Click on Next.

Connectors definition

Upload a document

Inputs.

Enter the following input parameters to upload a document.

InputTypeDescription

Host

String

IP address or name of OpenKM directory host server.

Username

String

OpenKM user name.

Password

String

OpenKM password.

File to upload

String

Document attachment.

Destination path

String

Path in OpenKM.

Configure the server information and click on next.

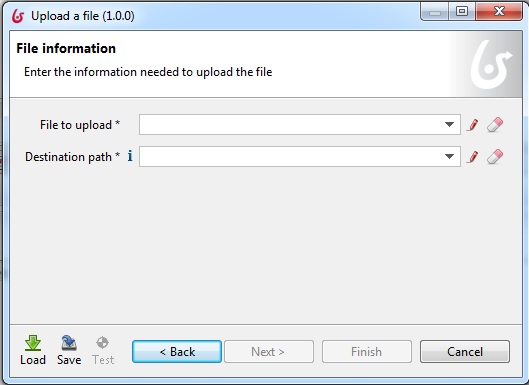

Configure the document information and click on next.

Outputs

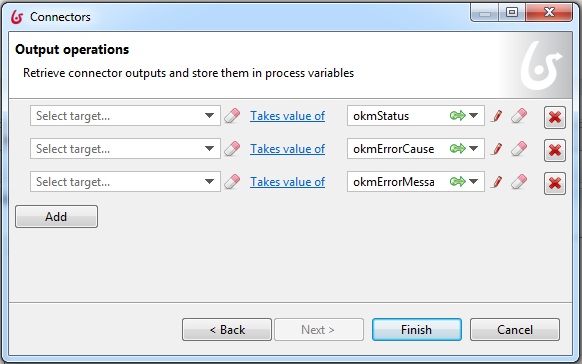

Map the output of this connector to a variable in the process. Click on Finish.

OutputTypeDescription

okmStatus

Bool

Response status.

okmErrorCause

String

Response error cause.

okmErrorMessage

String

Response error message.

Download document

Inputs

Enter the following input parameters to upload a document.

InputTypeDescription

Host

String

IP address or name of OpenKM directory host server.

Username

String

OpenKM user name.

Password

String

OpenKM password.

Document to download

String

Document path in OpenKM.

Destination path

String

Output path.

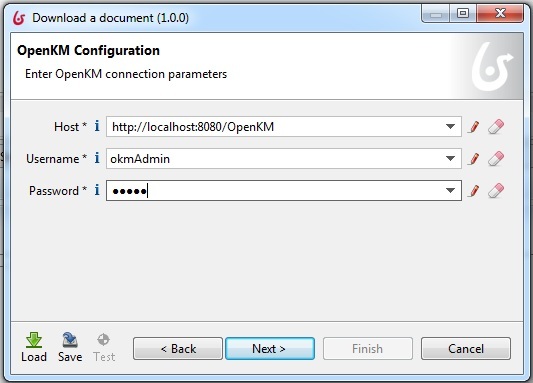

Configure the server information and click on Next.

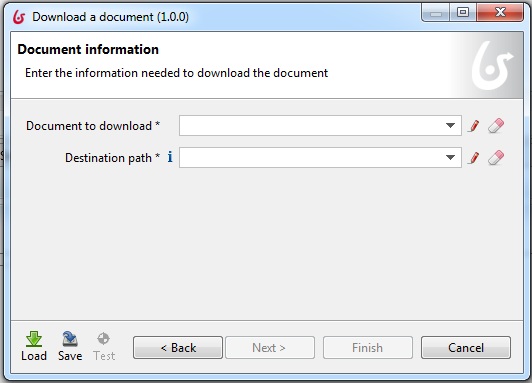

Configure the document information and click on Next.

Outputs

Map the output of this connector to a variable in the process. Click on Finish.

OutputTypeDescription

okmStatus

Bool

Response status.

okmErrorCause

String

Response error cause.

okmErrorMessage

String

Response error message.

Download document by version

Inputs

Enter the following input parameters to upload a document.

InputTypeDescription

Host

String

IP address or name of OpenKM directory host server.

Username

String

OpenKM user name.

Password

String

OpenKM password.

Document to download

String

Document path in OpenKM.

Version of document

String

Version of document

Destination path

String

Output path.

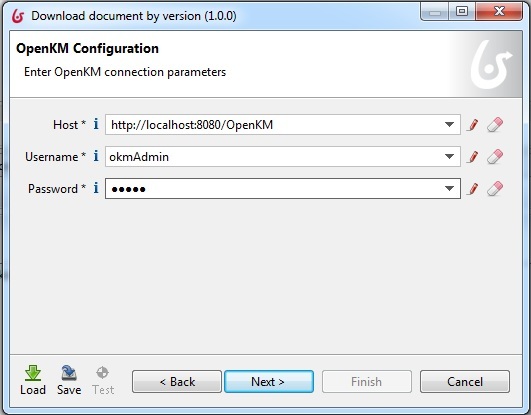

Configure the server information and click on Next.

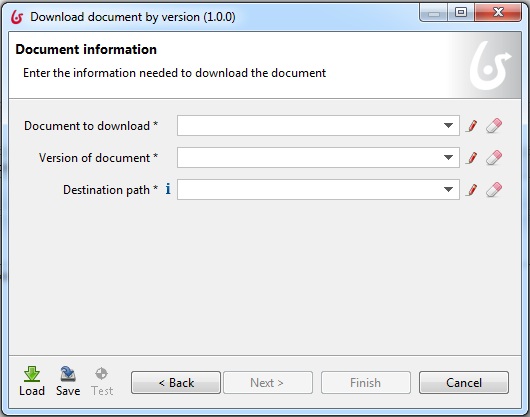

Configure the document information and click on Next.

Outputs

Map the output of this connector to a variable in the process. Click on Finish.

OutputTypeDescription

okmStatus

Bool

Response status.

okmErrorCause

String

Response error cause.

okmErrorMessage

String

Response error message.

Delete a document

Inputs

Enter the following input parameters.

InputTypeDescription

Host

String

IP address or name of OpenKM directory host server.

Username

String

OpenKM user name.

Password

String

OpenKM password.

Document to delete

String

Document path in OpenKM.

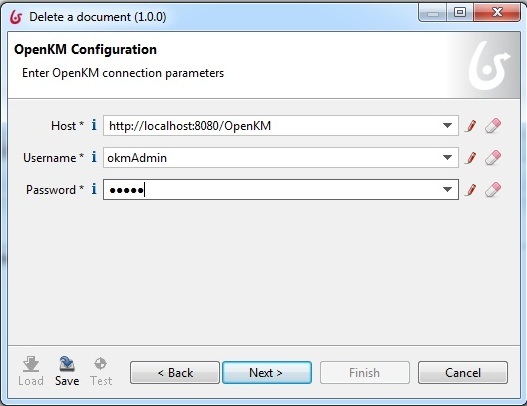

Configure the server information and click on Next.

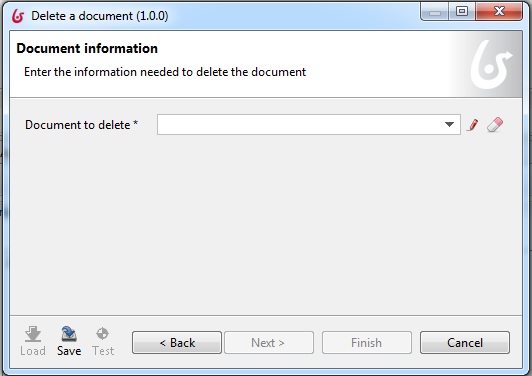

Configure the document information and click on Next.

Outputs

Map the output of this connector to a variable in the process. Click on Finish.

OutputTypeDescription

okmStatus

Bool

Response status.

okmErrorCause

String

Response error cause.

okmErrorMessage

String

Response error message.

Checkout document

Inputs

Enter the following input parameters.

InputTypeDescription

Host

String

IP address or name of OpenKM directory host server.

Username

String

OpenKM user name.

Password

String

OpenKM password.

Document to checkout

String

Document path in OpenKM.

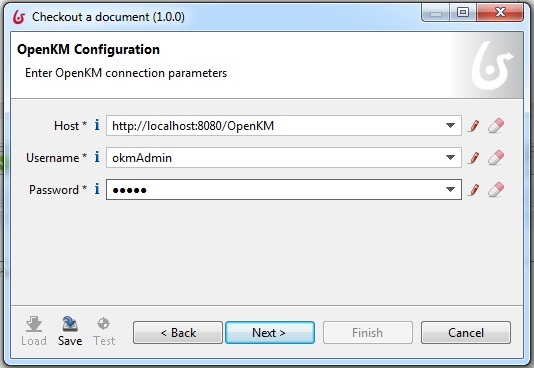

Configure the server information and click on Next.

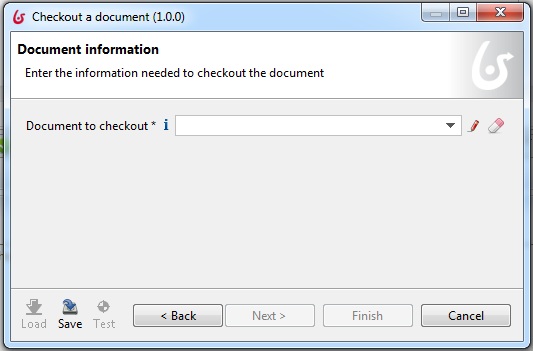

Configure the document information and click on Next.

Outputs

Maps the output of this connector to a variable in the process. Click on Finish.

OutputTypeDescription

okmStatus

Bool

Response status.

okmErrorCause

String

Response error cause.

okmErrorMessage

String

Response error message.

Cancel checkout document

Inputs

Enter the following input parameters.

InputTypeDescription

Host

String

IP address or name of OpenKM directory host server.

Username

String

OpenKM user name.

Password

String

OpenKM password.

Document to cancel checkout

String

Document path in OpenKM.

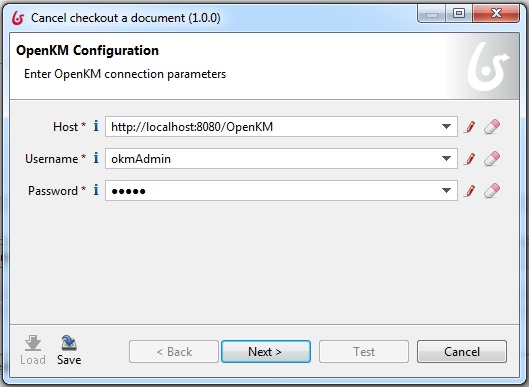

Configure the server information and click on Next.

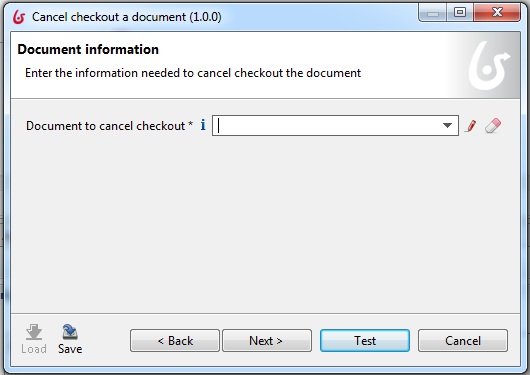

Configures the document information and click on Next.

Outputs

Map the output of this connector to a variable in the process. Click on Finish.

OutputTypeDescription

okmStatus

Bool

Response status.

okmErrorCause

String

Response error cause.

okmErrorMessage

String

Response error message.

Checkin a document

Inputs

Enter the following input parameters.

InputTypeDescription

Host

String

IP address or name of OpenKM directory host server.

Username

String

OpenKM user name.

Password

String

OpenKM password.

Document to cancel checkout

String

Document path in OpenKM.

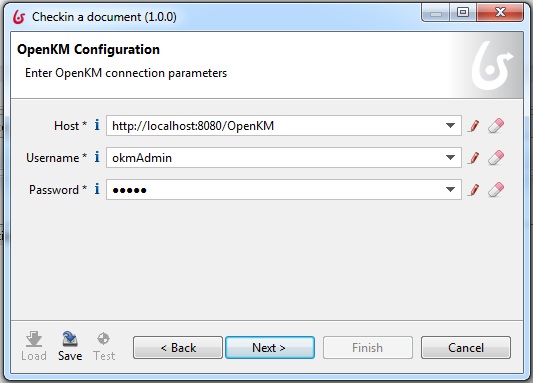

Configure the server information and click on Next.

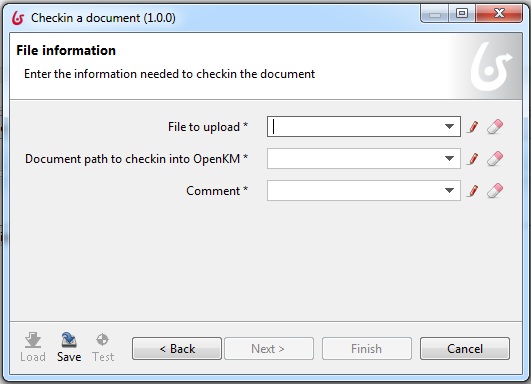

Configures the document information and click on Next.

Outputs

Map the output of this connector to a variable in the process. Click on Finish.

OutputTypeDescription

okmStatus

Bool

Response status.

okmErrorCause

String

Response error cause.

okmErrorMessage

String

Response error message.

Create folder

Inputs

Enter the following input parameters.

InputTypeDescription

Host

String

IP address or name of OpenKM directory host server.

Username

String

OpenKM user name.

Password

String

OpenKM password.

Destination path

String

Destination path in OpenKM

Folder to create

String

Folder name

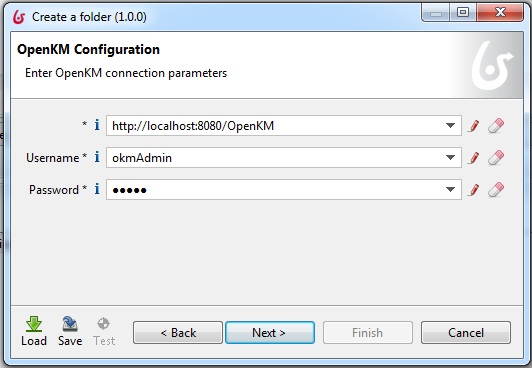

Configure the server information and click on Next.

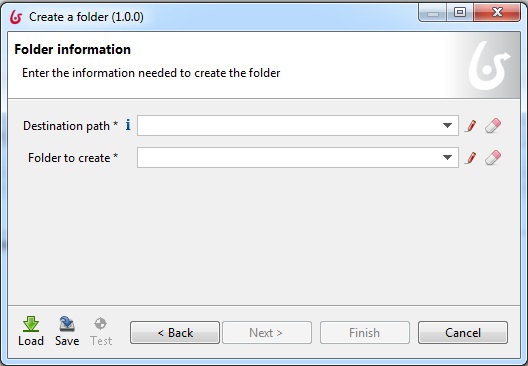

Configure the folder information and click on Next.

Outputs

Map the output of this connector to a variable in the process. Click on Finish.

OutputTypeDescription

okmStatus

Bool

Response status.

okmErrorCause

String

Response error cause.

okmErrorMessage

String

Response error message.

Delete folder

Inputs

Enter the following input parameters.

InputTypeDescription

Host

String

IP address or name of OpenKM directory host server.

Username

String

OpenKM user name.

Password

String

OpenKM password.

Fodler to delete

String

Folder path in OpenKM.

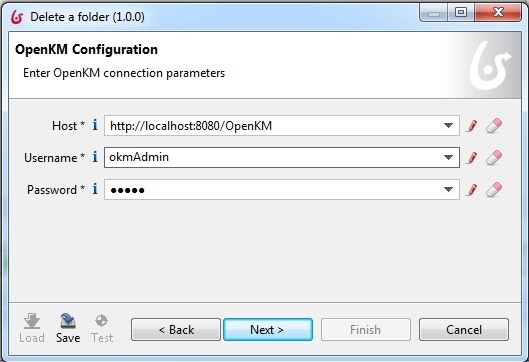

Configure the server information and click on Next.

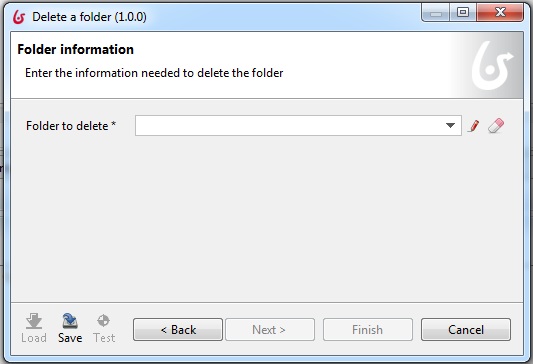

Configure the folder information and click on Next.

Outputs

Map the output of this connector to a variable in the process. Click on Finish.

OutputTypeDescription

okmStatus

Bool

Response status.

okmErrorCause

String

Response error cause.

okmErrorMessage

String

Response error message.
