Configuring SQL Server

Database creation

Create a database and user

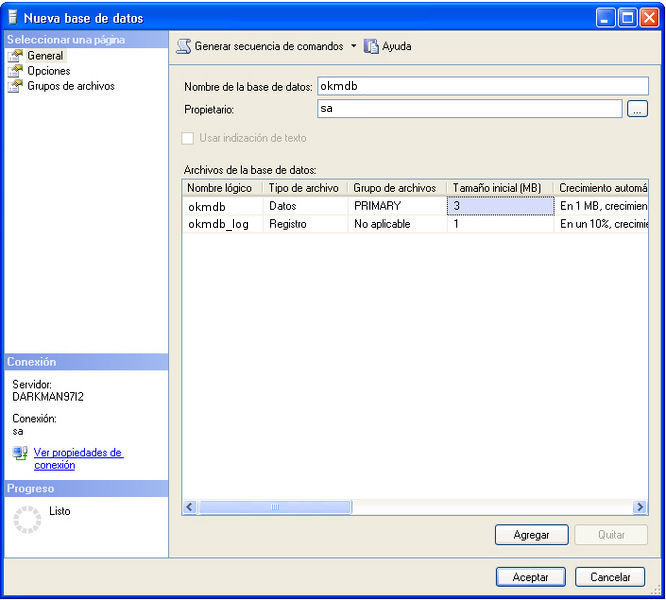

Start SQL Server Management Studio Express and create a database called okmdb.

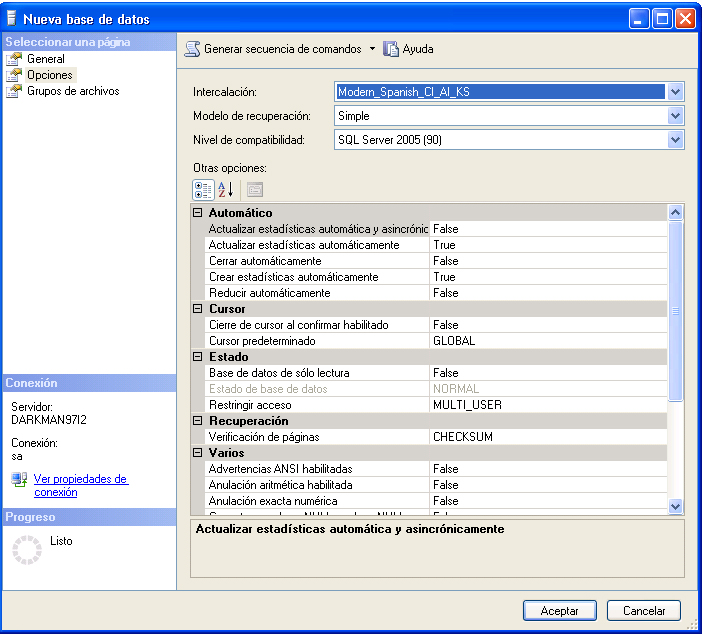

Select the appropriate database collation.

Configure your openkm.properties

Edit the file $TOMCAT_HOME/openkm.properties

spring.jpa.hibernate.ddl-auto=create-only
spring.jpa.properties.hibernate.dialect=com.openkm.db.dialect.SQLServerDialect

Configure Tomcat data sources

Edit the file $TOMCAT_HOME/openkm.properties and enable the resources

spring.datasource.driver-class-name=com.microsoft.sqlserver.jdbc.SQLServerDriver
spring.datasource.url=jdbc:sqlserver://localhost:1433;databaseName=okmdb
spring.datasource.username=openkm
spring.datasource.password=*secret*
spring.datasource.validationQuery=SELECT 1

Configure application login

Edit the file $TOMCAT_HOME/openkm.xml

authentication.openkm.database=true

Run application

During OpenKM startup, the application will automatically create an empty database structure.

Configure integrated security

You must add the "integratedSecurity=true" parameter to the JDBC connection URL to enable Integrated Security. For example:

spring.datasource.driver-class-name=com.microsoft.sqlserver.jdbc.SQLServerDriver
spring.datasource.url=jdbc:sqlserver://localhost:1433;databaseName=okmdb;autoReconnect=true;integratedSecurity=true
spring.datasource.username=
spring.datasource.password=

You must also download the driver package from https://go.microsoft.com/fwlink/?linkid=2122434 and copy the sqljdbc_auth.dll file to the TOMCAT_HOME/bin folder.

More info at:

• Microsoft SQL Server documentation

Troubleshooting

Can't connect to SQL Server

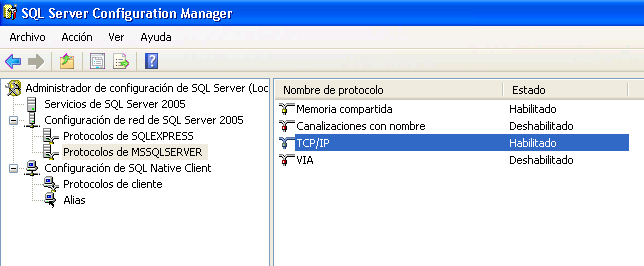

Ensure you have the TCP protocol enabled (it is disabled by default).

The connection was lost after some time.

We have observed in some SQL Server editions what seems to be new behavior whereby, after some hours, the connection is closed (it might be an extra configuration parameter in the latest SQL Server editions that is enabled by default or similar). There is a new configuration attribute named autoReconnect that solves this.

spring.datasource.driver-class-name=com.microsoft.sqlserver.jdbc.SQLServerDriver
spring.datasource.url=jdbc:sqlserver://localhost:1433;databaseName=okmdb;autoReconnect=true
spring.datasource.username=openkm
spring.datasource.password=*secret*
spring.datasource.validationQuery=SELECT 1

Not able to log in to OpenKM

When the first-time OpenKM login fails with the correct username and password (okmAdmin / admin), you should check the database configuration.

Check whether the database is configured to be case-sensitive; it might be one reason you cannot log in.

Unable to connect via TCP/IP to localhost SQL, port 1433, when using an instance in the JDBC connection URL

If you use the database instance name in the connection, you must use "\\" in the spring.datasource.URL configuration parameter. The sample below uses a database instance named SampleSQL.

spring.datasource.url=jdbc:sqlserver://localhost\\SampleSQL;databaseName=okmdb;autoReconnect=true

Deadlock issues

These errors appear in the log this way:

Modify the database to avoid these issues:

ALTER DATABASE okmdb SET READ_COMMITTED_SNAPSHOT ON WITH ROLLBACK IMMEDIATE

 Source How to Solve Database Deadlock on Microsoft SQL Server.

SSL connection error

If you see this error:

The problem can be fixed by adding the "encrypt=false" parameter to the JDBC URL:

This is due to a change in the latest version of the SQL Server Java JDBC driver.

More info at:

• Understanding encryption support
• Connecting with encryption

The driver could not establish a secure connection to SQL Server by using Secure Sockets Layer (SSL) encryption

That may happen when the SQL Server only allows SSL connections.

 The problem can be fixed by adding the "encrypt=true" and "trustServerCertificate=true" parameters to the JDBC URL:

Alter SQL Server compatibility level

To set SQL Server compatibility level to 2012

ALTER DATABASE okmdb SET COMPATIBILITY_LEVEL = 110;
