Configuring SQL Server

Database creation

Create a database and user

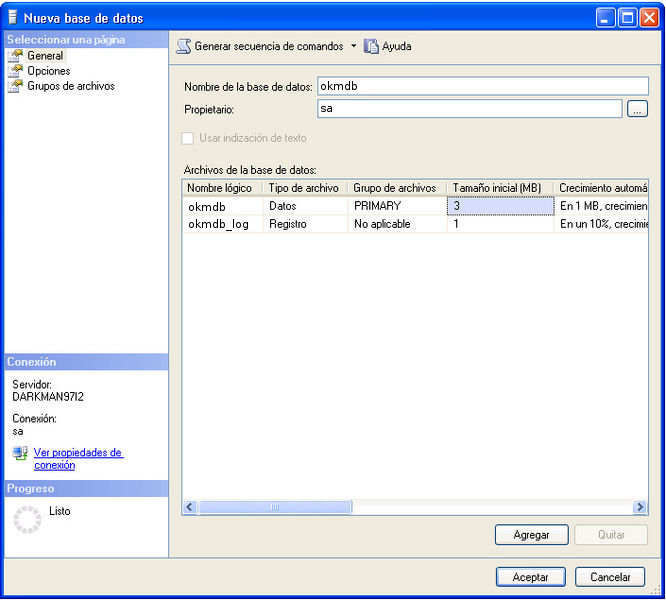

Start SQL Server Management Studio Express and create a database called okmdb.

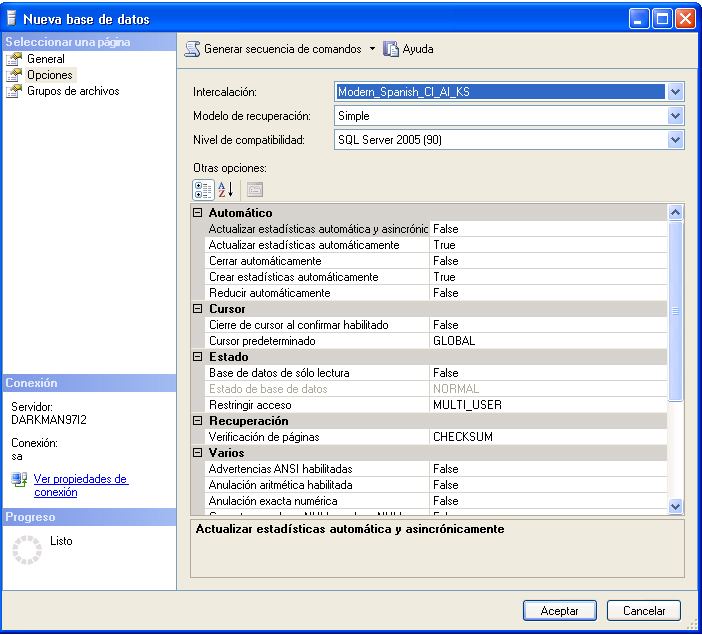

Select your appropriate database collate.

We checked with Modern_Spanish_CI_AI_KS, where CI indicate case-insensitive collation and AS indicate accent-sensitive collation.

If you're not sure about your collation could also try with SQL_Latin1_General_CP1_CI_AS.

Configure your OpenKM.cfg

This configuration property should be set before the database creation. Once the database has been initialized don't modify it because can damage your installation.

If your OpenKM installation has been already configured with another database you can't switch to another database simply changing this property.

Edit the file $TOMCAT_HOME/OpenKM.cfg

hibernate.dialect=org.hibernate.dialect.SQLServerDialect
hibernate.hbm2ddl=create

Configure Tomcat data sources

Edit the file $TOMCAT_HOME/conf/server.xml and enable the resource named jdbc/OpenKMDS

<Resource name="jdbc/OpenKMDS" auth="Container" type="javax.sql.DataSource"
          maxActive="100" maxIdle="30" maxWait="10000" validationQuery="select 1"
          username="sa" password="***" driverClassName="com.microsoft.sqlserver.jdbc.SQLServerDriver"
          url="jdbc:sqlserver://localhost:1433;databaseName=okmdb"/>

Configure the attributes values named:

  • userName.
  • password.
  • URL ( change to your hosts and port ).

Can be only one resource named jdbc/OpenKMDS.

Configure application login

Edit the file $TOMCAT_HOME/OpenKM.xml

<security:authentication-manager alias="authenticationManager">
  <security:authentication-provider>
    <security:password-encoder hash="md5"/>
    <security:jdbc-user-service
        data-source-ref="dataSource"
        users-by-username-query="select usr_id, usr_password, 1 from OKM_USER where usr_id=? and usr_active='T'"
        authorities-by-username-query="select ur_user, ur_role from OKM_USER_ROLE where ur_user=?"/>
  </security:authentication-provider>
</security:authentication-manager>

Check for JDBC Driver

Go to $TOMCAT_HOME/lib and check for JDBC sqljdbc4.jar Driver.

If it is not present, download SQL Server JDBC driver from Microsoft SQL Server Driver Page and move it.

The driver numeration version could be distinct due to some version upgrade.



Other JDBC driver for MS SQL Server we've tested is jdts.



Run application

As a process into the OpenKM startup, the application will create automatically an empty database structure.

Once the tables are created, OpenKM will automatically change the hibernate.hbm2ddl property from create to none.

Troubleshooting

You can not connect to MS SQL Server

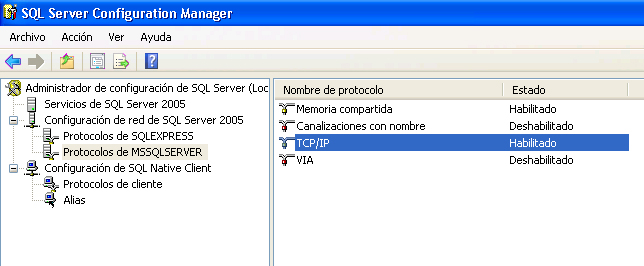

Ensure you've got TCP protocol enabled ( by default is disabled )

Connection lost after some time

We have observed in some SQL Server editions what seems a new behaviour what passed some hours the connection is closed ( might be some extra configuration parameter in the latest SQL server editions what comes enabled by default or similar ). There's a new configuration attribute name autoReconnect what solves it.

<Resource name="jdbc/OpenKMDS" auth="Container" type="javax.sql.DataSource"
          maxActive="100" maxIdle="30" maxWait="10000" validationQuery="select 1"
          username="sa" password="***" driverClassName="com.microsoft.sqlserver.jdbc.SQLServerDriver"
          url="jdbc:sqlserver://localhost\SQL;databaseName=okmdb;autoReconnect=true"/>

Not able to login into OpenKM

When first-time OpenKM login it fails with right username and password ( okmAdmin / admin ), you should check database configuration.

Check if the database is configured to be case-sensitive, might be one of the reasons why you are not able to login.

If you have this troubleshooting, you should to drop the database and create again selecting the collation as case-insensitive.
