Installing on Windows

Preliminaries

Check that you have enough disk space.

The following tools are recommended:

• Notepad++ ? text editor
• Geany ? text editor
• mTail ? Windows program that behaves like the Unix tail command

Checking the Java version

C:\> java -version

If Java is correctly installed, the name and version of the Java Virtual Machine are displayed:

openjdk version "17.0.x"
OpenJDK Runtime Environment
OpenJDK 64-Bit Server VM

setx JAVA_HOME "C:\Program Files\Java\jdk-17" /M

Install Java

If Java 17 is not installed on your server:

1. Download it from the Microsoft website and choose the appropriate platform for your hardware and Windows version.
2. Run the MSI file and follow the installation wizard.

Installing the database

If MySQL is not already installed, download the MySQL MSI Installer from MySQL Community Server and follow the installation wizard.

Check that InnoDB is the default MySQL engine

show engines;

If InnoDB is not the default, modify c:\ProgramData\MySQL\MySQL Server 8.0.34\my.ini and add the following under [mysqld]:

default-storage-engine = innodb

Create the database

CREATE DATABASE okmdb DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_bin;
CREATE USER openkm@localhost IDENTIFIED BY 'password';
GRANT ALL ON okmdb.* TO openkm@localhost WITH GRANT OPTION;

Installing Tomcat

Unzip Tomcat-9.0.76.zip to c:\.

Configuring Tomcat as a service

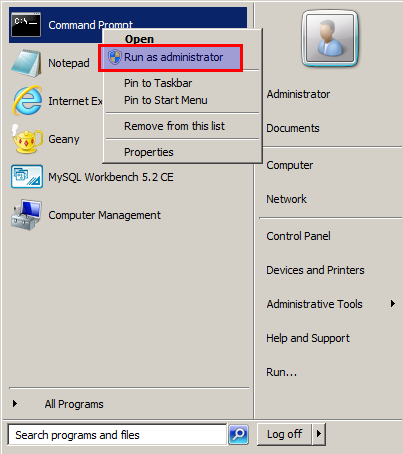

Open a Windows terminal as administrator and register the service:

cd c:\tomcat-9.0.76\bin
service.bat install

Set the JVM parameters for the Tomcat service:

cd c:\tomcat-9.0.76\bin
openkm //US//OpenKM ++JvmOptions="-Xms1024m"
openkm //US//OpenKM ++JvmOptions="-Xmx4096m"
openkm //US//OpenKM ++JvmOptions="-XX:+UseG1GC"
openkm //US//OpenKM ++JvmOptions="-XX:+UseStringDeduplication"
openkm //US//OpenKM ++JvmOptions="-XX:+HeapDumpOnOutOfMemoryError"
openkm //US//OpenKM ++JvmOptions="-XX:HeapDumpPath=%CATALINA_HOME%"
openkm //US//OpenKM ++JvmOptions="-Djava.net.preferIPv4Stack=true"
openkm //US//OpenKM ++JvmOptions="-Dmail.mime.ignoreunknownencoding=true"
openkm //US//OpenKM ++JvmOptions="-Dfile.encoding=UTF-8"
openkm //US//OpenKM ++JvmOptions="-Dsun.jnu.encoding=UTF-8"
openkm //US//OpenKM ++JvmOptions="-Djava.awt.headless=true"
openkm //US//OpenKM ++JvmOptions="-Dsun.java2d.cmm=sun.java2d.cmm.kcms.KcmsServiceProvider"

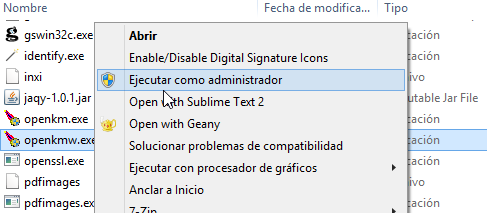

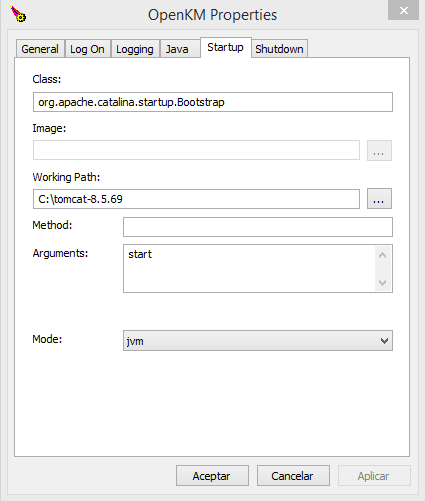

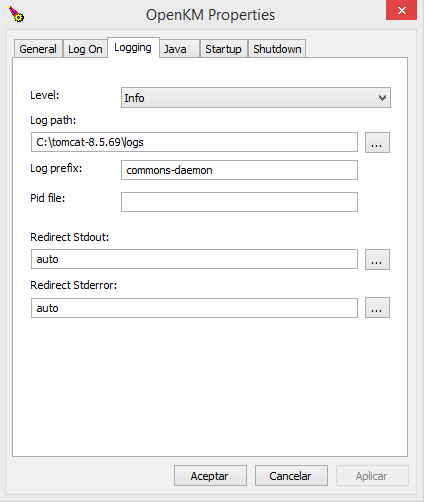

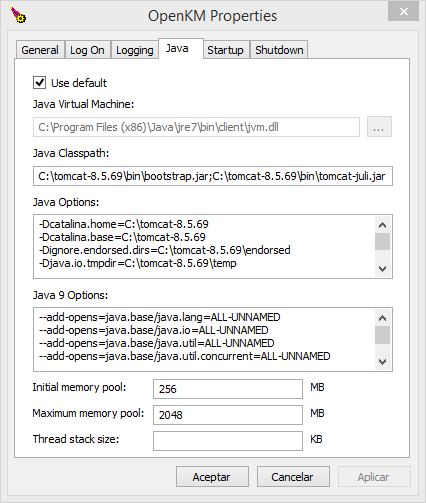

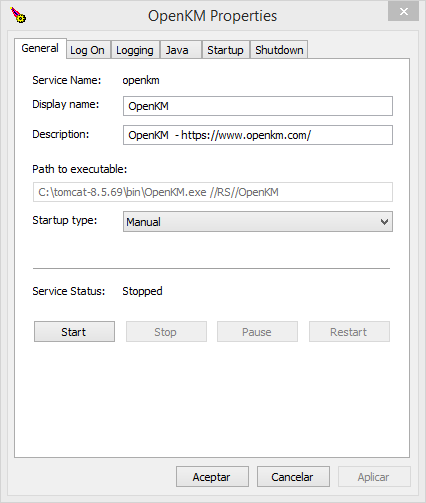

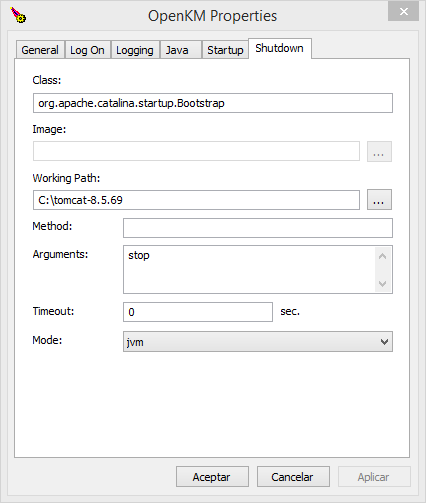

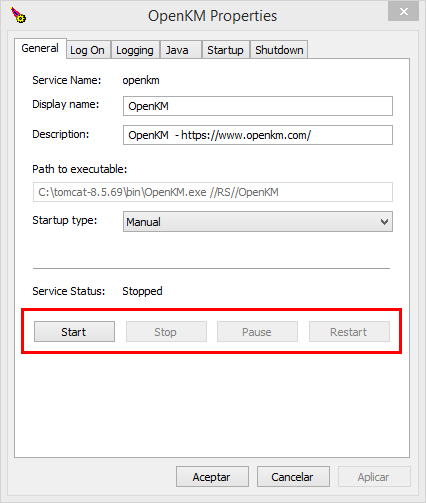

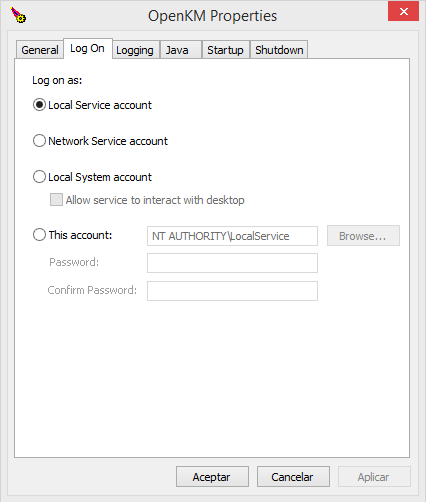

Execute openkmw.exe as administrator to configure the service. You can also change "Startup type" to Automatic.

Check the service

From the terminal:

net start OpenKM
net stop OpenKM

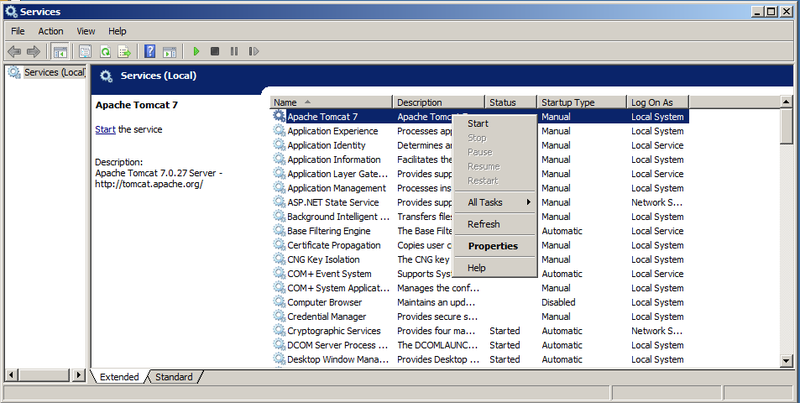

From the Windows Services panel or from the openkmw tool.

Configuring environment variables

Add the bin folder to the PATH environment variable:

setx PATH "%PATH%;C:\tomcat-9.0.76\bin" /M

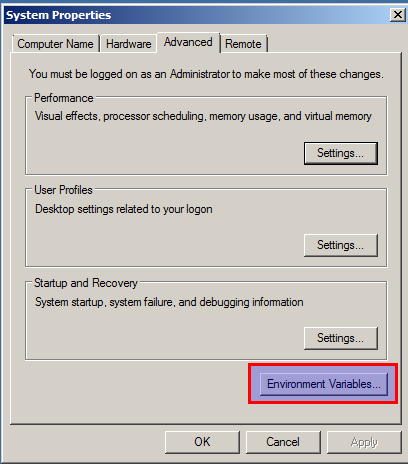

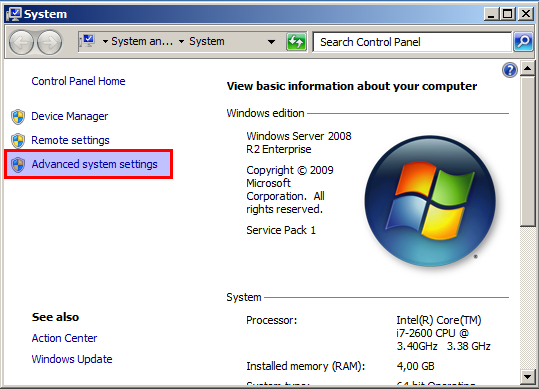

This can also be done through the Windows environment variables settings. The exact screens may vary depending on the Windows version.

Installing OpenKM

With Tomcat stopped, copy the OpenKM WAR file to the webapps directory:

copy openkm.war c:\tomcat-9.0.76\webapps

Install third-party software:

Starting the application

Check openkm.properties parameters

C:\> geany c:\openkm\openkm.properties

Your configuration should contain something like this:

# OpenKM Hibernate configuration values
spring.jpa.properties.hibernate.dialect=com.openkm.db.dialect.MySQL5InnoDBDialect
spring.jpa.hibernate.ddl-auto=create-only

# Initial configuration - Windows
system.libreoffice.path=C:/Program Files (x86)/LibreOffice

Start the application for the first time:

net start OpenKM

When the application has started, you will see lines like these in the log:

2015-07-04 18:28:10,680 [main] INFO org.apache.coyote.http11.Http11Protocol - Starting ProtocolHandler ["http-bio-0.0.0.0-8080"]
2015-07-04 18:28:10,688 [main] INFO org.apache.coyote.ajp.AjpProtocol - Starting ProtocolHandler ["ajp-bio-127.0.0.1-8009"]
2015-07-04 18:28:10,692 [main] INFO org.apache.catalina.startup.Catalina - Server startup in 41456 ms

The application will be accessible at http://YOUR_IP:8080/openkm with the default credentials: user okmAdmin, password admin. Change the password after the first login.

Enable the extensions you need (for example Live Edit and HTML Editor) in the profile Misc > Extensions selector. See Enable extensions for details.

Access from other computers

Access from other computers is blocked by default due to Windows Firewall settings. To allow access from any host, run:

netsh advfirewall firewall add rule name="OpenKM" dir=in action=allow protocol=TCP localport=8080

Additional configuration

OpenKM provides many configuration parameters. Other standard configurations include:

• Configuring Apache HTTP Reverse Proxy
• Configuring Tomcat mail
• Configuring Tomcat memory utilization
• Configuring Tomcat ports
• Configuring Tomcat SSL/TLS
• Configuring Tomcat time zone
