Prometheus configuration

Prometheus is an open-source monitoring system that has some interesting features for event monitoring and alerting. You can find a more detailed description at https://prometheus.io/.

This endpoint has been included in OpenKM since v8.1.10. To enable it, you need to include these two lines in the openkm.properties configuration file:

Once modified, you need to restart OpenKM and the endpoint http://localhost:8080/openkm/actuator/prometheus will be available. This endpoint is protected and will only be accessible to users with the ROLE_ACTUATOR or ROLE_ADMIN roles.

Setup validation

In order to verify that access is valid, open a terminal and execute this command:

If the username and password match, and the user has the ROLE_ACTUATOR role, the output will be something like:

Running Prometheus with Docker

The easiest way to get Prometheus running is to use the Docker image, so we need to get it:

Once we have the image, we need to create the prometheus.yml configuration file:

global:
  scrape_interval:     15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: 'prometheus'
    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.
    static_configs:
    - targets: ['127.0.0.1:9090']

  - job_name: 'spring-actuator'
    metrics_path: '/openkm/actuator/prometheus'
    scrape_interval: 5s
    static_configs:
    - targets: ['172.18.0.1:8080']
    basic_auth:
      username: 'okmAdmin'
      password: 'admin'

Let's create the appropriate Docker Compose file:

version: '3.2'

services:

  prometheus:
    image: prom/prometheus
    container_name: prometheus
    hostname: prometheus
    command:
      - "--config.file=/etc/prometheus/prometheus.yml"
    ports:
      - 9090:9090
    volumes:
      - ./prometheus.yml:/etc/prometheus/prometheus.yml

And you can start it by:

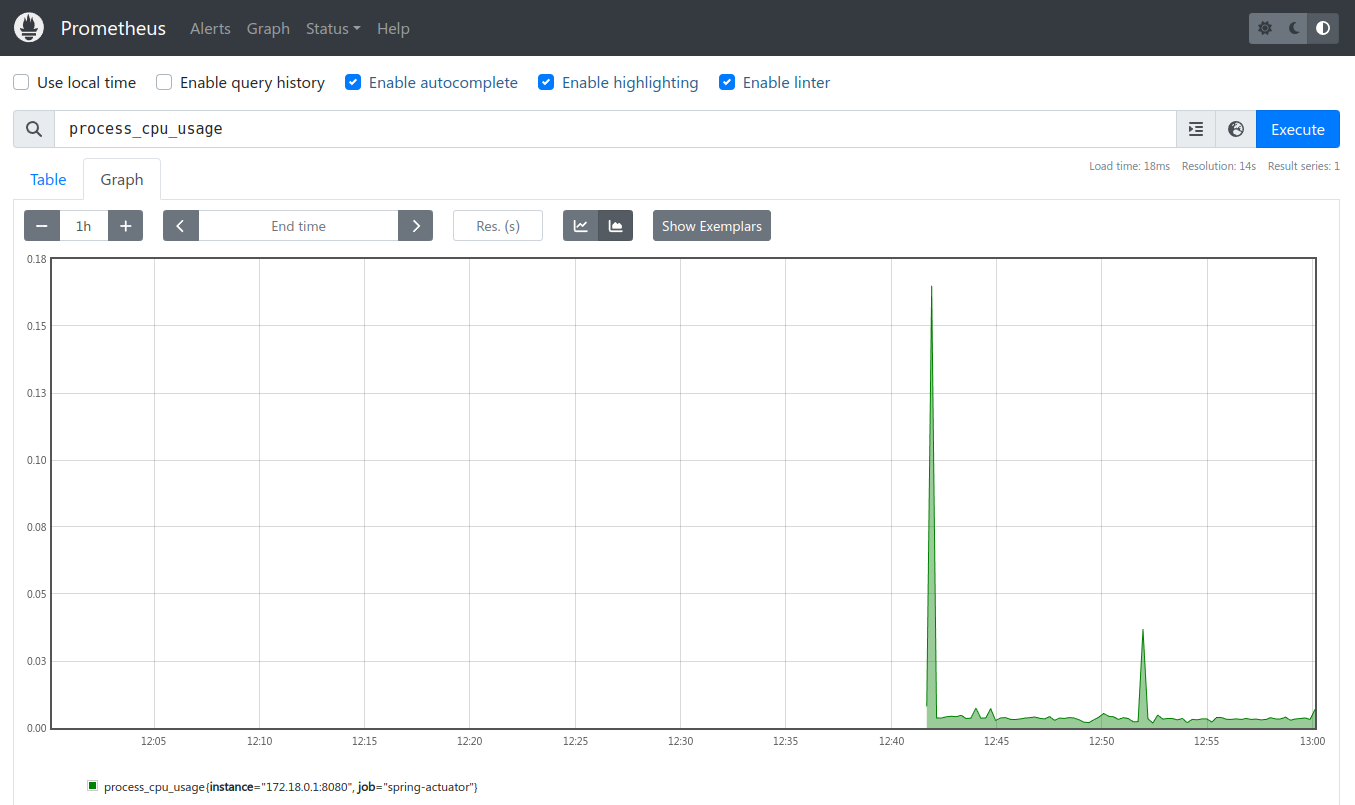

Once started, Prometheus will be accessible at http://localhost:9090/ and you can see a graph of application CPU usage filtered by "process_cpu_usage":

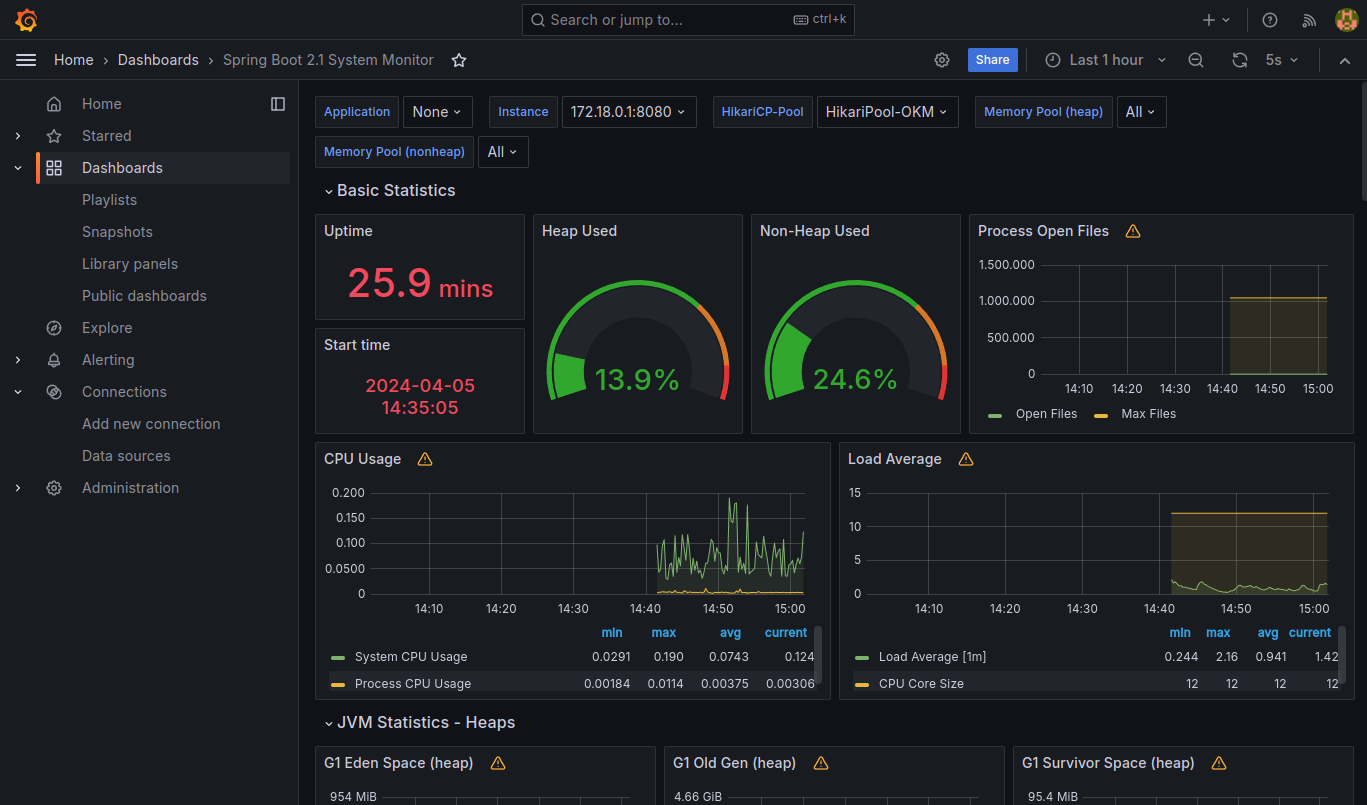

Grafana will be available at http://localhost:3000/ and to log in, use "admin" as the default username and password. Go to "Data sources" and add a Prometheus data source using the URL http://172.18.0.1:9090. To create a sample dashboard, go to Dashboard and click the "Create Dashboard" button. After that, click "Import dashboard" and choose the "Spring Boot template" which has the id 11378. Use the previously created Prometheus data source.

More information is available on the Prometheus and Grafana websites.
