Expense report approval

Overview

The Expense Report Approval workflow automates the full lifecycle of an employee expense claim: from submission and receipt upload, through manager approval and finance validation, to payment. It supports two clarification loops (manager → employee, and manager → finance) and two independent final-rejection paths, so that a rejection originated by the manager and a rejection originated during finance validation are tracked separately.

Download: expense-report-approval.okmflow

Supported execution paths:

• Direct approval: the request passes Manager Approval and Finance Validation without issues and the expense is paid.
• Employee clarification loop: the manager (either from Manager Approval or from Manager Review) returns the request to the employee for corrections. The request can loop back to Manager Approval as many times as needed.
• Finance ↔ Manager loop: Finance Validation rejects the request; it is routed to the same manager who originally approved it (Manager Review) instead of ending the process. From there the manager can request employee clarification, reply directly to Finance, or reject the request definitively.
• Rejection at Manager Approval: the manager rejects the request directly — the employee is notified by email and the process ends.
• Rejection at Manager Review (originated by Finance): the manager rejects the request after a Finance rejection — the employee is notified by email and the process ends via a separate terminal branch.

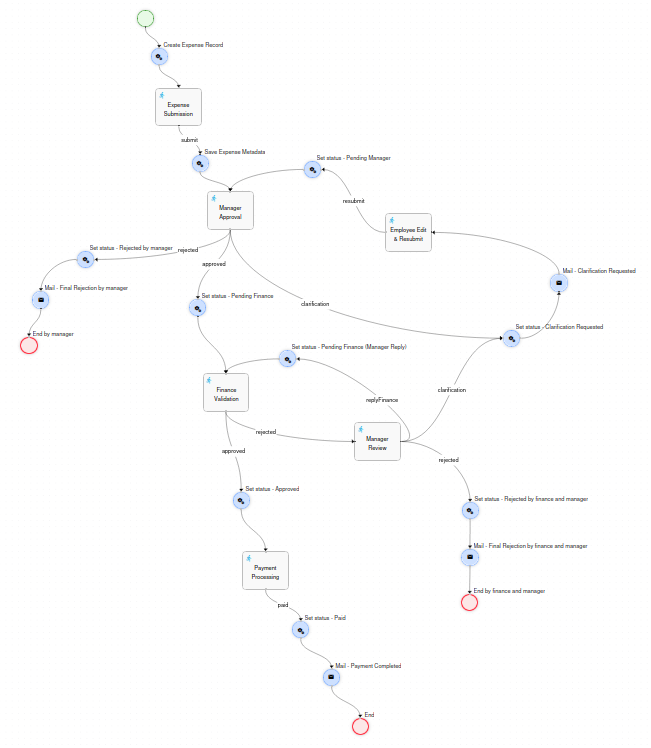

Diagram

Prerequisites

Before deploying this workflow, the following must exist in OpenKM.

Database

A custom counter table is used to generate sequential expense references. It is generic and shared with other workflows (e.g. Purchase Order) via different counter_key values — only create the table once:

CREATE TABLE IF NOT EXISTS APP_COUNTER (
    counter_key   VARCHAR(50)  NOT NULL,
    counter_value INT          NOT NULL DEFAULT 1,
    CONSTRAINT pk_app_counter PRIMARY KEY (counter_key)
);

INSERT INTO APP_COUNTER (counter_key, counter_value)
VALUES ('expense_report', 1);

Users and roles

Metadata group

The property group okg:expense_report must be registered in OpenKM before the first execution. It is applied automatically to the expense record by the workflow — the user never fills it in manually.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE property-groups PUBLIC "-//OpenKM//DTD Property Groups 3.12//EN"
    "http://www.openkm.com/dtd/property-groups-3.12.dtd">
<property-groups>
  <property-group label="Expense Report" name="okg:expense_report" readonly="true">

    <input label="Expense Reference" name="okp:expense_report.expenseNumber" />
    <input label="Employee"          name="okp:expense_report.employee" />
    <select label="Department"       name="okp:expense_report.department" type="simple">
      <option label="IT"         value="it"/>
      <option label="Finance"    value="finance"/>
      <option label="Operations" value="operations"/>
      <option label="Sales"      value="sales"/>
      <option label="HR"         value="hr"/>
    </select>
    <input label="Expense Date"      name="okp:expense_report.expenseDate" type="date" />
    <select label="Category"         name="okp:expense_report.category" type="simple">
      <option label="Travel"          value="travel"/>
      <option label="Meals"           value="meals"/>
      <option label="Accommodation"   value="accommodation"/>
      <option label="Office Supplies" value="office_supplies"/>
      <option label="Other"           value="other"/>
    </select>
    <input label="Amount"            name="okp:expense_report.amount" />
    <select label="Currency"         name="okp:expense_report.currency" type="simple">
      <option label="EUR" value="EUR"/>
      <option label="USD" value="USD"/>
      <option label="GBP" value="GBP"/>
    </select>
    <textarea label="Description"      name="okp:expense_report.description" dbColumnSize="1024" />
    <textarea label="Manager Comments" name="okp:expense_report.managerComments" dbColumnSize="1024" />
    <textarea label="Finance Comments" name="okp:expense_report.financeComments" dbColumnSize="1024" />
    <input label="Payment Date"      name="okp:expense_report.paymentDate" type="date" />
    <input label="Payment Reference" name="okp:expense_report.paymentReference" />
    <select label="Status"           name="okp:expense_report.status" type="simple">
      <option label="Pending Manager Approval"      value="pending_manager_approval"/>
      <option label="Clarification Requested"       value="clarification_requested"/>
      <option label="Pending Finance Validation"     value="pending_finance_validation"/>
      <option label="Rejected - Manager"             value="rejected_manager"/>
      <option label="Rejected - Finance"             value="rejected_finance"/>
      <option label="Rejected - Finance and Manager" value="rejected_by_finance_and_manager"/>
      <option label="Approved"                       value="approved"/>
      <option label="Paid"                           value="paid"/>
    </select>

  </property-group>
</property-groups>

The group is readonly="true" — all writes are performed programmatically from Action nodes in the workflow.

Repository structure

The action Create Expense Record (the first node after Start) builds the following structure in the OpenKM repository each time a new workflow instance is launched:

/okm:root/
--- Expense Report Approval/
    --- {year}/                        - Folder (type: folder)
        --- RECEIPTS-{year}-{NNNNN}/   - Record (type: record) - the main expediente

Reference format: RECEIPTS-{year}-{NNNNN} where NNNNN is a zero-padded 5-digit sequential number (e.g. RECEIPTS-2026-00001). The counter is read from APP_COUNTER.counter_key = 'expense_report', incremented, and saved back atomically at workflow start.

The workflow process instance is linked to this record via WorkflowUtils.setProcessInstanceNode(context, recordUuid), so the workflow is accessible directly from the document explorer.

Node reference

Start

Launches the workflow. No form is presented to the user at this point — the process starts immediately and transitions to the Create Expense Record action.

Create Expense Record - Action

Runs immediately after Start. Performs all repository initialisation:

1. Reads and increments the counter from APP_COUNTER (counter_key = 'expense_report'), builds RECEIPTS-{year}-{NNNNN}.
2. Creates the year folder /okm:root/Expense Report Approval/{year} if it does not already exist.
3. Creates the expense record inside the year folder using ws.record.create(fldUuid, expenseNumber, "", 0).
4. Stores expenseNumber, expenseRecordPath, expenseRecordUuid and an Upload descriptor (receiptsUploadData, pointing at the record root) in the workflow context.
5. Links the process instance to the record via WorkflowUtils.setProcessInstanceNode(context, recordUuid).

No metadata is written yet — the record does not have a metadata group at this point.

Expense Submission - Task

Assignment: the workflow initiator (initiator.getId()).

Save Expense Metadata - Action

Runs immediately after Expense Submission. Reads all form values from context, resolves the employee's display name from initiator.getName(), and writes the first version of okg:expense_report (using addGroup, since the group does not exist yet). Sets status = pending_manager_approval.

Manager Approval - Task

Assignment logic (department-based):

The form shows the full expense in read-only mode, a clickable link to the expense record (type="folder"), and a single free-text Manager Comments field used across every outcome (approval note, clarification reason, or rejection reason).

Set status - Pending Finance - Action

Updates okp:expense_report.status to pending_finance_validation and stores the manager's approval note (managerComments), then routes to Finance Validation.

Finance Validation - Task

Assignment logic (pool → direct re-assignment via task history):

1. Query task history: WorkflowUtils.getTaskInstances(piId, "Finance Validation")
2. If a previous instance with an assigned actor exists → return that actor (String, direct assignment)
   (ensures the same finance user handles re-entry after the "Reply to Finance" loop)
3. If first time → return the pool of all ROLE_FINANCE users (List<String>), any of whom must self-assign

The form shows the expense in read-only mode, the manager's reply if this is a re-entry (pre-loaded from managerComments), and an editable Finance Comments field.

Set status - Approved - Action

Updates okp:expense_report.status to approved and stores financeComments, then routes to Payment Processing.

Manager Review - Task

Reached only when Finance Validation is rejected. This is not a new department-based assignment: it is always routed to the same person who completed Manager Approval, via task-history lookup (see Key patterns), because that manager already vetted the request once and is best placed to judge whether Finance's objection needs the employee's input or can be resolved directly.

The form shows the expense in read-only mode, Finance's rejection reason (read-only), and an editable Manager Comments field.

Set status - Clarification Requested - Action

Shared by both Manager Approval and Manager Review. Updates okp:expense_report.status to clarification_requested and stores managerComments, then routes to Mail - Clarification Requested. Centralising this in one node means the metadata-write logic for "clarification requested" only exists once, regardless of which task triggered it.

Mail - Clarification Requested - Mail

Employee Edit & Resubmit - Task

Assignment: the workflow initiator (initiator.getId()).

Shows the manager's clarification request (read-only) and every field from Expense Submission, pre-filled and editable (same field names as the original submission, so the values the employee resubmits overwrite the originals in context). Also allows uploading additional receipts to the same record (previously uploaded files are preserved).

Set status - Pending Manager - Action

Re-reads the (possibly edited) form fields from context and re-writes the full metadata set (department, expense date, category, amount, currency, description), plus status = pending_manager_approval. This is what makes the resubmission loop actually persist the employee's edits to the record, not just to the in-memory workflow context.

Set status - Pending Finance (Manager Reply) - Action

Updates okp:expense_report.status to pending_finance_validation and stores the manager's reply (managerComments), then routes back to Finance Validation (which re-assigns to the same finance user via task history).

Payment Processing - Task

Assignment: direct, fixed to a single user, paymentManager.

Shows the full expense in read-only mode, with "Pay to (Employee)" as the first field so the payer immediately knows the recipient, plus editable Payment Date and Payment Reference fields.

Set status - Paid - Action

Updates okp:expense_report.status to paid, and stores paymentDate (raw yyyyMMddHHmmss) and paymentReference. Separately formats paymentDate to yyyy-MM-dd and stores it in context as paymentDate_fmt, exclusively for display in the notification email — the stored metadata property always keeps the raw format.

Mail - Payment Completed - Mail

Set status - Rejected by manager / Mail - Final Rejection by manager / End by manager

Direct-rejection terminal branch from Manager Approval. Updates okp:expense_report.status to rejected_manager and stores managerComments, emails the employee, and ends the process.

Set status - Rejected by finance and manager / Mail - Final Rejection by finance and manager / End by finance and manager

Terminal branch from Manager Review (i.e. rejection that started at Finance Validation). Kept as an independent branch from the one above so the two rejection origins can be distinguished and reported on separately.

Metadata lifecycle

The okp:expense_report.status field is updated automatically at each stage transition. The complete lifecycle is:

pending_manager_approval → clarification_requested → pending_manager_approval   (loop, repeatable)
pending_manager_approval → rejected_manager                                     (terminal)
pending_manager_approval → pending_finance_validation
pending_finance_validation → pending_finance_validation                         (via Manager Review → Reply to Finance loop)
pending_finance_validation → clarification_requested → pending_manager_approval (via Manager Review)
pending_finance_validation → rejected_by_finance_and_manager                    (terminal, via Manager Review)
pending_finance_validation → approved
approved → paid                                                                  (terminal)

Key patterns
