Vacation request

Overview

The Vacation Request workflow automates the full lifecycle of an employee's vacation request: from initial date selection, through one or two levels of management review, to final email notification of the outcome.

Download: vacation-request.okmflow

Supported execution paths:

• Direct approval by the first-level manager (ROLE_RRHH pool).
• Escalation to a second-level reviewer when the manager considers it necessary.
• Request for changes at either level — returns the request to the employee, then routes back to the same reviewer who originally requested the changes.
• Denial at either level, with automatic email notification to the employee.

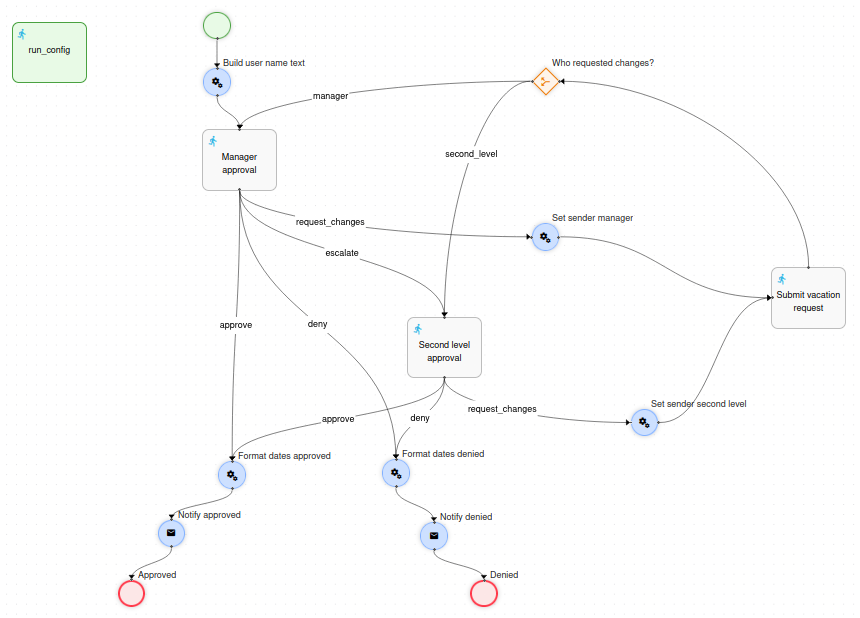

Diagram

Prerequisites

Before deploying this workflow, the following must exist in the OpenKM user and role directory:

Node reference

run_config - Initiation form

Displayed to the employee before the workflow starts. Collects the vacation period dates. Not connected to the diagram — the engine presents it automatically when the workflow is launched.

Build user name text - Action

Runs immediately after Start. Creates a Text form element containing the employee's name formatted as HTML, and stores it in context so the approval task forms can show it as a dynamic header.

import com.openkm.okmflow.bean.*;

Actor actor = context.get("initiator");
String userName = actor.getName();
Text userText = new Text();
userText.setName("user_text");
userText.setLabel("The user <span class=\"font-weight-bold\">" + userName + "</span> has requested vacations");
context.put("user_text", userText);

The Text object is then consumed by the approval forms:

<text label="" name="user_description" data="user_text" />

When data="user_text" is set, the engine loads the Text object from context and renders its label property as HTML inside the form. This is how workflows display dynamic, person-specific content in task forms without hardcoding values.

Manager approval - Task (first level)

Assigned to the pool of users in ROLE_RRHH on first entry. On re-entry after the employee corrects the request, it is reassigned directly to whoever handled it previously — bypassing the pool so the same reviewer continues the review.

Smart re-assignment using task history:

import com.openkm.okmflow.util.*;
import com.openkm.okmflow.rest.dto.*;
import java.util.*;

def procIns = context.get("processInstance");
long piId = procIns.getId();

// Check if this task has been handled before in this process instance
List<TaskInstanceDTO> prevTasks = WorkflowUtils.getTaskInstances(piId, "Manager approval");
if (prevTasks != null && !prevTasks.isEmpty()) {
    for (TaskInstanceDTO t : prevTasks) {
        if (t.getActor() != null && !t.getActor().isEmpty()) {
            return t.getActor(); // String → direct assignment (not a pool)
        }
    }
}

// First entry: assign to pool of ROLE_RRHH users
OKMWebservices ws = WebservicesHelper.getInstance();
List<String> users = new ArrayList();
for (CommonUser user : ws.auth.getUsersByRole("ROLE_RRHH")) {
    users.add(user.getId());
}
return users; // List → pool assignment

Set sender manager - Action

Triggered when the manager selects request_changes. Stores the routing key and propagates the reviewer's comment to the shared correction task.

// Store routing key so the Decision node can route back to Manager approval
Input sender = new Input();
sender.setValue("manager");
context.put("request_sender", sender);

// Propagate the comment — use def (no explicit cast) to handle any form element type
def managerComment = context.get("manager_comment");
context.put("reviewer_comment", managerComment);

Second level approval - Task

Assignment: return "rrhhSupervisor";

Reached when the first-level manager escalates the request. Shows the manager's comment in read-only mode so the second-level reviewer has full context before deciding.

Set sender second level - Action

Mirrors the logic of Set sender manager, but writes "second_level" as the routing key and copies the second-level comment into reviewer_comment.

Input sender = new Input();
sender.setValue("second_level");
context.put("request_sender", sender);

def secondComment = context.get("second_level_comment");
context.put("reviewer_comment", secondComment);

Submit vacation request - Task (shared correction task)

Assignment: return ((Actor) context.get("initiator")).getId();

Single shared node used for corrections from both the first and second level. The employee can adjust the dates and always sees the comment from whoever requested the changes, regardless of review level.

<workflow-form>
  <input label="Start date" name="start_date" type="date" timeFormat="none" data="start_date">
    <validator type="req"/>
  </input>
  <input label="End date" name="end_date" type="date" timeFormat="none" data="end_date">
    <validator type="req"/>
  </input>
  <textarea label="Reviewer comment" name="reviewer_comment" data="reviewer_comment" readonly="true"/>
  <button name="btn_submit" label="Submit" transition="" color="primary" style="yes" validate="true"/>
</workflow-form>

The data="reviewer_comment" attribute loads whichever comment was written by the preceding Action node (Set sender manager or Set sender second level). The two Action nodes write different objects to the same context key, so the form always displays the relevant reviewer's comment without branching logic.

Who requested changes? - Decision

Routes the corrected request back to the appropriate reviewer based on the request_sender context variable.

import com.openkm.bean.form.*;

def sender = context.get("request_sender");
return sender.getValue(); // returns "manager" or "second_level"

Format dates approved / Format dates denied - Actions

Two symmetric nodes are executed immediately before each Mail node. They convert the raw date format (yyyyMMddHHmmss) to a human-readable format (dd/MM/yyyy) and store the results as new Input objects for use in the email body template.

import com.openkm.bean.form.*;
import java.text.*;

SimpleDateFormat raw = new SimpleDateFormat("yyyyMMddHHmmss");
SimpleDateFormat fmt = new SimpleDateFormat("dd/MM/yyyy");

Input startRaw = context.get("start_date");
Input endRaw   = context.get("end_date");

Input startFmt = new Input();
startFmt.setValue(fmt.format(raw.parse(startRaw.getValue())));
context.put("start_date_fmt", startFmt);

Input endFmt = new Input();
endFmt.setValue(fmt.format(raw.parse(endRaw.getValue())));
context.put("end_date_fmt", endFmt);

The Mail node body accesses these values using the FreeMarker .value accessor: ${start_date_fmt.value}, ${end_date_fmt.value}.

Notify approved - Mail

Sends an approval email to the workflow initiator.

Notify denied - Mail

Sends a denial email to the workflow initiator. Shared by denials from both the first and second level.

Approved / Denied - End nodes

Two named End nodes represent the two final outcomes. Using distinct names allows external systems or audit reports to distinguish whether a process instance ended in approval or denial.

Key patterns
