Complaint management

Overview

The Complaint Management workflow automates the full lifecycle of a customer complaint: from intake, through classification and manual assignment, investigation (with an optional information-request loop back to the claimant), to resolution and final communication. Unlike workflows that start on an existing OpenKM document, this one starts from a pre-launch intake form (run_config) and creates its own case record in the repository as its first step.

Download: complaint-management.okmflow

Supported execution paths:

• Direct resolution: the complaint is classified, assigned, investigated and resolved without needing further input from the claimant.
• Additional-information loop: during investigation, the assignee requests more information from the claimant by email. The case then loops on Register Received Information: either it returns to Investigation to continue, or it is closed without a resolution.
• Closed — no response: if the claimant never replies to the information request, the case is closed through a separate terminal branch, distinguishable in the metadata (closed_no_response) from a normal resolution.

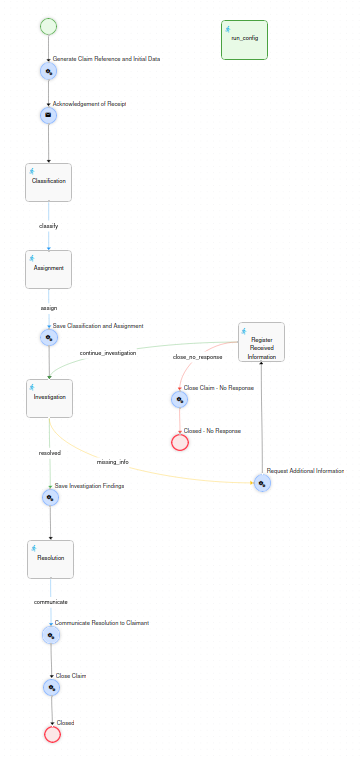

Diagram

Prerequisites

Before deploying this workflow, the following must exist in OpenKM.

Database

A custom counter table is used to generate sequential case references. It is generic and can be shared with other workflows (e.g. Purchase Order, Expense Report Approval) via different counter_key values — only create the table once per environment:

CREATE TABLE IF NOT EXISTS APP_COUNTER (
    counter_key   VARCHAR(50)  NOT NULL,
    counter_value INT          NOT NULL DEFAULT 1,
    CONSTRAINT pk_app_counter PRIMARY KEY (counter_key)
);

INSERT INTO APP_COUNTER (counter_key, counter_value)
VALUES ('complaint', 1);

Users and roles

Metadata group

The property group okg:complaint must be registered in OpenKM before the first execution. It is applied automatically to the case record by the workflow — the user never fills it in manually (aside from the initial run_config form, which is not a metadata form).

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE property-groups PUBLIC "-//OpenKM//DTD Property Groups 3.12//EN"
    "http://www.openkm.com/dtd/property-groups-3.12.dtd">
<property-groups>
  <property-group label="Complaint" name="okg:complaint" readonly="true">

    <input label="Claimant name" name="okp:complaint.contact_name">
      <validator type="req"/>
    </input>
    <input label="Contact email" name="okp:complaint.contact_email">
      <validator type="req"/>
      <validator type="email"/>
    </input>
    <input label="Contact phone" name="okp:complaint.contact_phone" />
    <textarea label="Complaint description" name="okp:complaint.claim_description" dbColumnSize="2048">
      <validator type="req"/>
    </textarea>
    <input label="Case number" name="okp:complaint.case_number" />
    <select label="Complaint type" name="okp:complaint.claim_type" type="simple">
      <option label="Product" value="product"/>
      <option label="Service" value="service"/>
      <option label="Billing" value="billing"/>
      <option label="Customer service" value="customer_service"/>
      <option label="Delivery / lead time" value="delivery"/>
      <option label="Other" value="other"/>
    </select>
    <select label="Priority" name="okp:complaint.priority" type="simple">
      <option label="Low" value="low"/>
      <option label="Medium" value="medium"/>
      <option label="High" value="high"/>
    </select>
    <select label="Department" name="okp:complaint.department" type="simple">
      <option label="Customer Care" value="customer_care"/>
      <option label="Quality" value="quality"/>
      <option label="Operations" value="operations"/>
      <option label="Billing" value="billing"/>
      <option label="Legal" value="legal"/>
      <option label="Other" value="other"/>
    </select>
    <input label="Assigned to" name="okp:complaint.assigned_to" />
    <textarea label="Investigation findings" name="okp:complaint.investigation_findings" dbColumnSize="2048" />
    <select label="Resolution type" name="okp:complaint.resolution_type" type="simple">
      <option label="Accepted" value="accepted"/>
      <option label="Rejected" value="rejected"/>
      <option label="Partially accepted" value="partial"/>
    </select>
    <input label="Closed date" name="okp:complaint.closed_date" type="date" />
    <select label="Status" name="okp:complaint.status" type="simple">
      <option label="New" value="new"/>
      <option label="Assigned" value="assigned"/>
      <option label="Under investigation" value="under_investigation"/>
      <option label="Pending additional information" value="pending_info"/>
      <option label="Pending resolution" value="pending_resolution"/>
      <option label="Resolved" value="resolved"/>
      <option label="Closed" value="closed"/>
      <option label="Closed - no response" value="closed_no_response"/>
    </select>

  </property-group>
</property-groups>

The group is readonly="true" — all writes are performed programmatically from Action nodes in the workflow.

Repository structure

The action Generate Claim Reference and Initial Data (the first node after Start) builds the following structure in the OpenKM repository each time a new workflow instance is launched:

/okm:root/
--- Complaints/
    --- {year}/                     - Folder (type: folder)
        --- CLM-{year}-{NNN}/       - Record (type: record) - the case itself
            --- resolution/         - Folder (type: folder) - for the optional resolution document

Reference format: CLM-{year}-{NNN} where NNN is a zero-padded 3-digit sequential number (e.g. CLM-2026-001). The counter is read from APP_COUNTER.counter_key = 'complaint', the case number is built from the value read, and the counter is incremented and saved back immediately afterwards.

The workflow process instance is linked to this record via WorkflowUtils.setProcessInstanceNode(context, recordUuid), so the workflow is accessible directly from the document explorer.

Node reference

run_config — Initiation form

Displayed to the user before the process instance is created. Not connected to the rest of the diagram and has no outgoing transitions — the engine presents it automatically when the workflow is launched.

Assignment: assignExpr is the literal expression ""; — the pre-launch form is always shown to whoever starts the process; it is not routed through the normal role/user assignment mechanism.

Start

Standard start node. This workflow starts without an associated OpenKM node — there is no record behind the process until the next Action node creates one. Unnamed transition → Generate Claim Reference and Initial Data.

Generate Claim Reference and Initial Data — Action

Runs immediately after Start. Performs all repository initialisation for the new case:

1. Reads the current counter value from APP_COUNTER (counter_key = 'complaint') with a raw SQL query (ws.repository.executeSqlQuery), builds the case number as CLM-{year}-{NNN} from that value, then updates the counter row to the next value.
2. Reads the values submitted in run_config (contactName, contactEmail, contactPhone, claimDescription) via WorkflowUtils.getFormElementValue(context, ...).
3. Creates the year folder /okm:root/Complaints/{year} if it does not already exist (ws.folder.createMissingFolders), then creates the case record inside it (ws.record.create), guarding both steps with ws.repository.hasNode checks.
4. Links the process instance to the record via WorkflowUtils.setProcessInstanceNode(context, recordUuid).
5. Writes the okg:complaint metadata group with the intake data, the case number and status = new, choosing addGroup or setProperties depending on whether the group already exists on the record (ws.propertyGroup.hasGroup).
6. Stores plain-string context variables (caseNumber, contactName, contactEmail, contactPhone, claimDescription) for later Mail templates and plain-email scripts, plus typed Input/TextArea objects (caseNumberData, contactNameData, contactEmailData, claimDescriptionData) so later read-only form fields can pre-fill via data="...".
7. Creates a resolution subfolder inside the record and stores an Upload descriptor (resolutionUploadParams) pointing at it, for later use in the Resolution task.

Acknowledgement of Receipt — Mail

Classification — Task

Assignment: pool of ROLE_CLAIMS_TRIAGE users.

The form shows the case number, claimant name, contact email and complaint description in read-only mode, then collects:

Assignment — Task

Assignment: pool of ROLE_CLAIMS_COORDINATOR users.

The form shows the case number, complaint description and classification data (type, priority, department, classification comments) in read-only mode, then collects:

Save Classification and Assignment — Action

Runs immediately after Assignment. Reads claimType, priority, department and assignee (all Select objects) from context, stores assignee.getValue() as assigneeId in context, and writes claim_type, priority, department, assigned_to and status = assigned to okg:complaint.

Investigation — Task

Assignment logic (pool → direct re-assignment via task history):

1. Query task history: WorkflowUtils.getTaskInstances(piId, "Investigation")
2. If a previous instance with an assigned actor exists → return that actor (String, direct assignment)
   (ensures the same investigator handles re-entry after the information-request loop)
3. If first time → return assigneeId (the person chosen in "Assignment")

The form shows the case number, complaint description and any previously-received additional information in read-only mode, then collects:

Request Additional Information — Action

Runs when Investigation is marked as needing more information. Sends a plain email (ws.mail.sendMail, not a Mail node) to contactEmail, including the investigator's findings so far if any, asking the claimant to reply with the missing details. The sending address is hard-coded (noreply@nomail.com, marked with a TODO comment to replace it with the real one). Routes to Register Received Information.

Register Received Information — Task

Assignment: same task-history lookup pattern as Investigation (queries task instances of "Investigation") — re-assigned to whoever is investigating the case; falls back to assigneeId if no prior actor is found.

The form shows the case number and the prior investigation notes in read-only mode, then collects:

Save Investigation Findings — Action

Runs when Investigation is marked complete (resolved). Persists investigationFindings to okp:complaint.investigation_findings and sets status = pending_resolution, then routes to Resolution.

Resolution — Task

Assignment: same task-history lookup pattern, targeting "Investigation" — the person who investigated the case resolves it directly; there is no separate approval step.

The form shows the case number and investigation notes in read-only mode, then collects:

Communicate Resolution to Claimant — Action

Reads resolutionType and resolutionText from context. Lists the contents of the resolution subfolder (ws.document.getChildren) to check whether a document was uploaded in the previous task. If none was uploaded, sends a plain email (ws.mail.sendMail); if one was uploaded, sends the same email with the document attached via ws.mail.sendMailWithAttachments. The sending address is hard-coded here as well (noreply@nomail.com, same TODO as in Request Additional Information). Routes to Close Claim.

Close Claim — Action

Reads resolutionType from context (still available from the Resolution task — nothing overwrites it in between) and writes okp:complaint.resolution_type, status = closed, and closed_date (current timestamp, raw yyyyMMddHHmmss format) to okg:complaint. Routes to End "Closed".

Close Claim - No Response — Action

Reached only from Register Received Information's close_no_response branch. Writes status = closed_no_response and closed_date to okg:complaint. Routes to End "Closed - No Response".

Closed / Closed - No Response — End nodes

Two named End nodes representing the two final outcomes. Using distinct names allows external systems or audit reports to distinguish a resolved case from one closed for lack of response.

Metadata lifecycle

The okp:complaint.status field is updated automatically at each stage transition. The complete lifecycle is:

new → assigned → pending_resolution → closed   (direct path)
assigned → assigned                            (information-request loop, repeatable)
assigned → closed_no_response                  (terminal, via the information-request loop)

Status does not change while the information-request loop is repeating; it only advances to pending_resolution once Investigation is finally marked "resolved".
