User guide v4.x
Printer Tool allows the user to print documents in PDF format and upload to OpenKM.
Configuration

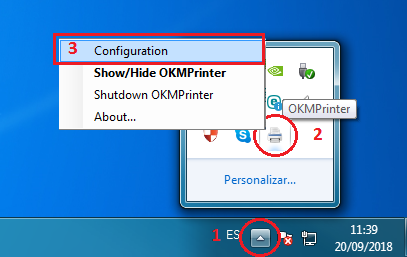

- Go to the notification area of the windows taskbar.
- Click the right button of the Mouse on the OKMPrinter icon.
- Go to the "Configuration" option.
First, you must choose the Configuration menu item to set your configuration values:
| Property | Type | Description |
|---|---|---|
|
Language |
Select |
User interface language. |
|
User |
String |
User id for accessing OpenKM. user1 |
|
Password |
String |
The password of the user. pass1 |
|
Host |
String |
OpenKM URL. http://localhost:8080/openkm/ |
|
Request path to upload |
Bool |
When it is enabled, the user will be asked if he want to change default destination path. |
|
Default path to upload |
String |
Set default destination path. Option enabled when "Request path to upload" option is disabled. |
|
Use personal token |
Bool |
The authentication will be done with the access token. |
| Personal token | String |
The personal access token okmpat-Ky1t16O2Rwx4ttPmOK0R |
After you set your configuration values, a folder called OpenKM is created in your user My documents folder. In this OpenKM folder, a configuration there's a file named openkm.xml
Alternative configuration of the main file folder
To configure a custom path for storing key application files such as:
- The log file (openkm.log)
- The configuration file (openkm.xml)
- Temporary files generated during runtime
This configuration is done using the okm.folder.path property, located in the app.properties file within the installation directory.
Example:
okm.folder.path=C:\\New_folder_path
When to Use This Configuration:
This option is especially useful when there are issues using the default file paths, such as:
-
Insufficient file system permissions
-
Limited disk space or access restrictions in the default location
-
Need to separate system files from configuration and data
-
IT infrastructure policies or organization requirements
After making the changes, you must restart the app.
Print and upload

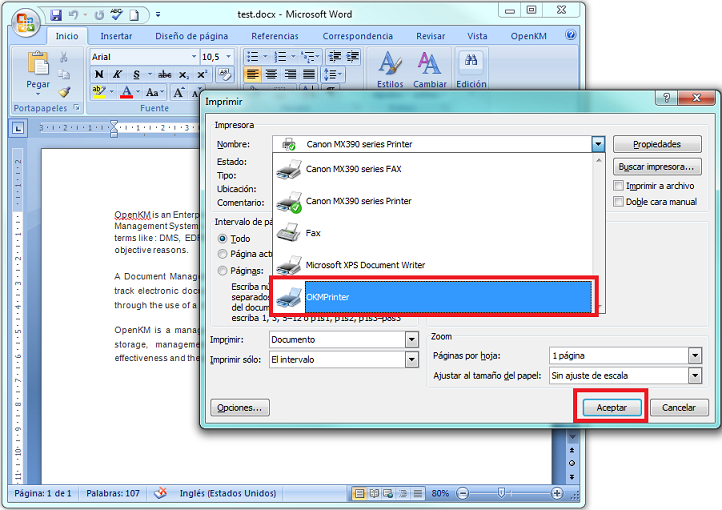

- Open a document from any application.
- Print the document.
- Choose the "OKMPrinter" as the destination printer.
- The application will shown a message "The document has been successfully uploaded", to indicate the process is finished.

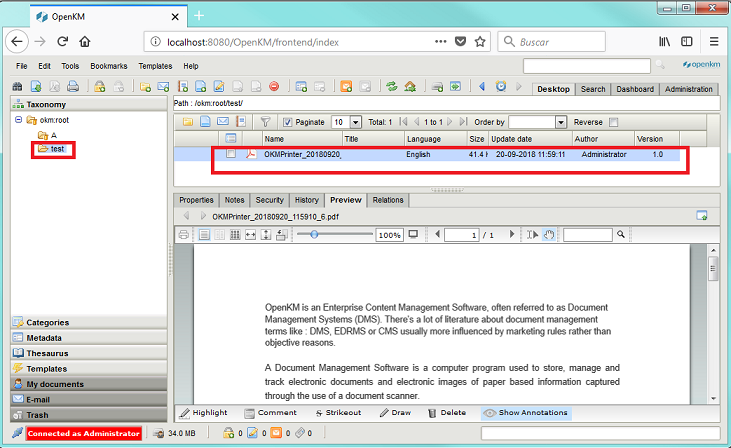

The document uploaded will be saved with the pattern: "OKMPrinter_YearMonthDay_Hour.pdf".
