Configuring CADViewer
CADViewer is a third-party product which can be integrated into OpenKM to provide previsualization of AutoCAD documents.
The required executables should already be included in your OpenKM installation. Please check if the $TOMCAT_HOME/bin/cadviewer folder exists and contains executable files like autoxchange and dwglist, among others.
Go to Administration > Utilities > Database query. At the bottom right, select the JDBC option, and paste the SQL insert into the box:
INSERT INTO OKM_EXTENSION (EXT_UUID, EXT_NAME) VALUES ('8e642680-0dcd-4ded-a501-2aa3e53b1286','CADViewer Preview');Some configuration properties are needed:
| Field / Property | Type | Description |
|---|---|---|
| extension.cadviewer.license.key | String |
The CADViewer frontend license key. The default license only works with local installations. It is the JavaScript CAD previewer. |
| extension.cadviewer.autoxchange | String |
Path to autoxchange utility. Used for thumbnail generation, preview, and PDF conversion. |
| extension.cadviewer.linklist | String |
Path to linklist utility. Extracts text and metadata from DWG documents. |
| extension.cadviewer.dwglist | String |
Path to dwglist utility. Gets XREFs from DWG documents. Also used in thumbnail generation, preview, and PDF conversion. |
| extension.cadviewer.sibling.xrefs | Boolean |
When this parameter is set to true, the AutoCAD files' references must all be in the same folder. If it is set to false, the AutoCAD files' references can be stored in any place in the taxonomy tree. In this case, keep in mind that you should avoid document name duplication. There is an automation called CheckUniqueDocumentName which can help you to maintain this restriction. |
| extension.cadviewer.debug | Boolean |
Set to true to view the commands executed during conversion in the log file. For debugging purposes only. |
| extension.cadviewer.remove.temp.files | Boolean |
Set to false to keep the temporary files created during conversion. For debugging purposes only. |
| extension.cadviewer.qr.url | String | The URL of the QR code application: http://openkm.your-domain.com/qrcad/ |
| extension.cadviewer.qr.user | String | Name of the user of the QR code application. |
| extension.cadviewer.qr.password | Password | The password of the user of the QR code application. |
| extension.cadviewer.qr.pos_x | Integer | X percent from the lower-left where to place the QR code in the AutoCAD file. |
| extension.cadviewer.qr.pos_y | Integer | Y percent from the lower-left where to place the QR code in the AutoCAD file. |
| extension.cadviewer.qr.width | Integer | QR code width as a percentage. |
These utilities can be downloaded from https://cadviewer.com/alldownloads/
CADViewer has several licenses:
- axlic.key: This is the license for the autoxchange executable. This should be placed in the same directory as the executable, typically the $TOMCAT_HOME/bin/cadviewer folder.
- dl_lic.key: This is the license for the dwglist executable. This should be placed in the same directory as the executable, typically the $TOMCAT_HOME/bin/cadviewer folder.
- dm_lic.key: This is the license for the dwgmerge executable. This should be placed in the same directory as the executable, typically the $TOMCAT_HOME/bin/cadviewer folder.
- ll_lic.key: This is the license for the linklist executable. This should be placed in the same directory as the executable, typically the $TOMCAT_HOME/bin/cadviewer folder.
- JavaScript CAD previewer license: This license key is configured using the extension.cadviewer.license.key configuration property (since OpenKM v7.1.32)
If you have problems with the conversion, try executing it from the command line. For example, this would perform a PDF conversion:
$ ./autoxchange -i=test.dwg -f=pdf
On Linux, ensure you have configured the LD_LIBRARY_PATH properly. On Windows, the program may fail because VCRUNTIME140.DLL is missing. If you see this error, download the Microsoft Visual C++ 2015 Redistributable from https://www.microsoft.com/en-us/download/details.aspx?id=52685 and install it.
There is also a script that may help by setting the correct libraries path:
$ ./cad2svg test.dwg
The resulting "test.svg" file can be viewed with any browser and you will see whether the license was set up correctly.
To enable this extension, go to Administration > Utilities > Database query. At the bottom right, select the JDBC option, and paste the SQL insert into the box:
INSERT INTO OKM_EXTENSION (EXT_UUID, EXT_NAME) VALUES ('38a9d032-30b9-470d-93ad-47f5e4f93f97', 'External Tab Document');
Configuring Automations:
| Name | Event | At | Validations | Actions |
|---|---|---|---|---|
| CAD Create | Document create |
post |
Type: NameMatches |
Type: NewCadReferences |
| CAD Update Pre | Document update | pre | Type: NameMatches Param 0: .+\.[dD][wW][gG] |
Type: DelCadReferences Order: 0 |
| CAD Update Post | Document update | post | Type: NameMatches Param 0: .+\.[dD][wW][gG] |
Type: NewCadReferences Order: 0 |
| CAD Delete | Document delete | pre |
Type: NameMatches |
Type: DelCadReferences Order: 0 |
| CAD Folder Delete | Folder delete | pre |
Type: PathContains |
Type: DelCadReferences |
If you are using the old UI, you need to use an extension, but keep in mind this will be unsupported soon.
To view external references for each AutoCAD document, you must set the value of the configuration key extension.external.tab.document. To do it, go to Administration > Configuration and set the appropriate value for this key:
extension.external.tab.document = References;/openkm/frontend/XRefsYou can use this SQL statement to set the configuration property. Go to Administration > Utilities > Database query and execute:
INSERT INTO OKM_CONFIG (CFG_KEY, CFG_TYPE, CFG_VALUE) VALUES ('extension.external.tab.document', 'list', 'References;/openkm/frontend/XRefs');Troubleshooting

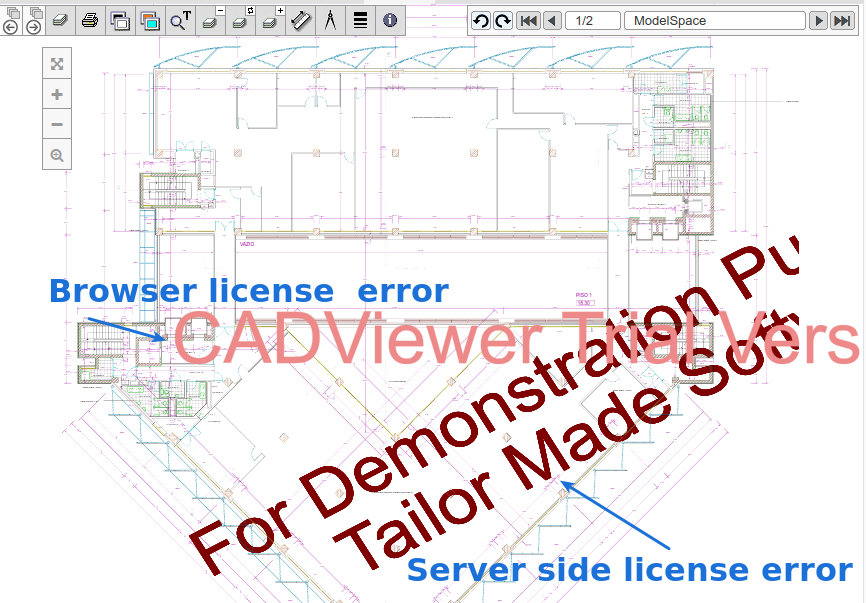

Mainly there are two license problems: one related to the client-side (browser) license, and the other related to the server-side conversion utilities.
Client side (browser)
These problems are related to the CADViewer JavaScript previewer. The license set in extension.cadviewer.license.key configuration property is incorrect.
You can identify this issue by the "CADViewer Trial Version" watermark.
To solve this issue, set the correct key in the extension.cadviewer.license.key configuration property and refresh the browser.
Server side (utilities)
These problems are generated by CADViewer conversion utilities installed on the server. This license is configured in the axlic.key file on the server.
You can identify this issue by the "For Demonstration Purposes / Tailor Made Software" watermark.
To solve this issue, copy the correct axlic.key license file to the OpenKM server. Once copied, please go to Administration > Utilities > Clean Conversion Cache and clean the SVG cache.
You can verify the license this way:
$ ax2023 -verify
This parameter is only available in a recent AutoXchange version.
