Server configuration

The packet for the query is too large (MySQL)

If you get an error like this:

You need to modify your MySQL server configuration file and increase the value of the max_allowed_packet property. Don't forget to restart MySQL after any change in this file. In Debian-based distros like Ubuntu, this configuration file is located at /etc/mysql/my.cnf.

Unable to connect from another computer on the network

If you expose the Tomcat port 8080, ensure it is bound to your IP; the "address" parameter value should be "0.0.0.0" in  $TOMCAT_HOME/conf/server.xml:

<Connector port="8080" address="0.0.0.0" protocol="HTTP/1.1"
           connectionTimeout="20000"
           redirectPort="8443" />

Error downloading document as PDF

This error is usually caused by the LibreOffice service configuration.

IMAP SSL certificate error

First, obtain the certificate with the openssl command, and after this, import the certificate with the following:

The OpenKM server has no direct Internet connection.

If you need a proxy to access the Internet, edit your "/etc/bash.bashrc" file as root and put these lines at the end of your "/etc/bash.bashrc" file:

export http_proxy=http://username:password@proxyserver.net:port/
export ftp_proxy=http://username:password@proxyserver.net:port/

You can omit the username and password if your proxy server does not require them.

Access denied when installing OpenKM as a service on Windows 7

The command shell works slightly differently in Vista. By default, when you run cmd.exe, it does not give administrator rights. To get around it, create a shortcut to cmd.exe on the desktop, open the Properties > Compatibility tab, and check the box for Administrator rights. Then you can perform administrative tasks on the command line.

Problems with character encodings

If your language contains non-ASCII characters that are displayed as garbage, you have a problem with encodings.

Check the $TOMCAT/bin/setenv.sh or  $TOMCAT/bin/setenv.bat file. You should set the JVM parameter "-Dfile.encoding=utf-8".

PermGen errors

If you see this error:

java.lang.OutOfMemoryError: PermGen space

Edit your "$TOMCAT_HOME/bin/setenv.sh" (or "$TOMCAT_HOME/bin/setenv.bat" if using Windows) and increase the value of the JVM parameter "-XX:MaxPermSize":

JAVA_OPTS="-Xms256m -Xmx2048m -XX:PermSize=128m -XX:MaxPermSize=512m"

See also Presenting the Permanent Generation.

LDAP Size limit exceeded

This is caused because the bindDN has a size limit for each LDAP query.

In OpenLDAP, the solution is to increase the bindDN limit; for example, change the size limit for the user used by the OpenKM LDAP connection.

limits dn.exact="cn=reader,ou=accounts,ou=admins,dc=example,dc=com" size=100000

See also OpenLDAP Limits.

Behind the IIS proxy, you get error 404 or 404.15

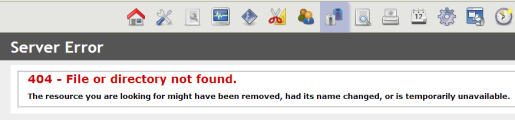

When using IIS as a web server, it has a limit for the query string sent to the server. If the limit is exceeded, you get an error screen on the client side:

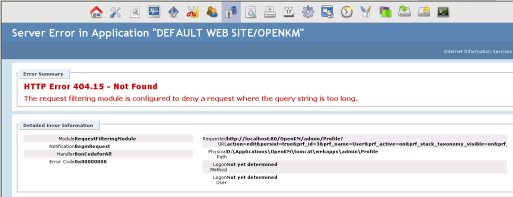

On the server side, we get a more detailed error:

To solve this issue, we need to increase the maximum size of the query string on the web server:

• Open Internet Information Services (IIS) Manager.
• In the Connections pane, go to the connection > site > application or directory for which you want to modify your request filtering settings.

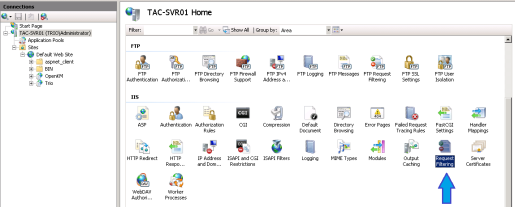

• In the Home pane, double-click Request Filtering.

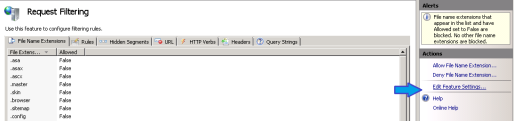

Click Edit Feature Settings... in the Actions pane.

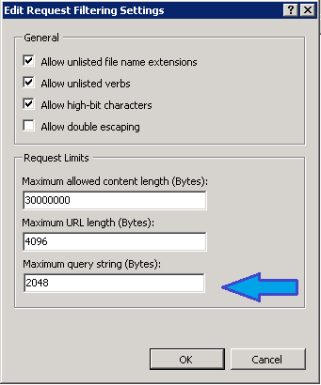

Change the maximum query string length:

More information is available on the OpenKM forum.

IIS gets IOException: Internal Server Error while uploading a file or HTTP 413 Request Entity Too Large Error

This error may appear when uploading a large document to OpenKM.

Solution one

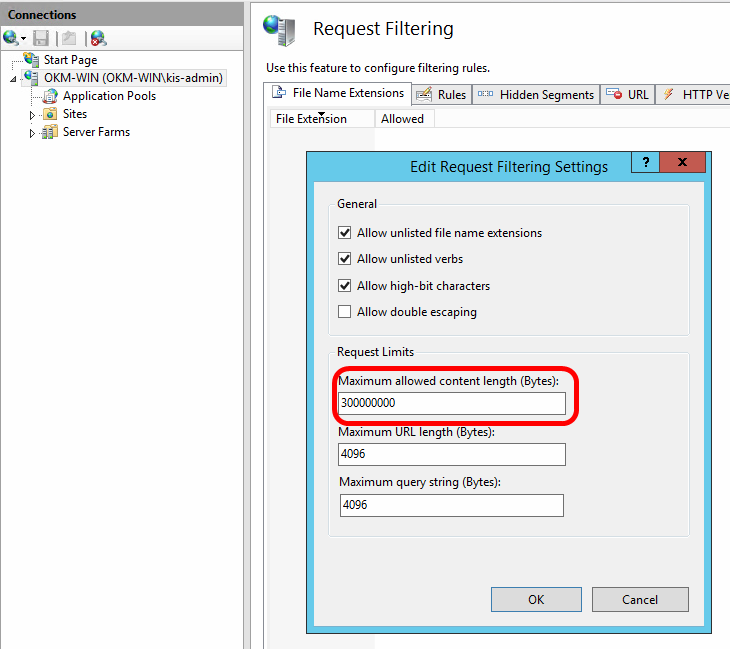

Change the "Maximum allowed content length (Bytes)" in your IIS configuration settings:

Solution two

• Go to the webapps folder
• Edit the web.config file and add the following under <configuration>, where "2097151" is the maximum allowed in IIS:

<system.web>
   <httpRuntime maxRequestLength="2097151" />
</system.web>

If there is no web.config, create one from a text file and add the following:

<configuration>
   <system.web>
      <httpRuntime maxRequestLength="2097151" />
   </system.web>
</configuration>

CMIS wrong URL behind Nginx proxy

Use this configuration:

location /OpenKM/ {
   proxy_pass http://127.0.0.1:8080/OpenKM/;
   proxy_redirect off;

   proxy_set_header Host $host;
   proxy_set_header X-Real-IP $remote_addr;
   proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}

Sigar java.lang.UnsatisfiedLinkError Known issue on Windows

If you have OpenOffice or LibreOffice configured and you get the error "sigar java.lang.UnsatisfiedLinkError", you have probably omitted the "sigar path" from the "PATH" environment variable.

Caused by: java.lang.UnsatisfiedLinkError: org.hyperic.sigar.Sigar.getSigNum(Ljava/lang/String;)I
	at org.hyperic.sigar.Sigar.getSigNum(Native Method)
	at org.hyperic.sigar.Sigar.kill(Sigar.java:275)

Edit your general environment variable "PATH" and add your "$TOMCAT_HOME\lib\sigar" folder; for example: PATH=...;C:\tomcat-7.0.27\lib\sigar

WARN net.sf.ehcache.hibernate.strategy.AbstractReadWriteEhcacheAccessStrategy

If you see this message:

A soft-locked cache entry was expired by the underlying Ehcache.
If this happens regularly you should consider increasing the cache timeouts and/or capacity limit

If you are not experiencing any performance or usability problems due to this warning, then treat it as a warning.

Otherwise, it looks like the solution is to increase the size of maxElementsInMemory to account for the difference in what is cached versus what is being used.

LibreOffice is not starting on Windows.

Sometimes it is not easy to get OpenKM's soffice service started for several reasons, which depend on your Windows OS version and other specific server configuration.

First, ensure your OpenOffice path is correctly configured at Administration > Configuration parameters > "system.openoffice.program" parameter.

Ensure there's no other soffice.bin instance running. If there's another soffice.bin instance running, OpenKM will not be able to start its soffice service. Check the running processes on Windows or use a tool like Process Explorer.

Stop the firewall and other tools that might prevent the soffice service from starting—for example, antivirus software.

Try starting the application from the command line at "%TOMCAT_HOME/bin":
