External tab folder extension

The External Tab Folder feature helps you to show tab content in the properties tab based on external URL requests when a node folder is selected.

This option is only available if you have enabled the External tab folder feature.

There are two parameters passed as request parameters in URL requests:

  • The document UUID.
  • The download URL.

Configuration

Field / PropertyTypeDescription

extension.external.tab.folder

List

Each row is a couple of values with a tab content declaration; the format is: name;URL

name1;http://localhost:8180/OpenKM/test.jsp
name2;http://www.openkm.com

More information at Configuration parameters.

Sample

Configuration

Create file named test.jsp and copy into $TOMCAT_HOME/webapps/OpenKM folder.

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>External URL request example</title>
</head>
<body>
	Request parameters
	<br />
	<br />
	<b>uuid:</b><%=request.getParameter("uuid")%><br />
</body>
</html>

Usage

  • Choose a folder.

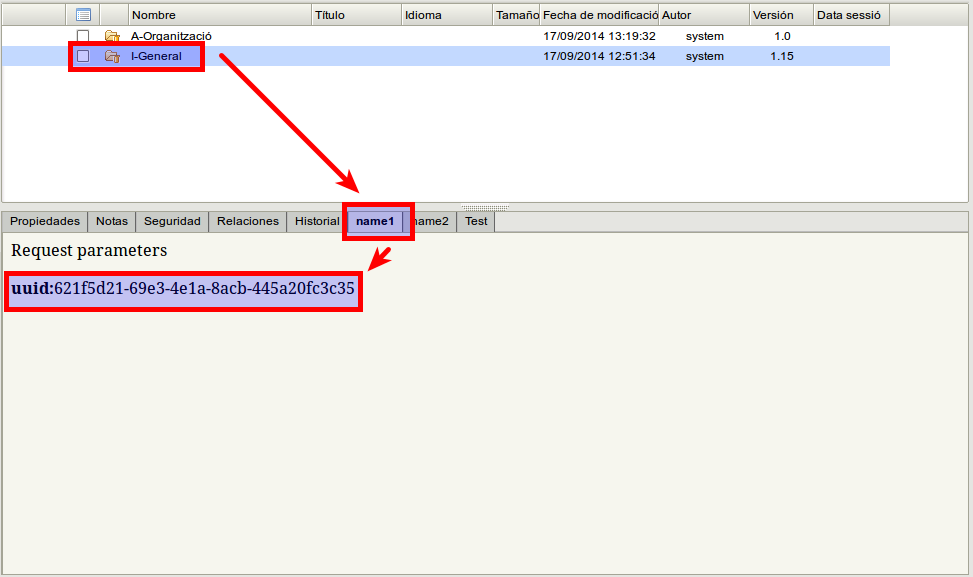

  • Click on "name1" tab.

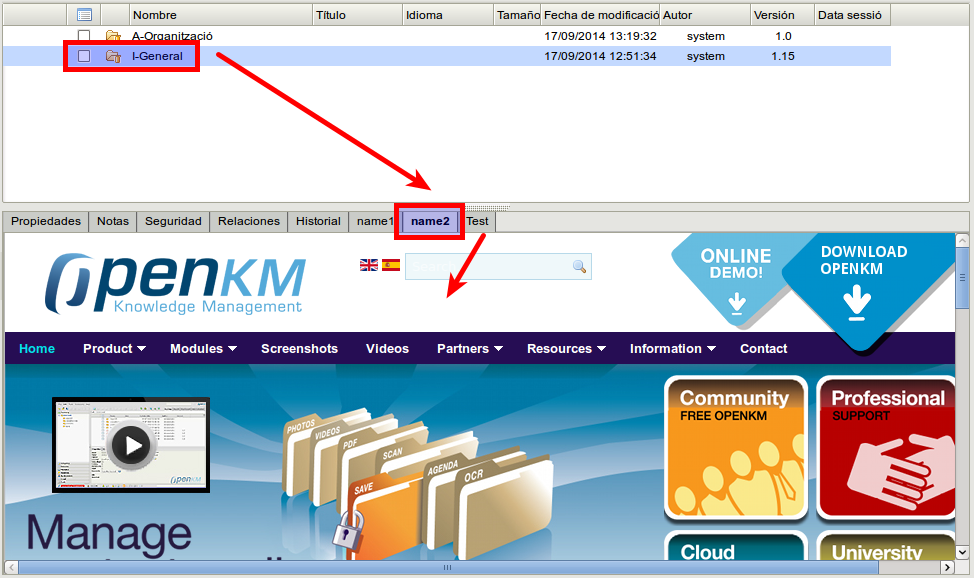

  • Click on "name2" tab.
