Word Add-in 6.1.x

Word Add-in enables users to upload new files and edit existing OpenKM files.

When a user uploads new files, they browse the OpenKM tree view to select where they want to upload the file.

The OpenKM Word Add-in detects if the document opened by a user is an OpenKM file and enables or disables some toolbar options.

After installing the Outlook add-in, a new menu item “OpenKM” will appear in Outlook.

Details of the functions according to their icons:

Button	Action
	Add-in configuration.
	Add new document.
	Document edit (check-out)
	Upload modified document (check-in)
	Cancel document edit
	Compare versions
	Help

Configure OpenKM Add-In

OpenKM version 6.3.8

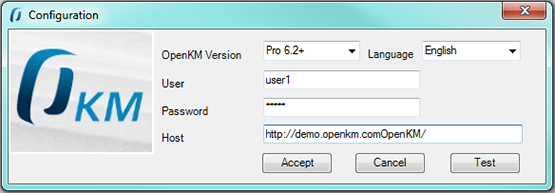

First you must select the OpenKM toolbar option to set your configuration values to access OpenKM from the client computer. If you’ve got other OpenKM Add-Ins already installed, this may not be needed.

OpenKM version 6.3.9 and above

First, you must choose the Configuration menu item to set your configuration values to access OpenKM from the client computer.

Property	Type	Description
Language	Select	MS Add-in user interface language.
User	String	User ID for accessing OpenKM. okmAdmin
Password	String	The user’s password. admin
Host	String	OpenKM URL. http://localhost:8080/OpenKM/
Add metadata	Bool	To enable/disable the metadata selection form.

When you set your configuration values, a folder called OpenKM is created in your user My Documents folder. In this OpenKM folder, a configuration file called openkm.xml and another file called document.xml are created, which the OpenKM Add-in uses to store some document editing information. You should not edit or delete these files.

Uploading a new file

Click on the add new document button. A folder tree view will be shown. You must select the folder where you want to upload the file.

Click on the Send button; the document will then be uploaded to OpenKM, and a notification message will be shown.

Editing an OpenKM document

Click on the document edit button. A folder navigator will appear. You must navigate through folders and select a document that you want to edit.

When you have an OpenKM document open, the Upload modified document (check-in) and Cancel document edit toolbar options will be enabled.

To upload a modified document, use the Upload modified document (check-in) toolbar button.
To cancel document editing, use the Cancel document edit toolbar button.

Compare versions

Clicking on the “Compare versions” button will display the version history in a pop-up allowing you to select a version to compare.

Log

In My Documents/OpenKM there’s a log file called WordAddin.log with a complete log trace.
