External preview extension
OpenKM 7.1 comes with two user interfaces, called "classic" and "kcenter". Although both functionally are very similar, the layout and the way they are used may have significant differences. This page is based in the "classic" user interface. If you are using the "kcenter" user interface and have any doubts to access any of these features, please create a ticket in the support website.
The External Preview feature helps you to preview documents based on external URL request.
This option is only available if you have enabled the External preview feature.
There are two parameters passed as request parameter in URL request:
- The document uuid.
- The downloadUrl.
Configuration
| Field / Property | Type | Description |
|---|---|---|
|
extension.external.preview |
List |
Each row couple of values is a preview content declaration, the format is: mime-type;url application/illustrator;http://localhost:8180/openkm/test.jsp |
More information at Configuration parameters.
Sample
Configuration
Create file named test.jsp and copy into $TOMCAT_HOME/webapps/openkm folder.
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<title>External URL request example</title>
</head>
<body>
Request parameters
<br />
<br />
<b>uuid:</b><%=request.getParameter("uuid")%><br />
<br />
<b>dowloadUrl:</b><%=request.getParameter("dowloadUrl")%><br />
</body>
</html>Usage

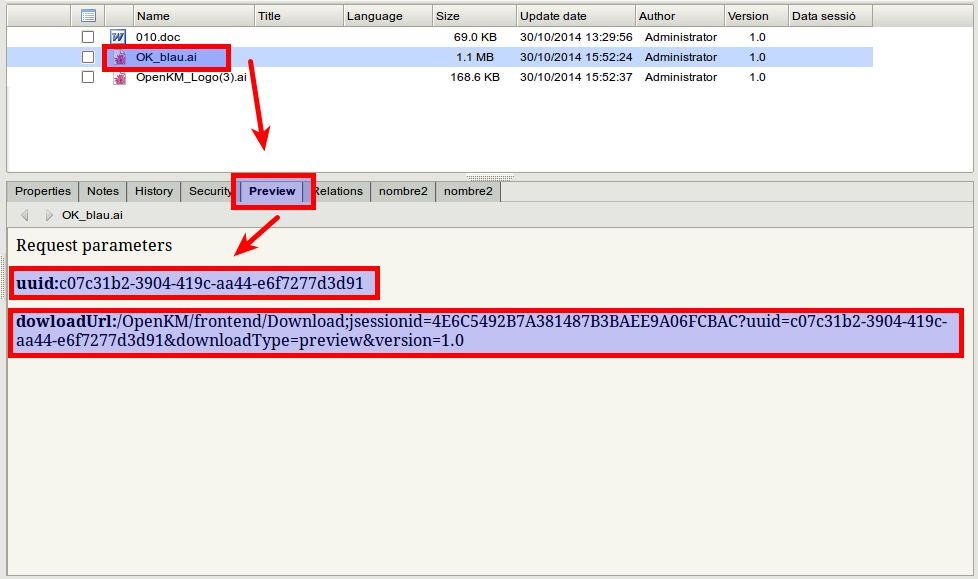

- Choose a document with one of the MIME type set in configuration parameters.
- Show preview tab. Will be shown the external URL based on document mime-type.
