Configuring Apache HTTP Reverse-Proxy ( Windows )

Exposing OpenKM directly from Tomcat can be dangerous if you need the application to be accessed from the Internet (for example https://issues.jboss.org/browse/JBAS-3861). As a result you can be infected by PerlBot. Also port 8080 may be blocked by a firewall. For these reasons, it is a good practice to expose your OpenKM installation through the standard web port 80. In the following steps we explain how to configure Apache to handle these requests and forward them to the Tomcat application server using the AJP13 protocol.

From the Apache documentation: The AJP13 protocol is packet-oriented. A binary format was presumably chosen over the more readable plain text for performance reasons. The web server communicates with the servlet container over TCP connections. To cut down on the expensive process of socket creation, the web server will attempt to maintain persistent TCP connections to the servlet container, and to reuse a connection for multiple request/response cycles.

Internal IP vs external IP

Your OpenKM can be accessed from two different zones: Internet and LAN. This means that to access this server you need to use two IP addresses: external IP (Internet) and internal IP (LAN).

The internal IP address (also known as “local IP address”) is the address that is assigned by your local network router and often begins with 192.168.x.x. These IP addresses can only be seen by other computers in your local network (LAN) and not by any computer connected in an external network such as the Internet.

To reach the Internet or a computer in another network your computer is often assigned an external IP address, which can then be used to refer to the computer in your local network.

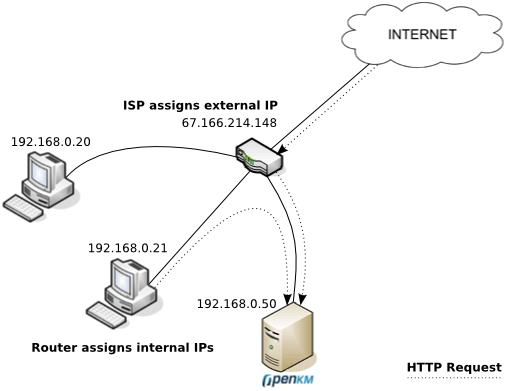

In the above picture, there are three computers in the local network that have each been assigned their own internal IP address by the router. The ISP is connected to the router and gives the router an external IP address that allows it to communicate with the Internet. On the Internet everyone sees your external IP address, but any information coming from the router is “converted” from the external IP address to the internal IP address.

So if you want your OpenKM installation to be accessible from both LAN and Internet, the trick here is to configure the client computers to resolve your internal IP (192.168.0.50) if they are inside the LAN or the external IP if they are on the Internet. To resolve the Internet IP (67.166.214.148) your computer uses the public DNS. So, you need to configure a local DNS server inside the LAN or modify every client’s hosts file to resolve to the internal IP.

Installing Apache HTTP Server

Apache does not distribute official Windows binaries. Download a Win64 build, together with the matching Visual C++ Redistributable, from Apache Lounge.

Caution

Install the Visual C++ Redistributable (vc_redist_x64.exe) with the default options before touching Apache. It is a mandatory requirement: without it, the Apache service will not start.

Extract the downloaded ZIP file, which contains an Apache24 folder, directly to the root of C:\, so that it ends up as C:\Apache24. Avoid any path containing spaces, such as Program Files.

Register Apache as a Windows service from an elevated CMD console:

C:\> cd C:\Apache24\bin
C:\Apache24\bin> httpd.exe -k install

Check that the configuration is valid; it should return Syntax OK:

C:\Apache24\bin> httpd.exe -t

Start the service:

C:\Apache24\bin> httpd.exe -k start

The service can also be started, stopped or restarted from the Windows Services panel, looking for Apache2.4.

Browsing to http://localhost/ should show the Apache “It works!” page.

Note

If port 80 is already in use by another application, change Listen 80 to a different port (e.g. Listen 8080) in httpd.conf.

Configuring OpenKM on port 80 (HTTP reverse proxy)

Enable the AJP connector on the OpenKM/Tomcat server, editing tomcat\conf\server.xml and uncommenting:

<!-- Define an AJP 1.3 Connector on port 8009 -->
<Connector protocol="AJP/1.3" secretRequired="false"
           address="127.0.0.1"
           port="8009"
           redirectPort="8443" />

Save the file and restart the OpenKM/Tomcat service so the AJP connector starts listening on port 8009.

Tip

As a good security practice, restrict the HTTP connector on port 8080 to only listen locally, so it cannot be reached directly from outside the server – all external traffic should go through Apache:

<!-- Before -->
<Connector port="8080" address="0.0.0.0" protocol="HTTP/1.1"
           connectionTimeout="20000"
           redirectPort="8443" />

<!-- After -->
<Connector port="8080" address="127.0.0.1" protocol="HTTP/1.1"
           connectionTimeout="20000"
           redirectPort="8443" />

This change also requires restarting the OpenKM/Tomcat service to take effect.

Unlike Linux, where modules are enabled with a2enmod, the Apache Lounge Windows build already ships every standard module compiled as a .so file under C:\Apache24\modules\. You only need to uncomment the matching LoadModule lines in C:\Apache24\conf\httpd.conf:

LoadModule proxy_module modules/mod_proxy.so
LoadModule proxy_ajp_module modules/mod_proxy_ajp.so
LoadModule proxy_http_module modules/mod_proxy_http.so
LoadModule proxy_wstunnel_module modules/mod_proxy_wstunnel.so
LoadModule rewrite_module modules/mod_rewrite.so
LoadModule headers_module modules/mod_headers.so

Include the OpenKM configuration file in httpd.conf, next to the other Include directives:

# OpenKM
Include conf/extra/openkm.conf

Note

Without this line, Apache never reads openkm.conf, even if the file physically exists inside the extra folder.

Create C:\Apache24\conf\extra\openkm.conf with this content:

<VirtualHost *:80>
  ServerName openkm.your-domain.com
  ServerAlias 192.168.10.230
  RedirectMatch ^/$ /openkm

  # WebSocket support - needs mod_proxy_wstunnel
  ProxyPass /openkm/frontend/webSocket ws://127.0.0.1:8080/openkm/frontend/webSocket
  ProxyPassReverse /openkm/frontend/webSocket ws://127.0.0.1:8080/openkm/frontend/webSocket

  ProxyPass /openkm ajp://127.0.0.1:8009/openkm keepalive=On
  ProxyPassReverse /openkm http://openkm.your-domain.com/openkm

  ErrorLog logs/openkm-error.log
  CustomLog logs/openkm-access.log combined
</VirtualHost>

Note

Change openkm.your-domain.com to your own domain, and ServerAlias to your Apache server’s own IP so the VirtualHost also answers when accessed directly by IP. The ProxyPass/ProxyPassReverse URLs point to 127.0.0.1 because Tomcat/OpenKM runs on the same server as Apache; if it runs on a different server, use its address instead.

Check the configuration and restart Apache:

C:\> cd C:\Apache24\bin
C:\Apache24\bin> httpd.exe -t
C:\Apache24\bin> httpd.exe -k restart

Check access to your OpenKM installation at http://openkm.your-domain.com/, it should redirect to /openkm and load the application.

Caution

If the proxy to Tomcat fails, check that the AJP connector configured above is still active after restarting OpenKM (review the Tomcat startup log), and that Tomcat’s HTTP/WebSocket connector on port 8080 is up.

Requesting an SSL certificate

To serve OpenKM over HTTPS you need a certificate issued by a Certificate Authority. This example uses GoDaddy, but the same procedure applies to any other CA.

Create the certificates folder:

C:\> mkdir C:\Apache24\conf\certs

Set the OpenSSL configuration location:

C:\> set OPENSSL_CONF=C:\Apache24\conf\openssl.cnf

Caution

openssl.exe must be run from C:\Apache24\bin, not from conf\certs. Running it from any other folder produces the error:

Error configuring OpenSSL
...DSO support routines:WIN32_LOAD:could not load the shared library:...providers.dll)

This happens because openssl.exe needs to locate its DLLs and provider modules relative to bin.

Generate the CSR and the private key, run from C:\Apache24\bin, pointing the output paths to certs:

C:\> cd C:\Apache24\bin
C:\Apache24\bin> openssl.exe req -new -newkey rsa:2048 -nodes -keyout ..\conf\certs\openkm.your-domain.com.key -out ..\conf\certs\openkm.your-domain.com.csr

OpenSSL will prompt for the following data:

Field	Value
Common Name	openkm.your-domain.com (must match the domain exactly)
Organization	Legal company name
Organizational Unit	Optional, can be left blank
City/Locality	Full name, not abbreviated
State/Province	Full name, not abbreviated
Country	2-letter ISO code (e.g. ES)
Passphrase	Leave empty, otherwise Apache will ask for a password every time the service starts

Open the generated openkm.your-domain.com.csr file with Notepad, copy the full contents (including the -––BEGIN CERTIFICATE REQUEST—– and -––END CERTIFICATE REQUEST—– lines) and paste it into your CA’s certificate request form.

After validating the domain, the CA will provide, among others:

• The domain certificate itself, in text/Base64 format (.pem or .crt).
• The same certificate in binary/DER format – not used by Apache.
• An intermediate certificate bundle (e.g. gd_bundle-g2.crt.pem for GoDaddy).

Copy the certificate and the intermediate bundle into C:\Apache24\conf\certs\, next to the private key generated above.

Caution

Keep the private key (openkm.your-domain.com.key) generated together with the CSR: it is the one used in the final SSL configuration. If it is lost, the certificate issued by the CA becomes unusable and the whole CSR process has to be repeated.

Configuring OpenKM on port 443 (HTTPS)

Enable the SSL modules in httpd.conf:

LoadModule ssl_module modules/mod_ssl.so
LoadModule socache_shmcb_module modules/mod_socache_shmcb.so

Note

The socache_shmcb module is required by the SSLSessionCache directive. If it is missing, the service fails to start with:

SSLSessionCache: 'shmcb' session cache not supported... Maybe you need to load the appropriate socache module (mod_socache_shmcb?).

Include the SSL configuration at the end of httpd.conf:

Include conf/extra/httpd-ssl.conf

Edit C:\Apache24\conf\extra\httpd-ssl.conf. Keep the global SSL settings shipped by default (Listen 443, SSLCipherSuite, SSLProtocol, SSLSessionCache, etc., located before the VirtualHost block), and replace only the <VirtualHost _default_:443> block with:

<VirtualHost *:443>
  ServerName openkm.your-domain.com
  ServerAlias 192.168.10.230
  RedirectMatch ^/$ /openkm

  SSLEngine on
  SSLCertificateFile "C:/Apache24/conf/certs/openkm.your-domain.com.crt"
  SSLCertificateKeyFile "C:/Apache24/conf/certs/openkm.your-domain.com.key"
  SSLCertificateChainFile "C:/Apache24/conf/certs/gd_bundle-g2.crt.pem"

  ErrorLog "logs/openkm-ssl-error.log"
  TransferLog "logs/openkm-ssl-access.log"

  ProxyPass /openkm/frontend/webSocket wss://127.0.0.1:8080/openkm/frontend/webSocket
  ProxyPassReverse /openkm/frontend/webSocket wss://127.0.0.1:8080/openkm/frontend/webSocket

  ProxyPass /openkm ajp://127.0.0.1:8009/openkm
  ProxyPassReverse /openkm https://openkm.your-domain.com/openkm

  BrowserMatch "MSIE [2-5]" \
           nokeepalive ssl-unclean-shutdown \
           downgrade-1.0 force-response-1.0

  CustomLog "${SRVROOT}/logs/ssl_request_log" \
            "%t %h %{SSL_PROTOCOL}x %{SSL_CIPHER}x \"%r\" %b"
</VirtualHost>

Note

Compared to the default example block, the changes are: _default_:443 becomes *:443 (needed so it combines correctly with ServerAlias); ServerName, ServerAlias and RedirectMatch are added; the certificate paths point to the files under conf\certs; the ProxyPass/ProxyPassReverse directives towards OpenKM’s Tomcat are added; and the default DocumentRoot/ServerAdmin/logs are replaced with OpenKM’s own logs.

Check the configuration and restart Apache:

C:\> cd C:\Apache24\bin
C:\Apache24\bin> httpd.exe -t
C:\Apache24\bin> httpd.exe -k restart

Check access to your OpenKM installation at https://openkm.your-domain.com/. With a valid CA-issued certificate, the browser should load OpenKM without any certificate warning.

Redirecting HTTP requests to HTTPS

Once port 443 is confirmed to work correctly, simplify C:\Apache24\conf\extra\openkm.conf (which so far did the proxying directly over HTTP) so that it only redirects to HTTPS:

<VirtualHost *:80>
  ServerName openkm.your-domain.com
  ServerAlias 192.168.10.230
  Redirect permanent / https://openkm.your-domain.com/
</VirtualHost>

The ProxyPass/ProxyPassReverse directives are removed from this block, since the VirtualHost *:443 block is now the only one talking to OpenKM’s Tomcat.

Check the configuration and restart Apache:

C:\> cd C:\Apache24\bin
C:\Apache24\bin> httpd.exe -t
C:\Apache24\bin> httpd.exe -k restart

Browsing to http://openkm.your-domain.com/ should now redirect automatically to https://openkm.your-domain.com/, from where OpenKM loads correctly.

Summary of the final configuration files

File	Content
C:\Apache24\conf\httpd.conf	Modules (proxy, proxy_ajp, proxy_http, proxy_wstunnel, rewrite, headers, ssl, socache_shmcb), Include conf/extra/openkm.conf, Include conf/extra/httpd-ssl.conf
C:\Apache24\conf\extra\openkm.conf	VirtualHost *:80 – permanent redirect to HTTPS
C:\Apache24\conf\extra\httpd-ssl.conf	VirtualHost *:443 – AJP/WebSocket reverse proxy towards 127.0.0.1, CA-issued certificate
C:\Apache24\conf\certs\	openkm.your-domain.com.key, openkm.your-domain.com.csr, openkm.your-domain.com.crt, intermediate bundle

Troubleshooting

If, for defense in depth, you also want to prevent requests outside /openkm from serving Apache’s default “It works!” page or the default htdocs directory listing:

Point DocumentRoot to an empty, access-denied folder inside the VirtualHost:

DocumentRoot "C:/Apache24/htdocs-empty"

<Directory "C:/Apache24/htdocs-empty">
    Require all denied
</Directory>

C:\> mkdir C:\Apache24\htdocs-empty

And disable directory listing in the global section of httpd.conf (the <Directory “${SRVROOT}/htdocs”> block):

DocumentRoot "${SRVROOT}/htdocs"
<Directory "${SRVROOT}/htdocs">
    Options -Indexes +FollowSymLinks
    AllowOverride None
    Require all granted
</Directory>

Caution

All Options directives in the same inherited context must use the same style, either all with +/- or none of them. Mixing styles causes the error Either all Options must start with + or -, or no Option may. and the service will not start.

Additional information

• Apache Lounge – Apache HTTP Server binaries for Windows
• Apache Module mod_proxy
• Apache Module mod_proxy_ajp
• Apache Module mod_ssl
• Apache Tomcat 8 AJP Configuration Reference
