Crontab task - XML importer

Import files with metadata values from XML files.

Note

This is a crontab task based on a Java class packaged in a JAR.

• The files to be imported are stored at /home/openkm/import/Output on the OpenKM server. (Variable SYSTEM_FOLDER + Output).
• The XML files with metadata values are stored at /home/openkm/import/logfile on the OpenKM server. (Variable SYSTEM_FOLDER + logfile).
• The files are imported into the OpenKM folder “/okm:root/import”. (Variable OPENKM_FOLDER).

The crontab performs three actions:

• First, import all files from “/home/openkm/import/Output” and delete them from the server after they have been imported.
• Then load and parse XML files located at “/home/openkm/import/logfile” and set the metadata group values of the documents.
• Finally, the XML files are deleted.

Metadata group definition:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE property-groups PUBLIC "-//OpenKM//DTD Property Groups 3.10//EN"
                                 "http://www.openkm.com/dtd/property-groups-3.10.dtd">
<property-groups>
    <property-group label="Data" name="okg:xmldata">
        <input label="Folio" name="okp:xmldata.folio" type="text"/>
        <input label="Rut" name="okp:data.rut" type="text"/>
        <input label="Placa patente" name="okp:xmldata.placa" type="text"/>
        <input label="Nombre" name="okp:xmldata.nombres" type="text"/>
        <input label="Apellido parterno" name="okp:xmldata.apellido_padre" type="text"/>
        <input label="Apellido materno" name="okp:xmldata.apellido_madre" type="text"/>
        <input label="Año contable" name="okp:xmldata.year" type="text"/>
        <input label="Tipo documento" name="okp:xmldata.documento" type="text"/>
    </property-group>
</property-groups>

XML files structure:

<?xml version="1.0" ?>
<INDEX_LOG>
    <Batch BatchID="2013-04-16">
        <File>
            <Filename>10201200365212 - 01.pdf</Filename>
            <Fields>
                <Field>
                    <Name>Folio</Name>
                    <Value>10201200365245</Value>
                </Field>
                <Field>
                    <Name>Rut</Name>
                    <Value>9419475-JK</Value>
                </Field>
                <Field>
                    <Name>Placa Patente</Name>
                    <Value>XG412190</Value>
                </Field>
                <Field>
                    <Name>Nombres</Name>
                    <Value>JOSEP</Value>
                </Field>
                <Field>
                    <Name>Apellido Paterno</Name>
                    <Value>LLORT</Value>
                </Field>
                <Field>
                    <Name>Apellido Materno</Name>
                    <Value>TELLA</Value>
                </Field>
                <Field>
                    <Name>Año</Name>
                    <Value>2012</Value>
                </Field>
                <Field>
                    <Name>Tipo de Documento</Name>
                    <Value>Comprobante de Permiso</Value>
                </Field>
            </Fields>
        </File>
        <!-- etc. -->    </Batch>
</INDEX_LOG>

Java class:

package com.openkm.plugin.cron;

import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import javax.xml.parsers.DocumentBuilder;
import javax.xml.parsers.DocumentBuilderFactory;
import javax.xml.parsers.ParserConfigurationException;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.w3c.dom.Element;
import org.w3c.dom.Node;
import org.w3c.dom.NodeList;
import org.xml.sax.SAXException;

import com.openkm.api.OKMDocument;
import com.openkm.api.OKMPropertyGroup;
import com.openkm.api.OKMSearch;
import com.openkm.bean.Document;
import com.openkm.bean.PropertyGroup;
import com.openkm.bean.QueryResult;
import com.openkm.core.AccessDeniedException;
import com.openkm.core.DatabaseException;
import com.openkm.core.ItemExistsException;
import com.openkm.core.ParseException;
import com.openkm.core.PathNotFoundException;
import com.openkm.core.PromotedAsRecordLockException;
import com.openkm.core.RepositoryException;
import com.openkm.core.UnsupportedMimeTypeException;
import com.openkm.core.ValidationFormException;
import com.openkm.core.VirusDetectedException;
import com.openkm.db.bean.QueryParams;
import com.openkm.module.db.stuff.DbSessionManager;
import com.openkm.plugin.PluginNotFoundException;
import com.openkm.plugin.automation.AutomationException;
import com.openkm.principal.PrincipalAdapterException;

import net.xeoh.plugins.base.annotations.PluginImplementation;

@PluginImplementation
public class XmlImporter extends BaseCronPlugin implements CronAdapter {    private Logger log = LoggerFactory.getLogger(XmlImporter.class);
    private static final String SYSTEM_FOLDER = "/home/openkm/import";
    private static final String OPENKM_FOLDER = "/okm:root/import";
    private static final String ATTRIBUTE_FILENAME = "Filename";
    private static final String ATTRIBUTE_FIELDS = "Fields";
    private static final String ATTRIBUTE_FIELD = "Field";
    private static final String ATTRIBUTE_NAME = "Name";
    private static final String ATTRIBUTE_VALUE = "Value";
    private static final String FIELD_NAME_FOLIO = "folio";
    private static final String FIELD_NAME_RUT = "rut";
    private static final String FIELD_NAME_PLACA_PATENTE = "placa patente";
    private static final String FIELD_NAME_NOMBRES = "nombres";
    private static final String FIELD_NAME_APELLIDO_PATERNO = "apellido paterno";
    private static final String FIELD_NAME_APELLIDO_MATERNO = "apellido materno";
    private static final String FIELD_NAME_ANO = "año";
    private static final String FIELD_NAME_TIPO_DOCUMENTO = "tipo de documento";

    @Autowired
    private OKMDocument okmDocument;

    @Autowired
    private OKMSearch okmSearch;

    @Autowired
    private OKMPropertyGroup okmPropertyGroup;

    private String token = DbSessionManager.getInstance().getSystemToken();

    @Override
    public String getName() {
        return "Xml Importer";
    }

    @Override
    public String getCronExpression() {
        return "0 5 * * * *";
    }

    @Override
    public void execute() {
        try {
            importFiles();
            importMetadata();
        } catch (Exception e) {
            log.error(e.getMessage());
            e.getStackTrace();
        }
    }

    /**
     * importMetadata
     */
    public void importMetadata() throws PathNotFoundException, AccessDeniedException, RepositoryException, DatabaseException,
            AutomationException, PluginNotFoundException, ValidationFormException, ParseException, IOException,
            ParserConfigurationException, SAXException {
        String fileName = "";
        String folio = "";
        String rut = "";
        String placaPatente = "";
        String nombres = "";
        String apellidoPaterno = "";
        String apellidoMaterno = "";
        String ano = "";
        String tipoDocumento = "";

        File folder = new File(SYSTEM_FOLDER + "/logfile");
        File[] listOfFiles = folder.listFiles();

        for (int i = 0; i < listOfFiles.length; i++) {
            File xmlFile = listOfFiles[i];
            if (xmlFile.isFile() && xmlFile.getName().toLowerCase().endsWith("indexlog.xml")) {
                DocumentBuilderFactory dbf = DocumentBuilderFactory.newInstance();
                dbf.setNamespaceAware(true);
                dbf.setAttribute("http://xml.org/sax/features/namespaces", Boolean.TRUE);

                DocumentBuilder db = dbf.newDocumentBuilder();
                org.w3c.dom.Document xmlDoc = db.parse(xmlFile);
                xmlDoc.getDocumentElement().normalize();
                NodeList fileNodesList = xmlDoc.getElementsByTagName("File");

                for (int x = 0; x < fileNodesList.getLength(); x++) {
                    fileName = "";
                    folio = "";
                    rut = "";
                    placaPatente = "";
                    nombres = "";
                    apellidoPaterno = "";
                    apellidoMaterno = "";
                    ano = "";
                    tipoDocumento = "";
                    Node childFildNode = fileNodesList.item(x);

                    if (childFildNode.getNodeType() == Node.ELEMENT_NODE) {
                        Element fileElement = (Element) childFildNode; // attibute node
                        fileName = fileElement.getElementsByTagName(ATTRIBUTE_FILENAME).item(0).getTextContent();
                        Node fieldsNode = fileElement.getElementsByTagName(ATTRIBUTE_FIELDS).item(0); // Only one

                        // Fields
                        if (fieldsNode.getNodeType() == Node.ELEMENT_NODE) {
                            Element fieldsElement = (Element) fieldsNode; // fields

                            // node
                            NodeList fieldList = fieldsElement.getElementsByTagName(ATTRIBUTE_FIELD);
                            for (int y = 0; y < fieldList.getLength(); y++) {
                                Node fieldNode = fieldList.item(y);
                                if (fieldNode.getNodeType() == Node.ELEMENT_NODE) {
                                    Element fieldElement = (Element) fieldNode; // attibute

                                    // node
                                    String name = fieldElement.getElementsByTagName(ATTRIBUTE_NAME).item(0).getTextContent()
                                            .trim();
                                    String value = fieldElement.getElementsByTagName(ATTRIBUTE_VALUE).item(0).getTextContent()
                                            .trim();

                                    if (name.toLowerCase().equals(FIELD_NAME_FOLIO)) {
                                        folio = value;
                                    } else if (name.toLowerCase().equals(FIELD_NAME_RUT)) {
                                        rut = value;
                                    } else if (name.toLowerCase().equals(FIELD_NAME_PLACA_PATENTE)) {
                                        placaPatente = value;
                                    } else if (name.toLowerCase().equals(FIELD_NAME_NOMBRES)) {
                                        nombres = value;
                                    } else if (name.toLowerCase().equals(FIELD_NAME_APELLIDO_PATERNO)) {
                                        apellidoPaterno = value;
                                    } else if (name.toLowerCase().equals(FIELD_NAME_APELLIDO_MATERNO)) {
                                        apellidoMaterno = value;
                                    } else if (name.toLowerCase().equals(FIELD_NAME_ANO)) {
                                        ano = value;
                                    } else if (name.toLowerCase().equals(FIELD_NAME_TIPO_DOCUMENTO)) {
                                        tipoDocumento = value;
                                    }
                                }
                            }
                        }

                        if (fileName != null && !fileName.equals("")) {
                            QueryParams queryParams = new QueryParams();
                            queryParams.setDomain(QueryParams.DOCUMENT);
                            queryParams.setName(fileName);
                            List<QueryResult> results = okmSearch.find(token, queryParams);

                            if (results.size() == 1) {
                                for (QueryResult queryResult : results) {
                                    if (queryResult.getNode() != null && queryResult.getNode() instanceof Document) {
                                        log.info(fileName + " -ok");
                                        boolean found = false;

                                        for (PropertyGroup group : okmPropertyGroup.getGroups(token,
                                                queryResult.getNode().getPath())) {
                                            if (group.getName().equals("okg:xmldata")) {
                                                found = true;
                                            }
                                        }

                                        Map<String, String> properties = new HashMap<String, String>();
                                        properties.put("okp:xmldata.folio", folio);
                                        properties.put("okp:xmldata.rut", rut);
                                        properties.put("okp:xmldata.placa", placaPatente);
                                        properties.put("okp:xmldata.nombres", nombres);
                                        properties.put("okp:xmldata.apellido_padre", apellidoPaterno);
                                        properties.put("okp:xmldata.apellido_madre", apellidoMaterno);
                                        properties.put("okp:xmldata.year", ano);
                                        properties.put("okp:xmldata.documento", tipoDocumento);
                                        if (!found) {
                                            okmPropertyGroup.addGroup(token, queryResult.getNode().getPath(), "okg:xmldata",
                                                    properties);
                                        } else {
                                            okmPropertyGroup.setProperties(token, queryResult.getNode().getPath(), "okg:xmldata",
                                                    properties);
                                        }
                                    }
                                }
                            } else if (results.size() > 1) {
                                log.error(fileName + " - error");
                            } else {
                                log.error(fileName + " - not found");
                            }
                        }
                    }
                }

                xmlFile.delete();
            }
        }
    }

    /**
     * importFiles
     */
    public void importFiles() throws UnsupportedMimeTypeException, VirusDetectedException, ItemExistsException,
            PathNotFoundException, AccessDeniedException, RepositoryException, DatabaseException, AutomationException,
            PromotedAsRecordLockException, PrincipalAdapterException, IOException {
        // Loading files
        File folder = new File(SYSTEM_FOLDER + "/Output");
        File[] listOfFiles = folder.listFiles();
        for (int i = 0; i < listOfFiles.length; i++) {
            File file = listOfFiles[i];
            if (file.isFile() && file.getName().toLowerCase().endsWith(".pdf")) {
                Document doc = new Document();
                doc.setPath(OPENKM_FOLDER + "/" + file.getName());
                FileInputStream fis = new FileInputStream(file);
                doc = okmDocument.create(token, doc, fis);
                file.delete();
            }
        }
    }
}

Register a new plugin

• To install the new plugin, create a JAR file and copy it into your $TOMCAT/plugins folder—more information at Creating a JAR file with Eclipse.
• Go to Administration > Utilities > Plugins and click the Reload plugins button at the top right.
• In Plugins, the new plugin will be shown in the table.

Images

Crontab task

Register metadata definition

Logfile folder

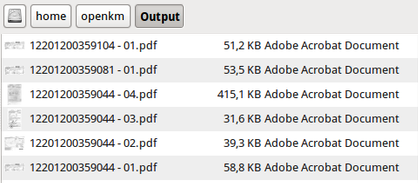

Output folder

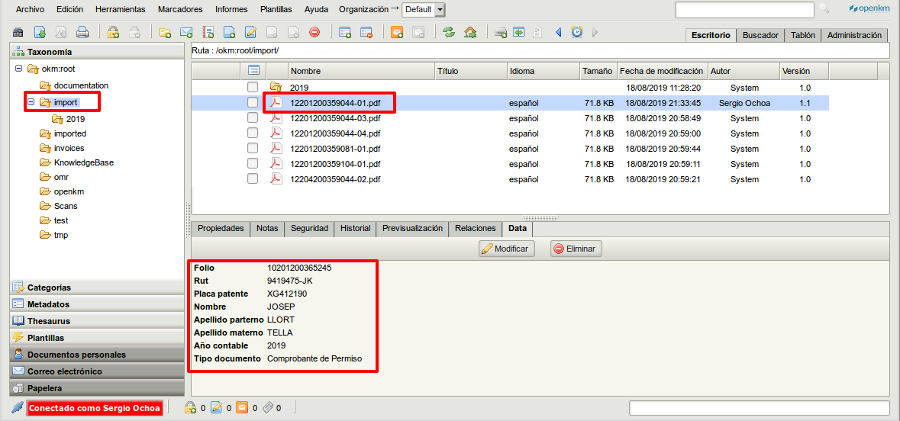

Result
