Installing on Windows

Preliminaries

Check that you have enough disk space.

We recommend installing these tools:

Notepad++ (text editor)
Geany (text editor).
mTail (Windows program that works like the Unix command “tail”).

Checking Java version

C:\> java -version

If Java is correctly installed on your computer, the name and version of the Java virtual machine are displayed:

openjdk version "11.0.20.1"
OpenJDK Runtime Environment
OpenJDK 64-Bit Server VM

We also recommend setting the JAVA_HOME variable:

setx JAVA_HOME "C:\Program Files\Java\jdk11.0.20.1" /M

Install Java

If the required version of Java is not installed on your computer:

Download it from the Microsoft website and choose the right platform for your hardware and Windows version.
Run the MSI file and follow the instructions displayed.

Installing database

Install MySQL if you do not already have it installed:

Download MySQL MSI Installer from MySQL Community Server and follow the installation wizard steps.

Check InnoDB is the default MySQL engine

show engines;

If it is not the default, modify c:\ProgramData\MySQL\MySQL Server 8.0.34\my.ini

and under [mysqld], add

default-storage-engine = innodb

Create database

CREATE DATABASE okmdb DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_bin;
CREATE USER openkm@localhost IDENTIFIED BY 'password';
GRANT ALL ON okmdb.* TO openkm@localhost WITH GRANT OPTION;

Installing Tomcat

Unzip Tomcat-9.0.76.zip to c:\

Configuring Tomcat as a service

cd c:\tomcat-9.0.76\bin
service.bat install

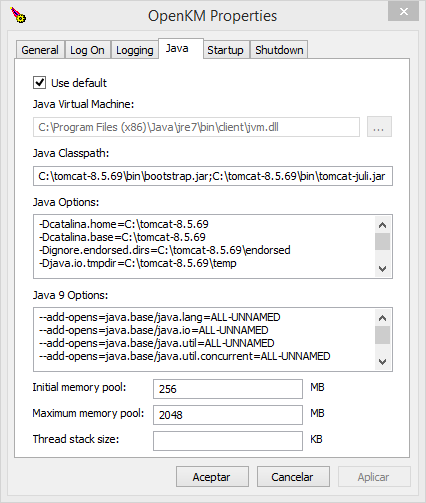

Set the JVM parameters for the Tomcat service:

cd c:\tomcat-9.0.76\bin
openkm //US//OpenKM ++JvmOptions="-Xms1024m"
openkm //US//OpenKM ++JvmOptions="-Xmx4096m"
openkm //US//OpenKM ++JvmOptions="-XX:+UseG1GC"
openkm //US//OpenKM ++JvmOptions="-XX:+UseStringDeduplication"
openkm //US//OpenKM ++JvmOptions="-XX:+HeapDumpOnOutOfMemoryError"
openkm //US//OpenKM ++JvmOptions="-XX:HeapDumpPath=%CATALINA_HOME%"
openkm //US//OpenKM ++JvmOptions="-Djava.net.preferIPv4Stack=true"
openkm //US//OpenKM ++JvmOptions="-Dmail.mime.ignoreunknownencoding=true"
openkm //US//OpenKM ++JvmOptions="-Dfile.encoding=UTF-8"
openkm //US//OpenKM ++JvmOptions="-Dsun.jnu.encoding=UTF-8"
openkm //US//OpenKM ++JvmOptions="-Djava.awt.headless=true"
openkm //US//OpenKM ++JvmOptions="-Dsun.java2d.cmm=sun.java2d.cmm.kcms.KcmsServiceProvider"

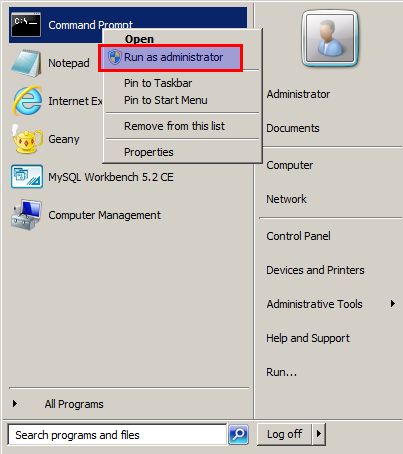

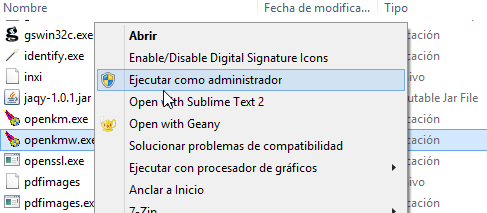

Execute the openkmw.exe as administrator:

Check the configuration parameters:

Check the service

From terminal

Start the service:

$ net start OpenKM

Stop the service:

$ net stop OpenKM

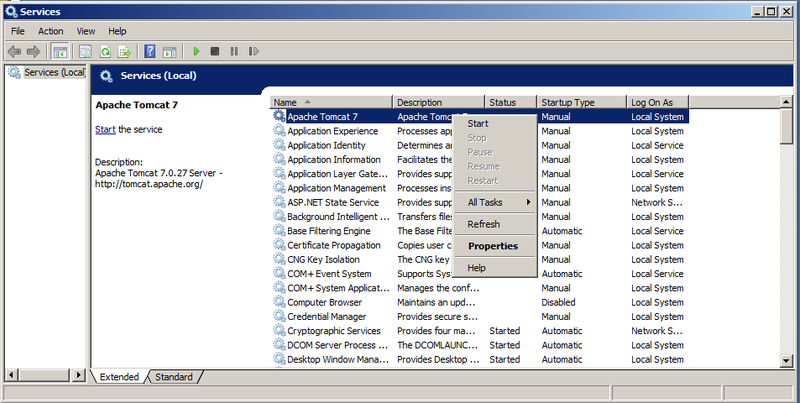

From the Windows service panel

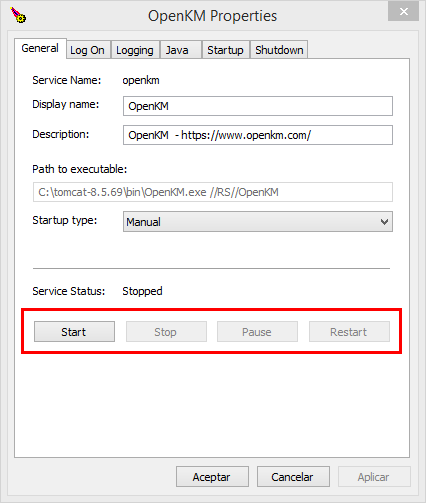

From the openkmw tool

Configuring environment variables

Add the bin folder to the environment PATH variable:

setx PATH "%PATH%;C:\tomcat-9.0.76\bin" /M

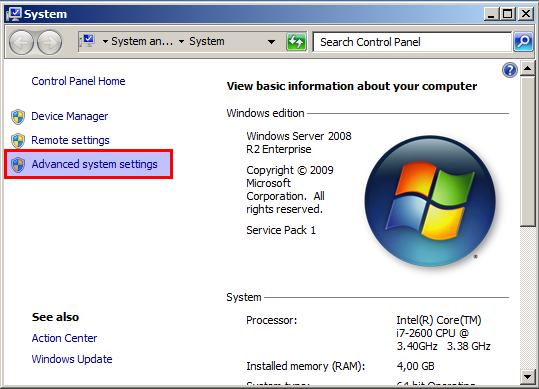

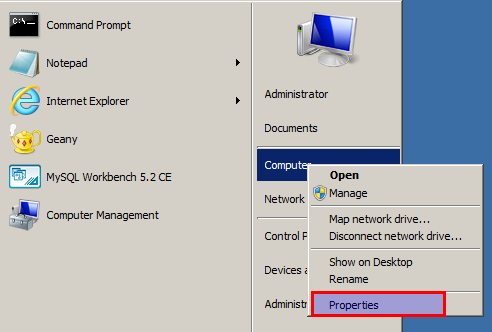

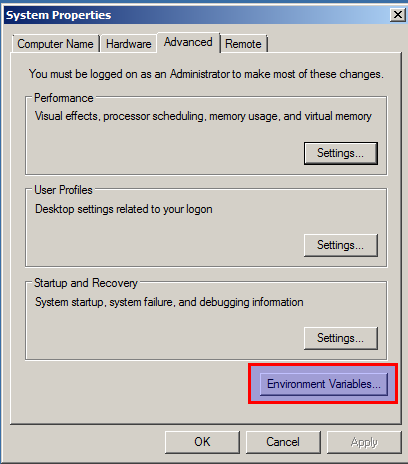

These operations can also be done from Windows environment variables:

Installing OpenKM

With Tomcat stopped, copy the OpenKM.war file into /home/openkm/tomcat-9.0.76/webapps

$ copy openkm.war c:\tomcat-9.0.76\webapps

Install third-party software:

Software	Required	Description
LibreOffice	Yes	We recommend using LibreOffice because it is compatible with Microsoft Office formats.
Tesseract	No	Download from https://tesseract-ocr.github.io/tessdoc/Installation.html and follow the installation wizard.
ClamAV	No	Download from http://www.clamav.net/download.html and follow the installation wizard.
ImageMagick	No	The Tomcat bundle comes with an embedded convert tool. If you decide to install it, go to http://www.imagemagick.org/script/binary-releases.php, download the latest binary release, and follow the installation wizard. Take into consideration that 16-bit builds need more hardware resources than 8-bit builds. We suggest ImageMagick-6.9.1-7-Q8-x64-dll.exe rather than ImageMagick-6.9.1-7-Q16-x64-dll.exe (note the version numbering may differ due to ImageMagick version upgrades).
GhostScript	No	The Tomcat bundle comes with an embedded Ghostscript tool. Go to http://ghostscript.com/download/gsdnld.html and follow the installation wizard if you decide to install it.

Start application

Check openkm.properties parameters

C:\> geany c:\openkm\openkm.properties

Your configuration should be something like this:

# OpenKM Hibernate configuration values
hibernate.dialect=com.openkm.db.dialect.MySQL5InnoDBDialect
hibernate.hbm2ddl=create-only

# Initial configuration - Windows
system.libreoffice.path=C:/Program Files (x86)/LibreOffice

First-time application start:

$ net start OpenKM

When the application is started, you’ll see it in the log file in the lines:

2015-07-04 18:28:10,680 [main] INFO  org.apache.coyote.http11.Http11Protocol - Starting ProtocolHandler ["http-bio-0.0.0.0-8080"]
2015-07-04 18:28:10,688 [main] INFO  org.apache.coyote.ajp.AjpProtocol - Starting ProtocolHandler ["ajp-bio-127.0.0.1-8009"]
2015-07-04 18:28:10,692 [main] INFO  org.apache.catalina.startup.Catalina - Server startup in 41456 ms

The application will be accessible at http://YOUR_IP:8080/openkm by user:okmAdmin with password: admin. (Do not forget to change it.) For more information: Manage users and roles.

Enable the extensions you need (for example Live Edit and HTML Editor) in the profile Misc > Extensions selector. See Enable extensions for details.

Access from other computers

Access from other computers will be denied by default due to Windows Firewall configuration. To enable access from anywhere, please execute this command:

netsh advfirewall firewall add rule name="OpenKM" dir=in action=allow protocol=TCP localport=8080

Other standard additional setup configurations

OpenKM comes with many configuration parameters. Please take a look at Recommended configuration parameters.
