External widget dashboard extension
The External widget dashboard feature helps you display card content in the dashboard panel based on an external URL request.
Configuration
Section titled “Configuration”| Field / Property | Type | Description |
|---|---|---|
| extension.external.widget.dashboard | List | Each row is a set of values with a tab content declaration; the format is: label;url;height Label 1;http://localhost:8180/openkm/test.jsp;370 Label 2;http://www.openkm.com;240 The default height of the card in the dashboard is 370 pixels. When you embed a URL in an iframe that is on a subdomain different from the application’s domain, you must include that domain in the configuration; otherwise, the browser will block it for security reasons. You can find more information about the okm.content.security.policy configuration parameter in the section Experimental configuration parameters |
| webservices.visible.properties | List | To make the values of the parameter “extension.external.widget.dashboard” accessible to all users, the parameter name “extension.external.widget.dashboard” must be added to the current list. If you forget to add the property name, only administrators will be able to retrieve the value, so some extensions may produce errors for regular users. |

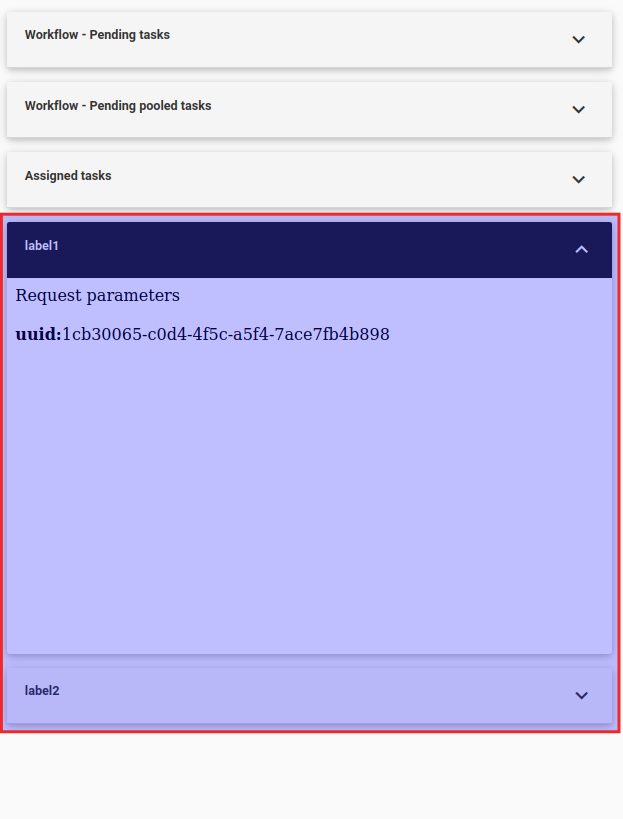

Sample
Section titled “Sample”Configuration
Section titled “Configuration”Create a file named test.jsp and copy it into the $TOMCAT_HOME/webapps/openkm folder.
<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%><?xml version="1.0" encoding="UTF-8" ?><!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"><html xmlns="http://www.w3.org/1999/xhtml"><head><title>External URL request example</title></head><body> Request parameters <br /> <br /> <b>uuid:</b><%=request.getParameter("uuid")%><br /></body></html>
