Reports pack

Tip

Most of these reports are based on the Activity log events audit trail.

For more information Activity log.

Template reports

Name	Uses Activity log	Requires parameters	Description
JavaReportPattern.jrxml	No.	No.	Template pattern that uses Java to retrieve data.
SQLReportPattern.jrxml	No.	No.	Template pattern that uses SQL to retrieve data.
subreport-sample.rep	No.	No.	Subreport sample. Support for subreports is available starting from version 8.1.15.

Authentication

Name	Uses Activity log	Requires parameters	Description
UsersLogin.rep	Yes.	Yes.	User logins, filtered by date range.
UsersLogout.rep	Yes.	Yes.	User logouts, filtered by date range.
UsersSessionExpiration.rep	Yes.	Yes.	Users whose sessions expired, filtered by date range.

Documents

Name	Uses Activity log	Requires parameters	Description
DocumentCanceledCheckout.rep	Yes.	Yes.	Lists documents for which editing was canceled, filtered by date range.
DocumentCheckin.rep	Yes.	Yes.	Lists documents that were updated, filtered by date range.
DocumentCheckout.rep	Yes.	Yes.	Lists documents that are being edited, filtered by date range.
DocumentCreate.rep	Yes.	Yes.	Lists documents that were created, filtered by date range.
DocumentDelete.rep	Yes.	Yes.	Lists documents that were deleted, filtered by date range.
DocumentGetChildren.rep	Yes.	Yes.	Shows when users listed documents in a folder or record. Results are filtered by date range. To list documents in a folder, an internal method named “getChildren” is called.
DocumentContent.rep	Yes.	Yes.	Shows when users retrieved the content of a document. Results are filtered by date range. For example, when a user downloads or previews a document (among other actions), they are retrieving the document’s content.
DocumentContentByVersion.rep	Yes.	Yes.	Shows when users retrieved a specific version of a document’s content. Results are filtered by date range.
DocumentGetProperties.rep	Yes.	Yes.	Shows when a user retrieved the properties of a document. Results are filtered by date range. For example, when a document is selected, an internal method named “getProperties” is called to fill the contents of the properties tab in the user interface.
DocumentGetVersionHistory.rep	Yes.	Yes.	Shown when users retrieve the list of all versions of a document. Results are filtered by date range.
DocumentGetPropertyGroupProperties.rep	Yes.	Yes.	Shows when the fields of a metadata group have been retrieved. For example, when a metadata group is shown in the user interface, an internal method named “getPropertyGroupProperties” is called to fill the metadata group values.
DocumentLock.rep	Yes.	Yes.	Lists documents that were updated, filtered by date range.
DocumentMove.rep	Yes.	Yes.	Lists documents that were moved, filtered by date range.
DocumentPurge.rep	Yes.	Yes.	Lists documents that were purged, filtered by date range. When a document is purged, it will permanently disappear from the application repository.
DocumentRenamed.rep	Yes.	Yes.	Lists documents that were renamed, filtered by date range.
DocumentUnlock.rep	Yes.	Yes.	Lists documents that were unlocked, filtered by date range.
DocumentsAccessibleByUserOrdered.jrxml	No.	No.	Retrieves a list of available documents (security filtered) ordered by folder name. Optimized for CSV format. Not recommended for large repositories; it can take a long time.
DuplicatedFiles-v-7.1.23.jrxml	No.	No.	This report can only be used with version 7.1.23 or higher. List of duplicated files in the application repository, based on document checksum.
DuplicatedFiles.jrxml	No.	No.	This report can only be used with version 7.1.22 or lower. List of duplicated files in the application repository, based on document checksum.
ListDocumentsWithChecksum.rep	No.	Yes.	List of all documents in some folders and subfolders with checksum values.

Folders

Name	Uses Activity log	Requires parameters	Description
FolderCopy.rep	Yes.	Yes.	Lists folders copied, filtered by date range.
FolderCreate.rep	Yes.	Yes.	Lists folders created, filtered by date range.
FolderDelete.rep	Yes.	Yes.	Lists folders deleted, filtered by date range.
FolderGetChildren.rep	Yes.	Yes.	Shows when users listed folders in a folder or record. Results are filtered by date range. To list folders in a folder, an internal method named “getChildren” is called.
FolderGetContentInfo.rep	Yes.	Yes.	Shown when the internal method named “getContentInfo” has been executed. To perform some operations, it is necessary to calculate folder depth, for example before starting a folder ZIP download. There’s an internal method named “getContentInfo” that does it.
FolderGetProperties.rep	Yes.	Yes.	Shows when a user retrieved the properties of a folder. Results are filtered by date range. For example, when a folder is selected, an internal method named “getProperties” is called to fill the contents of the properties tab in the user interface.
FolderMove.rep	Yes.	Yes.	Lists folders that were moved, filtered by date range.
FolderPurge.rep	Yes.	Yes.	Lists folders that were purged, filtered by date range. When a folder is purged, it will permanently disappear from the application repository.
FolderRename.rep	Yes.	Yes.	Lists folders that were renamed, filtered by date range.
FolderSecurity.rep	No.	Yes.	Lists folders and subfolders showing security settings regarding roles and/or users.
FolderGetSize.rep	No.	Yes.	Lists folders and subfolders showing the size of each one.

Mails

Name	Uses Activity log	Requires parameters	Description
MailCreate.rep	Yes.	Yes.	Lists mails that were created, filtered by date range.
MailGetProperties.rep	Yes.	Yes.	Shown when a user retrieves the properties of a mail. Results are filtered by date range. For example, when a mail is selected, an internal method named “getProperties” is called to fill the contents of the properties tab in the user interface.
MailPurge.rep	Yes.	Yes.	Lists mails that were purged, filtered by date range. When a mail is purged, it will permanently disappear from the application repository.
MailRename.rep	Yes.	Yes.	Lists mails that were renamed, filtered by date range.
MailMove.rep	Yes.	Yes.	Lists mails that were moved, filtered by date range.
MailCopy.rep	Yes.	Yes.	Lists mails that were copied, filtered by date range.
MailGetChildren.rep	Yes.	Yes.	Shows when users listed mails in a folder or record. Results are filtered by date range. To list mails in a folder, an internal method named “getChildren” is called.

Others

Name	Uses Activity log	Requires parameters	Description
TenantUserQuota.jrxml	No.	No.	Document size (in MB) by user and tenant.
WorkflowWorkload.jrxml	No.	No.	Each workflow task and the time spent on it.
RegisteredUsers.jrxml	No.	No.	Registered users.

Subreports

Note

Quick guide on how to create a subreport

Restrictions:

• The name of the subreport must always start with “subreport-”, for example, subreport-roles.jrxml.

• In the main report, you must create a parameter with the same name as the subreport (without the extension). For example, if the subreport is named subreport-roles.jrxml, the parameter should be named subreport-roles, and the associated class should be net.sf.jasperreports.engine.JasperReport.

• The expression in the subreport must correspond to the value of the created parameter. Following the example from the previous point, it should be $P{subreport-roles}.

• Both reports must share the same database connection.

XML sections sample

In the main JRXML, define the subreport parameter:

<parameter name="subreport-roles" class="net.sf.jasperreports.engine.JasperReport"/>

Then in the subreport element, use the parameter reference:

<subreport>
    <reportElement x="0" y="0" width="200" height="100"/>
    <subreportExpression><![CDATA[$P{subreport-roles}]]></subreportExpression>
</subreport>

The key points are:

• The parameter name must match the filename without the extension used in the REP (ZIP file).
• Parameter type must be JasperReport.
• Use $P{parameter-name} in the subreportExpression.
• Remove any file path references from the subreportExpression.

How it works in the background:

• The OpenKM core loads the subreport from the REP (ZIP file).
• It adds it to the params map with the correct name.
• JasperReports finds it via the parameter reference instead of a file path.

Screenshots

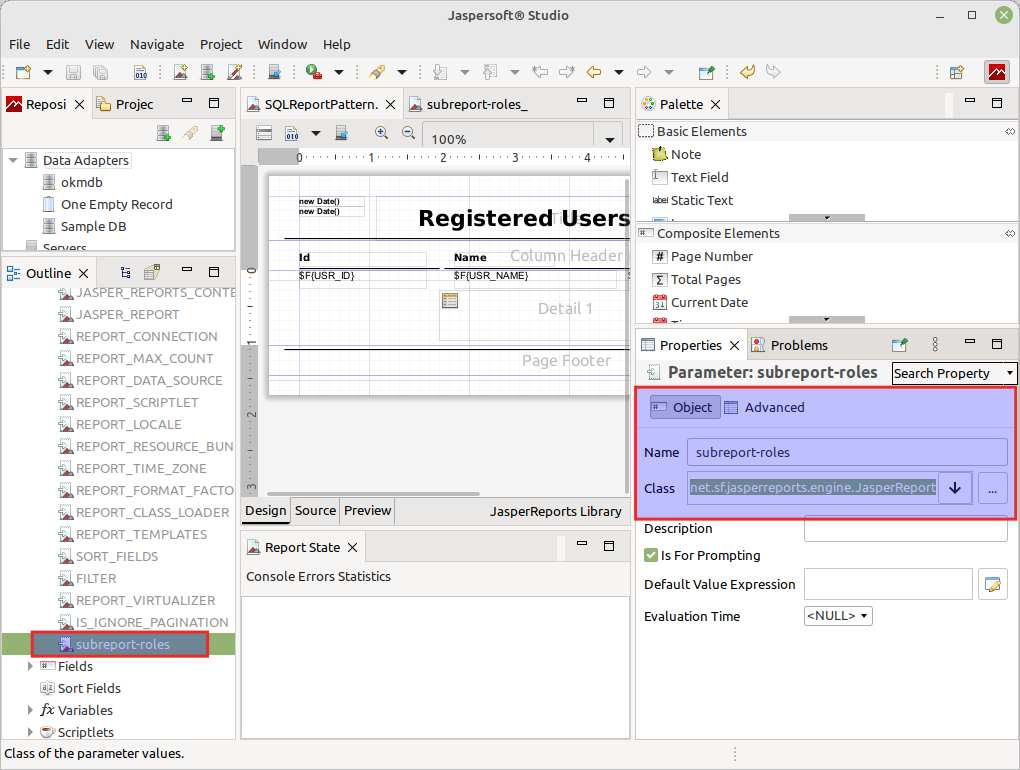

Subreport parameter

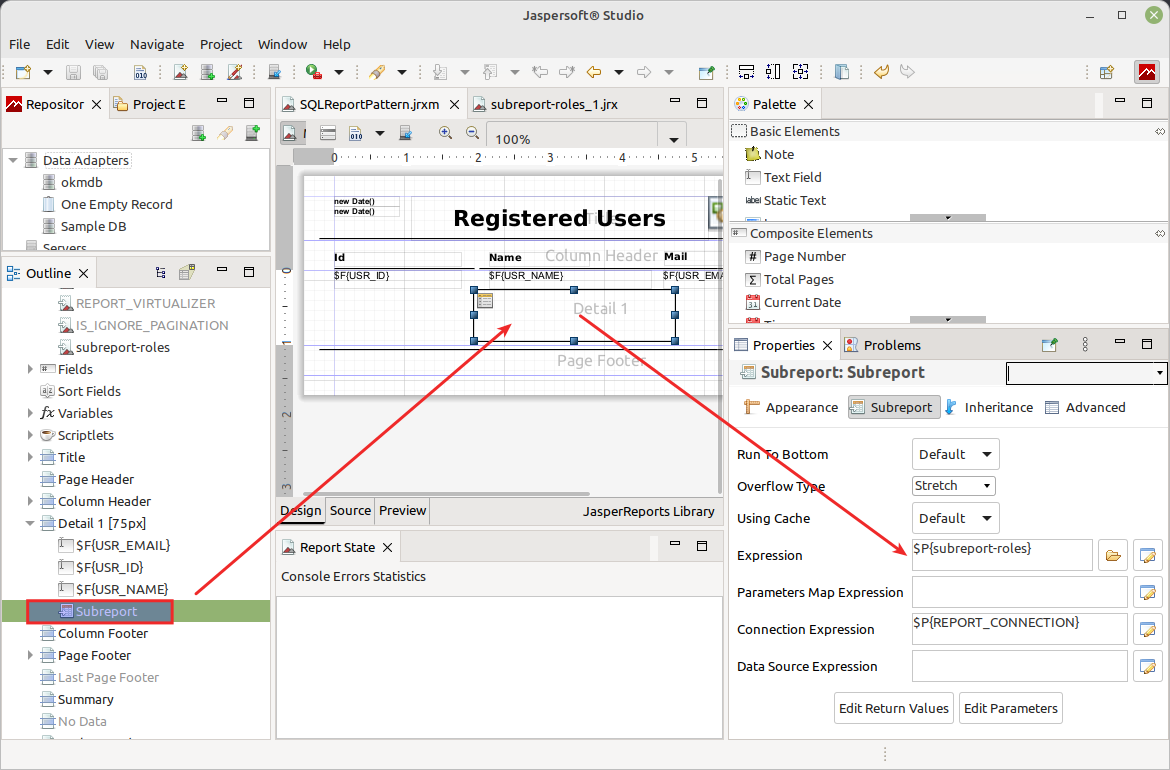

Subreport expression

Suggestions during development

The dynamic configuration of subreports through parameters will work once the report is deployed in OpenKM, but it will not work in the Jasper Studio application. On the other hand, configuring subreports with file system paths will work in Jasper Studio but will likely not work in OpenKM (we do not recommend using paths).

During development, you will likely want to test the report from the Jasper Studio application before deploying it to production. For this reason, we recommend setting the report path directly (file system path) during this phase of development, and once completed, modify it to use dynamic access via the parameter mentioned earlier.
