Resolución de problemas con MySQL 8

 Could not create connection to database server

Pueden existir varias razones por las que la aplicación no logra establecer la conexión con la base de datos; consulte el archivo de registro, que puede darle pistas sobre lo que está ocurriendo.

Strong Password Encryption for Authentication

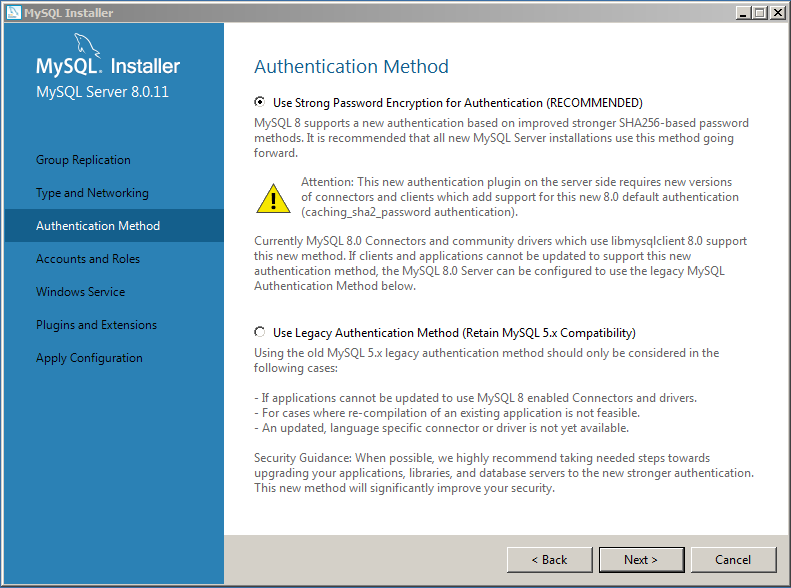

El último asistente de instalación de MySQL le sugiere utilizar “Strong Password Encryption for Authentication”, como puede verse en la siguiente captura de pantalla:

Cuando se habilita la opción “Strong Password Encryption for Authentication” en lugar de “Legacy Authentication Method”, se está habilitando la conexión SSL por defecto. Eso significa que quizá deba leer algo de documentación y aplicar algunos cambios en la configuración de conexión de su server.xml para conectarse con la base de datos. Normalmente, en este escenario obtendrá un error como el que se muestra a continuación:

java.sql.SQLException: Cannot create PoolableConnectionFactory (Could not create connection to database server. Attempted reconnect 3 times. Giving up.)
  at org.apache.tomcat.dbcp.dbcp2.BasicDataSource.createPoolableConnectionFactory(BasicDataSource.java:2303) ~[tomcat-dbcp.jar:8.5.14]
  at org.apache.tomcat.dbcp.dbcp2.BasicDataSource.createDataSource(BasicDataSource.java:2043) ~[tomcat-dbcp.jar:8.5.14]
  at org.apache.tomcat.dbcp.dbcp2.BasicDataSource.getConnection(BasicDataSource.java:1543) ~[tomcat-dbcp.jar:8.5.14]
  at org.hibernate.connection.DatasourceConnectionProvider.getConnection(DatasourceConnectionProvider.java:92) ~[hibernate-core-3.6.10.Final.jar:3.6.10.Final]
  at org.hibernate.cfg.SettingsFactory.buildSettings(SettingsFactory.java:113) ~[hibernate-core-3.6.10.Final.jar:3.6.10.Final]
  at org.hibernate.cfg.Configuration.buildSettingsInternal(Configuration.java:2863) [hibernate-core-3.6.10.Final.jar:3.6.10.Final]
  at org.hibernate.cfg.Configuration.buildSettings(Configuration.java:2859) [hibernate-core-3.6.10.Final.jar:3.6.10.Final]
  at org.hibernate.cfg.Configuration.buildSessionFactory(Configuration.java:1870) [hibernate-core-3.6.10.Final.jar:3.6.10.Final]
  at com.openkm.dao.HibernateUtil.getSessionFactory(HibernateUtil.java:367) [classes/:6.4.43-DEV]
  at com.openkm.dao.HibernateUtil.getSessionFactory(HibernateUtil.java:182) [classes/:6.4.43-DEV]
  at com.openkm.servlet.RepositoryStartupServlet.init(RepositoryStartupServlet.java:99) [classes/:6.4.43-DEV]
  at javax.servlet.GenericServlet.init(GenericServlet.java:158) [servlet-api.jar:3.1.FR]
  at org.apache.catalina.core.StandardWrapper.initServlet(StandardWrapper.java:1183) [catalina.jar:8.5.14]
  at org.apache.catalina.core.StandardWrapper.loadServlet(StandardWrapper.java:1099) [catalina.jar:8.5.14]
  at org.apache.catalina.core.StandardWrapper.load(StandardWrapper.java:989) [catalina.jar:8.5.14]
  at org.apache.catalina.core.StandardContext.loadOnStartup(StandardContext.java:4931) [catalina.jar:8.5.14]
  at org.apache.catalina.core.StandardContext.startInternal(StandardContext.java:5241) [catalina.jar:8.5.14]
  at org.apache.catalina.util.LifecycleBase.start(LifecycleBase.java:150) [catalina.jar:8.5.14]
  at org.apache.catalina.core.ContainerBase.addChildInternal(ContainerBase.java:752) [catalina.jar:8.5.14]
  at org.apache.catalina.core.ContainerBase.addChild(ContainerBase.java:728) [catalina.jar:8.5.14]
  at org.apache.catalina.core.StandardHost.addChild(StandardHost.java:734) [catalina.jar:8.5.14]
  at org.apache.catalina.startup.HostConfig.deployWAR(HostConfig.java:952) [catalina.jar:8.5.14]
  at org.apache.catalina.startup.HostConfig$DeployWar.run(HostConfig.java:1823) [catalina.jar:8.5.14]
  at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511) [na:1.8.0_171]
  at java.util.concurrent.FutureTask.run(FutureTask.java:266) [na:1.8.0_171]
  at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [na:1.8.0_171]
  at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [na:1.8.0_171]
  at java.lang.Thread.run(Thread.java:748) [na:1.8.0_171]
Caused by: java.sql.SQLNonTransientConnectionException: Could not create connection to database server. Attempted reconnect 3 times. Giving up.
  at com.mysql.cj.jdbc.exceptions.SQLError.createSQLException(SQLError.java:108) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.jdbc.exceptions.SQLError.createSQLException(SQLError.java:95) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.jdbc.exceptions.SQLError.createSQLException(SQLError.java:87) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.jdbc.exceptions.SQLError.createSQLException(SQLError.java:61) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.jdbc.exceptions.SQLError.createSQLException(SQLError.java:71) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.jdbc.ConnectionImpl.connectWithRetries(ConnectionImpl.java:932) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:857) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.jdbc.ConnectionImpl.<init>(ConnectionImpl.java:444) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.jdbc.ConnectionImpl.getInstance(ConnectionImpl.java:230) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.jdbc.NonRegisteringDriver.connect(NonRegisteringDriver.java:226) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at org.apache.tomcat.dbcp.dbcp2.DriverConnectionFactory.createConnection(DriverConnectionFactory.java:38) ~[tomcat-dbcp.jar:8.5.14]
  at org.apache.tomcat.dbcp.dbcp2.PoolableConnectionFactory.makeObject(PoolableConnectionFactory.java:257) ~[tomcat-dbcp.jar:8.5.14]
  at org.apache.tomcat.dbcp.dbcp2.BasicDataSource.validateConnectionFactory(BasicDataSource.java:2313) ~[tomcat-dbcp.jar:8.5.14]
  at org.apache.tomcat.dbcp.dbcp2.BasicDataSource.createPoolableConnectionFactory(BasicDataSource.java:2299) ~[tomcat-dbcp.jar:8.5.14]
  ... 27 common frames omitted
Caused by: com.mysql.cj.exceptions.CJCommunicationsException: Communications link failure

The last packet sent successfully to the server was 0 milliseconds ago. The driver has not received any packets from the server.
  at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method) ~[na:1.8.0_171]
  at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62) ~[na:1.8.0_171]
  at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45) ~[na:1.8.0_171]
  at java.lang.reflect.Constructor.newInstance(Constructor.java:423) ~[na:1.8.0_171]
  at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:59) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:103) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:149) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.exceptions.ExceptionFactory.createCommunicationsException(ExceptionFactory.java:165) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.protocol.a.NativeProtocol.negotiateSSLConnection(NativeProtocol.java:355) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.protocol.a.NativeAuthenticationProvider.negotiateSSLConnection(NativeAuthenticationProvider.java:789) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.protocol.a.NativeAuthenticationProvider.proceedHandshakeWithPluggableAuthentication(NativeAuthenticationProvider.java:499) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.protocol.a.NativeAuthenticationProvider.connect(NativeAuthenticationProvider.java:217) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.protocol.a.NativeProtocol.connect(NativeProtocol.java:1411) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.NativeSession.connect(NativeSession.java:165) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.jdbc.ConnectionImpl.connectWithRetries(ConnectionImpl.java:876) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  ... 35 common frames omitted
Caused by: javax.net.ssl.SSLHandshakeException: java.security.cert.CertificateException: java.security.cert.CertPathValidatorException: Path does not chain with any of the trust anchors
  at sun.security.ssl.Alerts.getSSLException(Alerts.java:192) ~[na:1.8.0_171]
  at sun.security.ssl.SSLSocketImpl.fatal(SSLSocketImpl.java:1964) ~[na:1.8.0_171]
  at sun.security.ssl.Handshaker.fatalSE(Handshaker.java:328) ~[na:1.8.0_171]
  at sun.security.ssl.Handshaker.fatalSE(Handshaker.java:322) ~[na:1.8.0_171]
  at sun.security.ssl.ClientHandshaker.serverCertificate(ClientHandshaker.java:1614) ~[na:1.8.0_171]
  at sun.security.ssl.ClientHandshaker.processMessage(ClientHandshaker.java:216) ~[na:1.8.0_171]
  at sun.security.ssl.Handshaker.processLoop(Handshaker.java:1052) ~[na:1.8.0_171]
  at sun.security.ssl.Handshaker.process_record(Handshaker.java:987) ~[na:1.8.0_171]
  at sun.security.ssl.SSLSocketImpl.readRecord(SSLSocketImpl.java:1072) ~[na:1.8.0_171]
  at sun.security.ssl.SSLSocketImpl.performInitialHandshake(SSLSocketImpl.java:1385) ~[na:1.8.0_171]
  at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1413) ~[na:1.8.0_171]
  at sun.security.ssl.SSLSocketImpl.startHandshake(SSLSocketImpl.java:1397) ~[na:1.8.0_171]
  at com.mysql.cj.protocol.ExportControlled.performTlsHandshake(ExportControlled.java:213) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.protocol.StandardSocketFactory.performTlsHandshake(StandardSocketFactory.java:206) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.protocol.a.NativeSocketConnection.performTlsHandshake(NativeSocketConnection.java:99) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.protocol.a.NativeProtocol.negotiateSSLConnection(NativeProtocol.java:350) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  ... 41 common frames omitted
Caused by: java.security.cert.CertificateException: java.security.cert.CertPathValidatorException: Path does not chain with any of the trust anchors
  at com.mysql.cj.protocol.ExportControlled$X509TrustManagerWrapper.checkServerTrusted(ExportControlled.java:280) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at sun.security.ssl.AbstractTrustManagerWrapper.checkServerTrusted(SSLContextImpl.java:985) ~[na:1.8.0_171]
  at sun.security.ssl.ClientHandshaker.serverCertificate(ClientHandshaker.java:1596) ~[na:1.8.0_171]
  ... 52 common frames omitted
Caused by: java.security.cert.CertPathValidatorException: Path does not chain with any of the trust anchors
  at sun.security.provider.certpath.PKIXCertPathValidator.validate(PKIXCertPathValidator.java:154) ~[na:1.8.0_171]
  at sun.security.provider.certpath.PKIXCertPathValidator.engineValidate(PKIXCertPathValidator.java:80) ~[na:1.8.0_171]
  at java.security.cert.CertPathValidator.validate(CertPathValidator.java:292) ~[na:1.8.0_171]
  at com.mysql.cj.protocol.ExportControlled$X509TrustManagerWrapper.checkServerTrusted(ExportControlled.java:273) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  ... 54 common frames omitted

Tiene dos opciones:

• Configurar SSL para la conexión con MySQL.
• Cambiar de “Strong Password Encryption for Authentication” a “Legacy Authentication Method”.

Nota

Algunas URL que pueden resultarle útiles si decide continuar con la configuración de SSL:

• https://dev.mysql.com/doc/connector-j/8.0/en/connector-j-reference-using-ssl.html
• https://dev.mysql.com/doc/refman/8.0/en/creating-ssl-rsa-files-using-mysql.html

En Windows es bastante fácil habilitar “Legacy Authentication Method”:

• Ejecute el instalador.
• Haga clic en reconfigurar junto a MySQL Server.
• Siga las pantallas del asistente y elija “Legacy Authentication Method”.

Driver JDBC antiguo

Si en su archivo de registro aparece el siguiente error:

Caused by: java.lang.NullPointerException: null
  at com.mysql.jdbc.ConnectionImpl.getServerCharset(ConnectionImpl.java:3005) ~[mysql-connector-java-5.1.38-bin.jar:5.1.38]
  at com.mysql.jdbc.MysqlIO.sendConnectionAttributes(MysqlIO.java:1916) ~[mysql-connector-java-5.1.38-bin.jar:5.1.38]
  at com.mysql.jdbc.MysqlIO.proceedHandshakeWithPluggableAuthentication(MysqlIO.java:1845) ~[mysql-connector-java-5.1.38-bin.jar:5.1.38]
  at com.mysql.jdbc.MysqlIO.doHandshake(MysqlIO.java:1215) ~[mysql-connector-java-5.1.38-bin.jar:5.1.38]
  at com.mysql.jdbc.ConnectionImpl.coreConnect(ConnectionImpl.java:2255) ~[mysql-connector-java-5.1.38-bin.jar:5.1.38]
  at com.mysql.jdbc.ConnectionImpl.connectWithRetries(ConnectionImpl.java:2106) ~[mysql-connector-java-5.1.38-bin.jar:5.1.38]
  ... 41 common frames omitted

Está utilizando una versión incorrecta del driver para conectarse a MySQL Server 8; debe realizar los siguientes cambios:

• Sustituya mysql-connector-java-5.1.38-bin.jar en su $TOMCAT_HOME/libs por el último driver JDBC para MySQL Server 8. Puede obtener el último driver en https://dev.mysql.com/downloads/connector/j/.
• Cambie la configuración de conexión de MySQL establecida en su $TOMCAT_HOME/conf/server.xml; debería quedar algo como:

Precaución

En la última versión del driver JDBC de MySQL, el nombre de la clase com.mysql.jdbc.Driver ha cambiado a com.mysql.cj.jdbc.Driver.

<Resource name="jdbc/OpenKMDS" auth="Container" type="javax.sql.DataSource"
            maxTotal="100" maxIdle="30" maxWaitMillis="10000" validationQuery="select 1"
            username="openkm" password="openkm" driverClassName="com.mysql.cj.jdbc.Driver"
            url="jdbc:mysql://localhost:3306/okmdb?autoReconnect=true&amp;useUnicode=true&amp;characterEncoding=UTF8>

The server time zone value is unrecognized

Si en su archivo de registro aparece el siguiente error u otro similar:

Caused by: com.mysql.cj.exceptions.InvalidConnectionAttributeException: The server time zone value 'CEST' is unrecognized or represents more than one time zone. You must configure either the server or JDBC driver (via the serverTimezone configuration property) to use a more specifc time zone value if you want to utilize time zone support.
  at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method) ~[na:1.8.0_171]
  at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:62) ~[na:1.8.0_171]
  at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45) ~[na:1.8.0_171]
  at java.lang.reflect.Constructor.newInstance(Constructor.java:423) ~[na:1.8.0_171]
  at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:59) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.exceptions.ExceptionFactory.createException(ExceptionFactory.java:83) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.util.TimeUtil.getCanonicalTimezone(TimeUtil.java:128) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.protocol.a.NativeProtocol.configureTimezone(NativeProtocol.java:2201) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.protocol.a.NativeProtocol.initServerSession(NativeProtocol.java:2225) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.jdbc.ConnectionImpl.initializePropsFromServer(ConnectionImpl.java:1391) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  at com.mysql.cj.jdbc.ConnectionImpl.connectWithRetries(ConnectionImpl.java:895) ~[mysql-connector-java-8.0.11.jar:8.0.11]
  ... 45 common frames omitted

Parece que el último driver JDBC de MySQL tiene algún problema con la configuración de zona horaria de su sistema operativo; una solución rápida es indicar la zona horaria del servidor, por ejemplo serverTimezone=UTC:

<Resource name="jdbc/OpenKMDS" auth="Container" type="javax.sql.DataSource"
            maxTotal="100" maxIdle="30" maxWaitMillis="10000" validationQuery="select 1"
            username="openkm" password="openkm" driverClassName="com.mysql.cj.jdbc.Driver"
            url="jdbc:mysql://localhost:3306/okmdb_test?autoReconnect=true&amp;useUnicode=true&amp;characterEncoding=UTF8&amp;serverTimezone=UTC"/>

Problema al conectar con su base de datos

Si obtiene un error como este:

Caused by: com.mysql.jdbc.exceptions.jdbc4.MySQLNonTransientConnectionException: Public Key Retrieval is not allowed

Debe modificar su archivo conf/server.xml y añadir a la URL de JDBC lo siguiente: allowPublicKeyRetrieval=true.

<Resource name="jdbc/OpenKMDS" auth="Container" type="javax.sql.DataSource"
            maxTotal="100" maxIdle="30" maxWaitMillis="10000" validationQuery="select 1"
            username="openkm" password="openkm" driverClassName="com.mysql.cj.jdbc.Driver"
            url="jdbc:mysql://localhost:3306/okmdb_test?allowPublicKeyRetrieval=true&autoReconnect=true&amp;useUnicode=true&amp;characterEncoding=UTF8&amp;serverTimezone=UTC"/>
